Name: Tiankang Magnetic Float Level Gauge
Availability: InStock

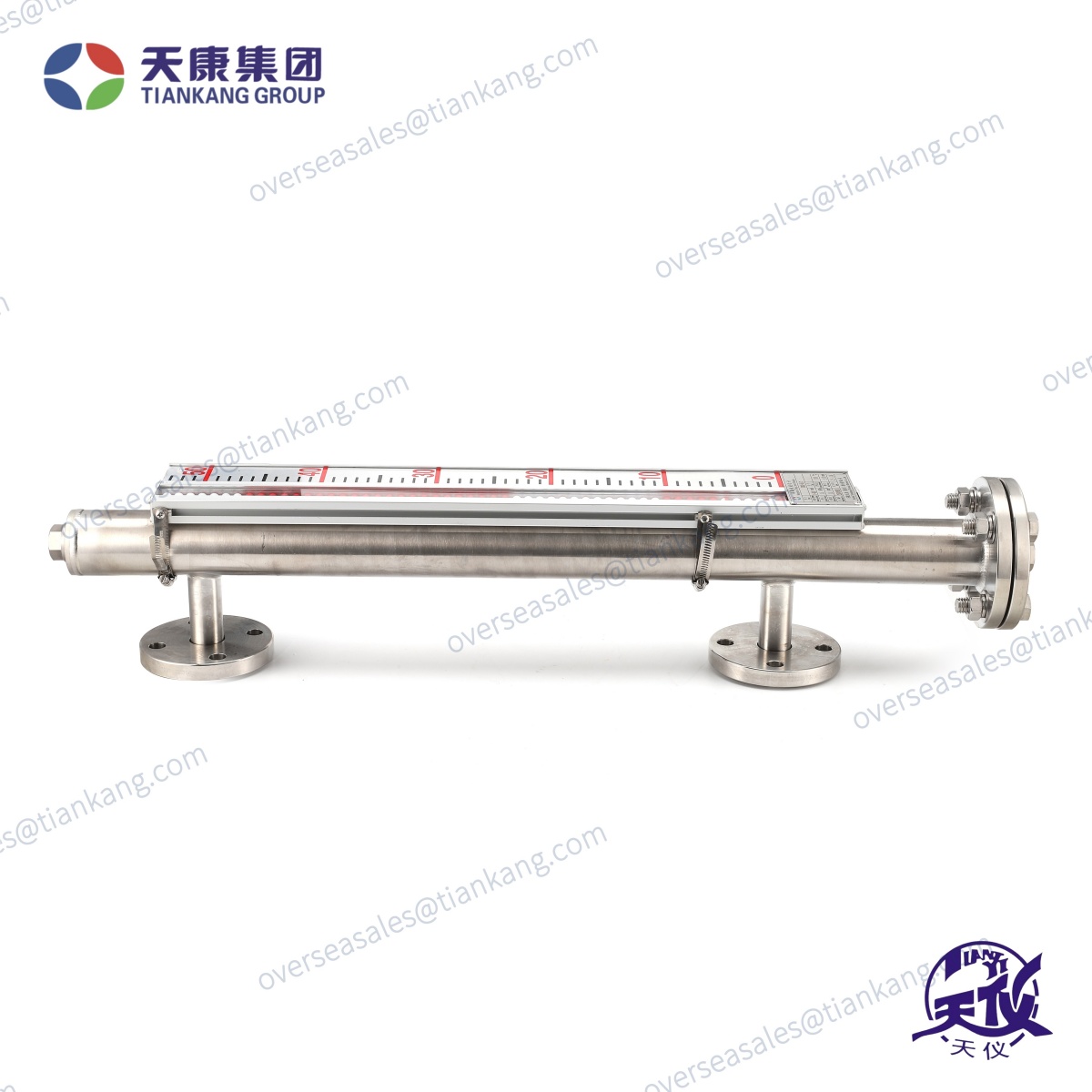

Tiankang Magnetic Float Level Gauge

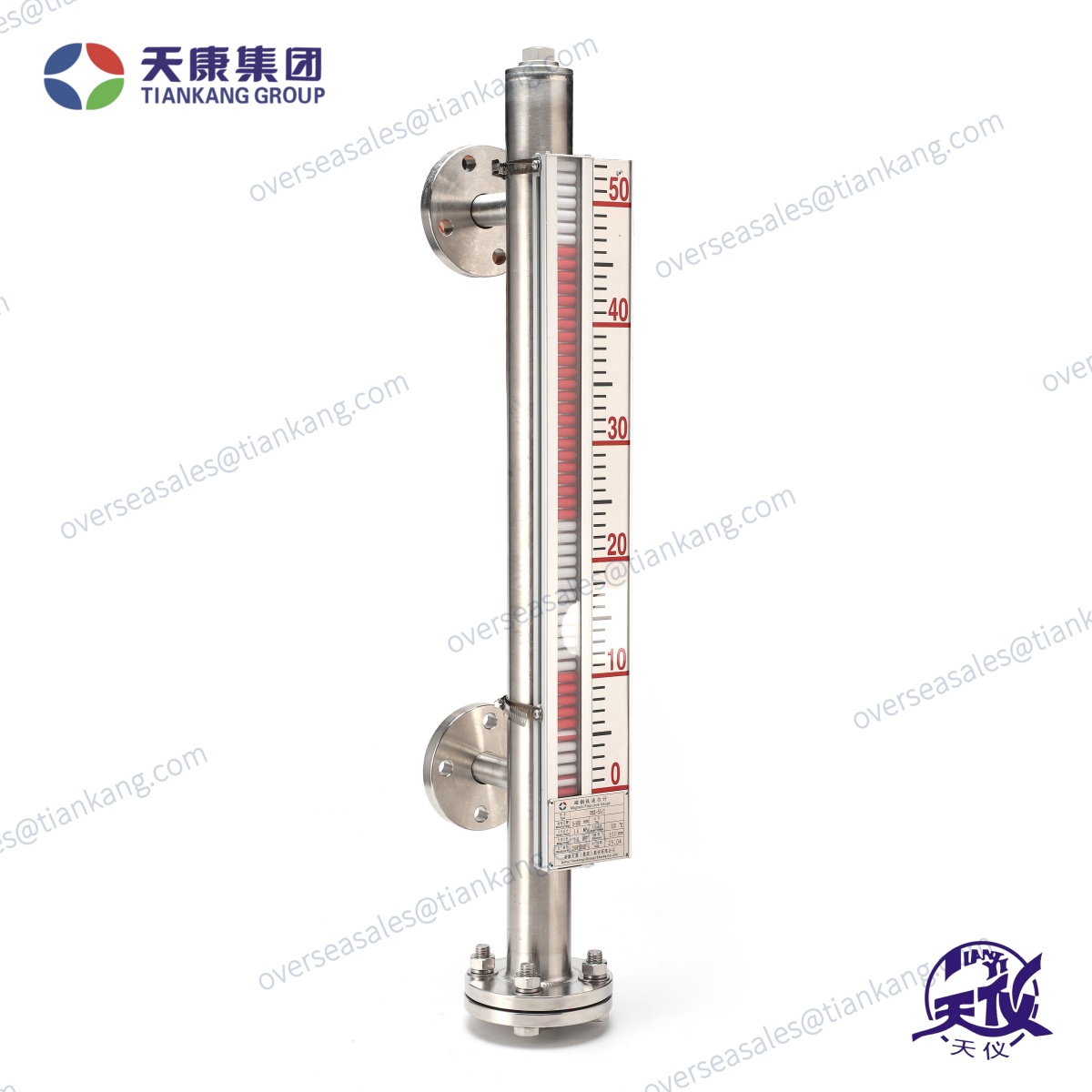

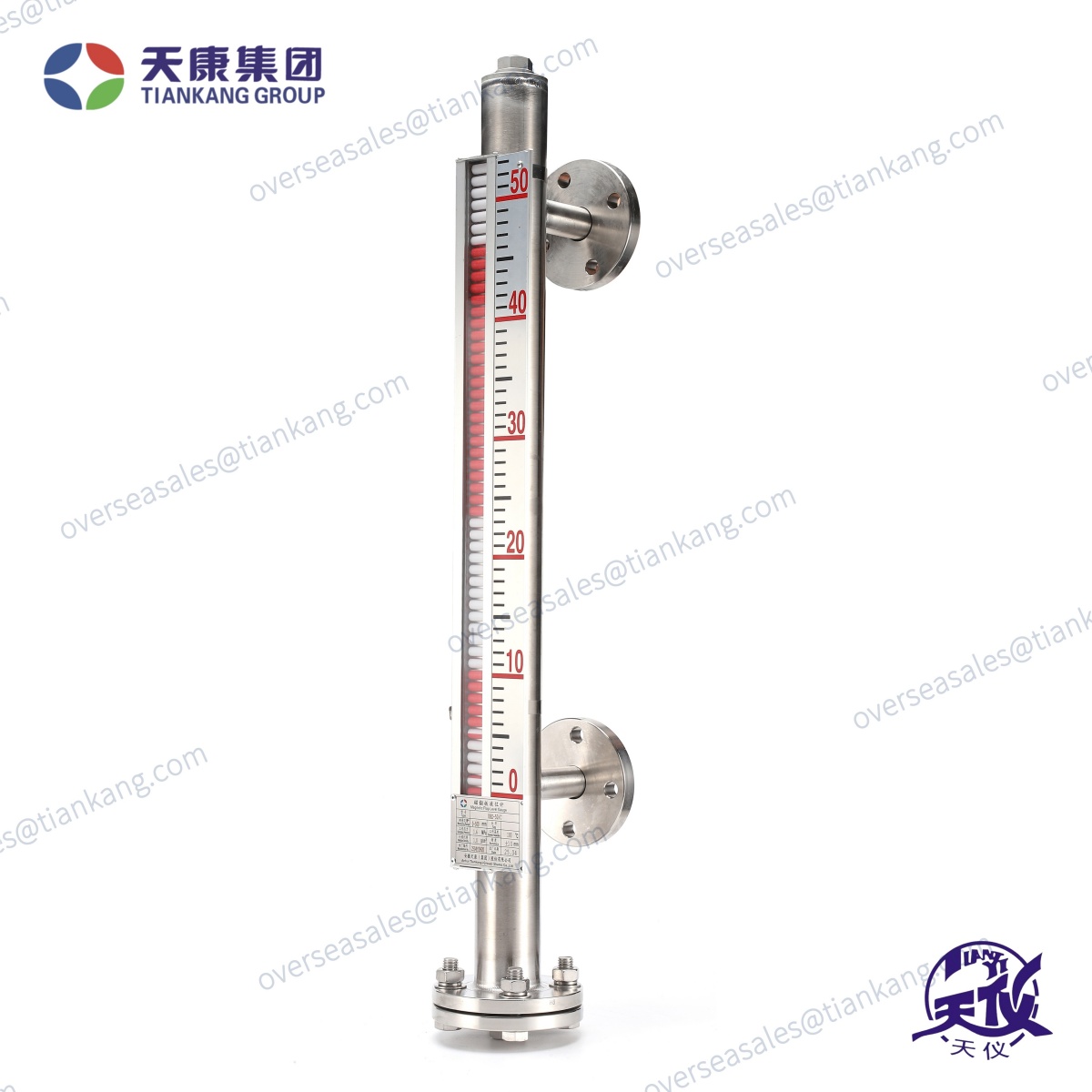

Tiankang magnetic float level gauge is an instrument used for measuring liquid levels, widely applied in industries such as chemicals, petroleum, food, and pharmaceuticals. Its working principle relies on a magnetic float inside a float chamber that moves with changes in liquid level, simultaneously altering the orientation of a flip board to display the liquid level.

Product Details

Overview

Tiankang magnetic float level gauge is a type of float-based metal pipe onsite indicating level gauge. This product can achieve high sealing, leak prevention, and safe and reliable measurement of liquid levels under high temperature, high pressure, high viscosity, and strong corrosive conditions. It offers a complete measurement process with no blind spots, a clear display, and intuitive readings. Tiankang magnetic float level gauge is widely used in various industries, including power generation, petroleum, chemicals, metallurgy, environmental protection, shipping, construction, and food, for liquid level measurement and control during production processes.

Technical Specifications

Parameters	Specifications

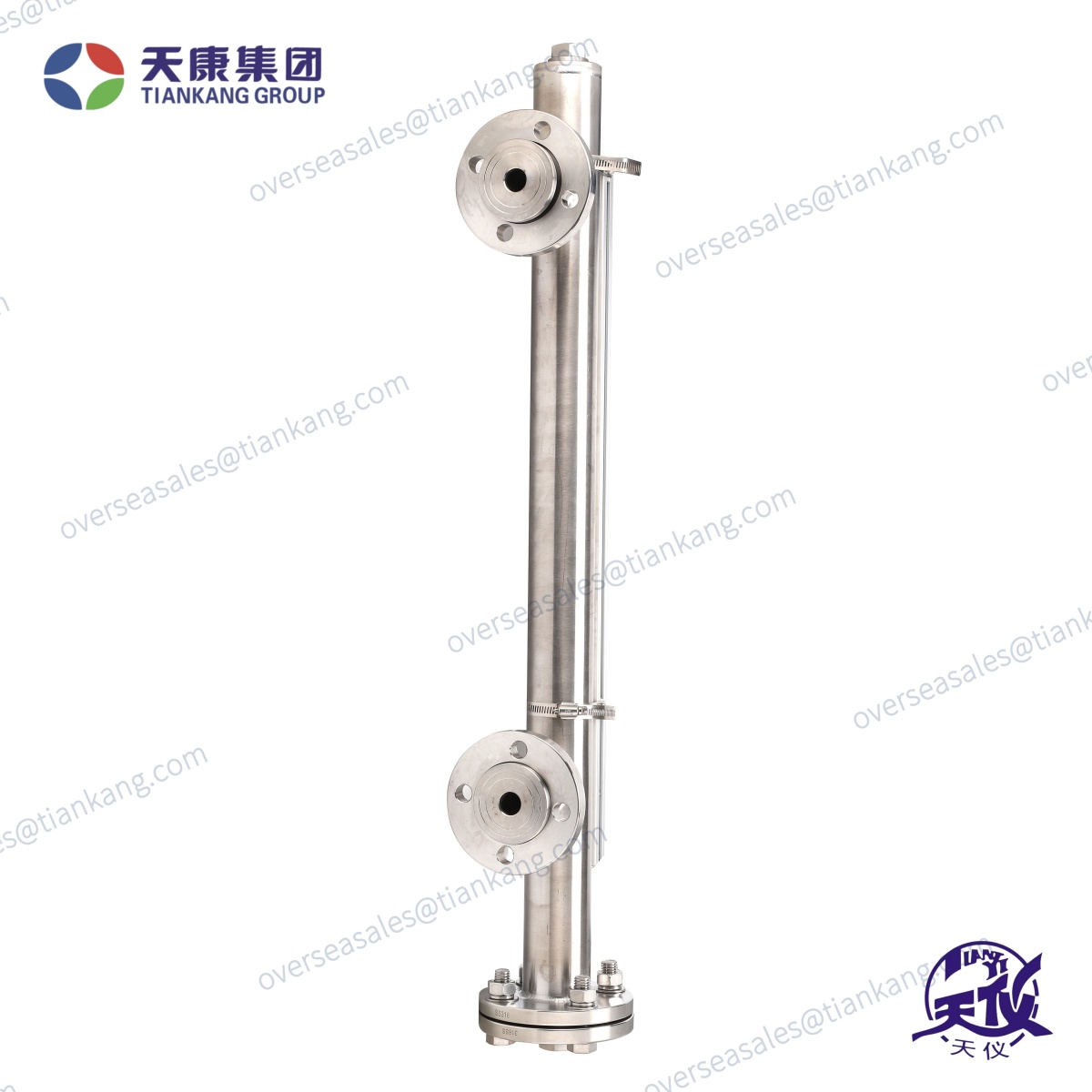

Installation type	Side-side type; Top; others
Body material	SS304; SS316L; PP; PVC; 304/316+PTFE; others

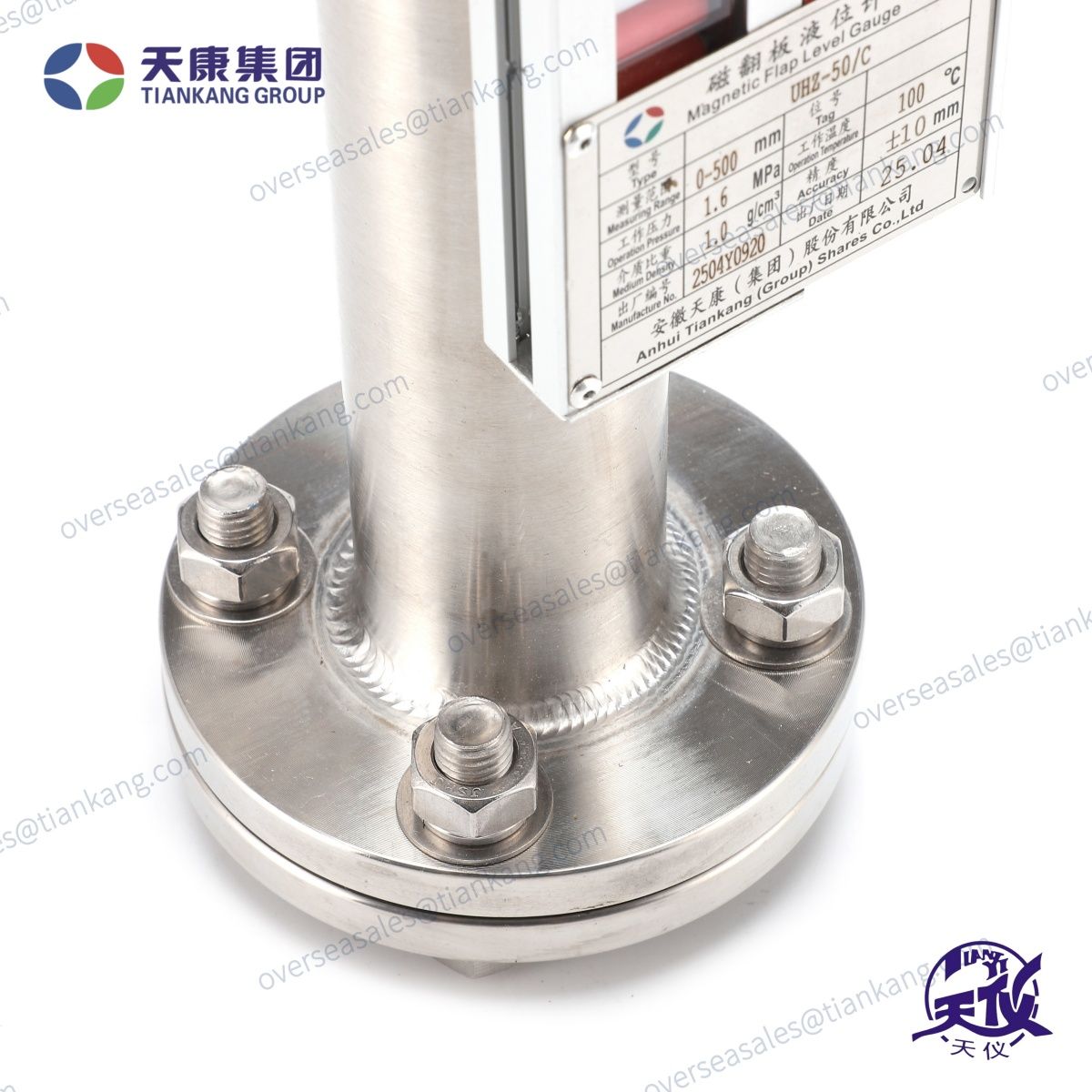

Drain flange	Drain flange with drain bolt; Drain flange with valve
Matched transmitter	No matched transmitter; Junction box type with transmitter
Attachment selection	Steam tracing; Switch; others

Applications

Chemical production
Oil tank level monitoring
Food and beverage industry
Pharmaceutical industry
Water treatment facilities

Advantages

Strong Corrosion Resistance: Many magnetic float level gauges are made from stainless steel or plastic, allowing them to withstand various corrosive liquids, making them suitable for diverse applications.

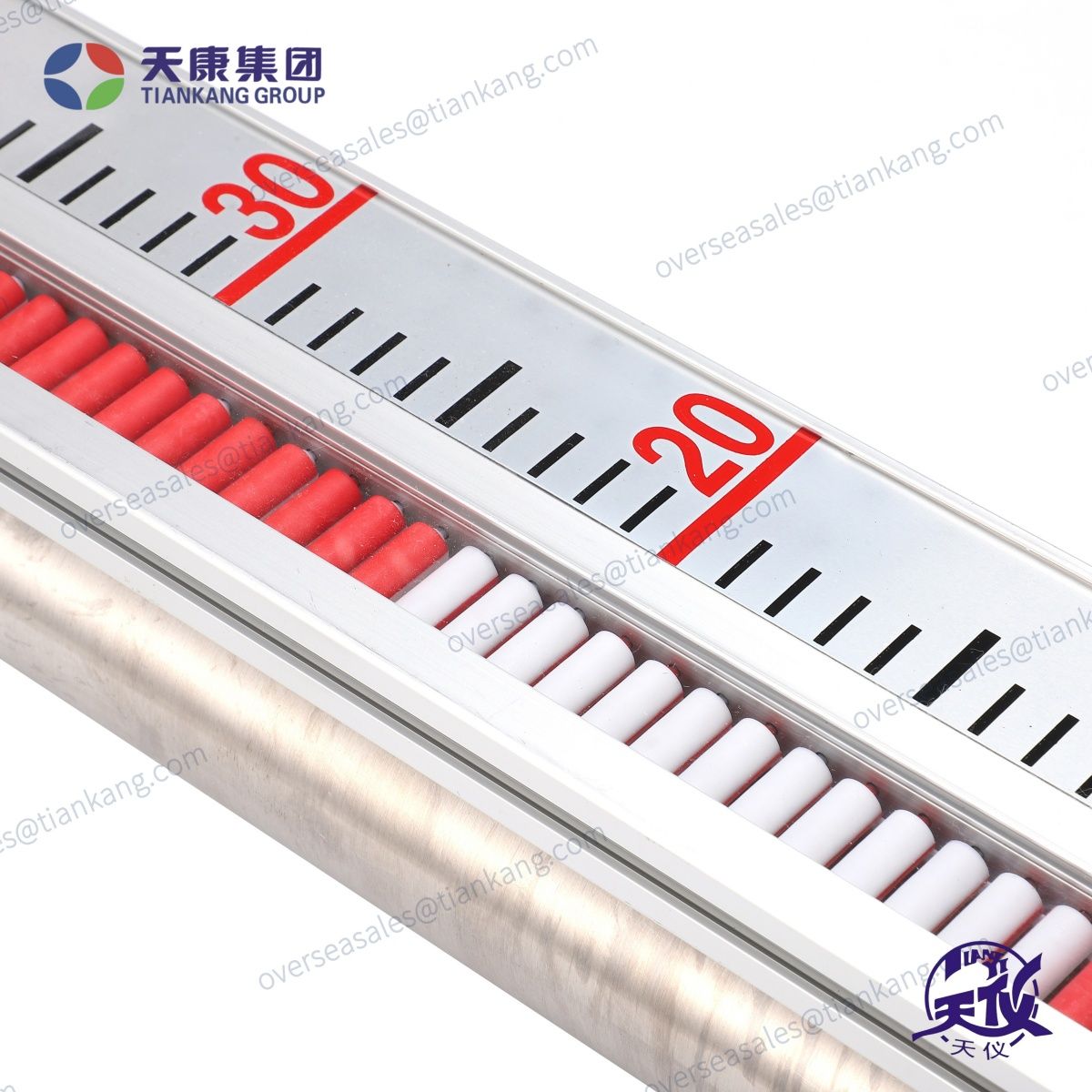

Intuitive Visualization: Their design features a color-flipping display that changes color as the liquid level varies, facilitating real-time monitoring for operators.
Wide Applicability: These gauges can measure a variety of liquids, including water, oil, and chemicals, demonstrating strong versatility.
Unaffected by Liquid Density Changes: Unlike pressure-based level gauges, magnetic float level gauges maintain stable measurements regardless of changes in liquid density.
