Name: Tiankang 80GHz Radar Level Transmitter
Availability: InStock

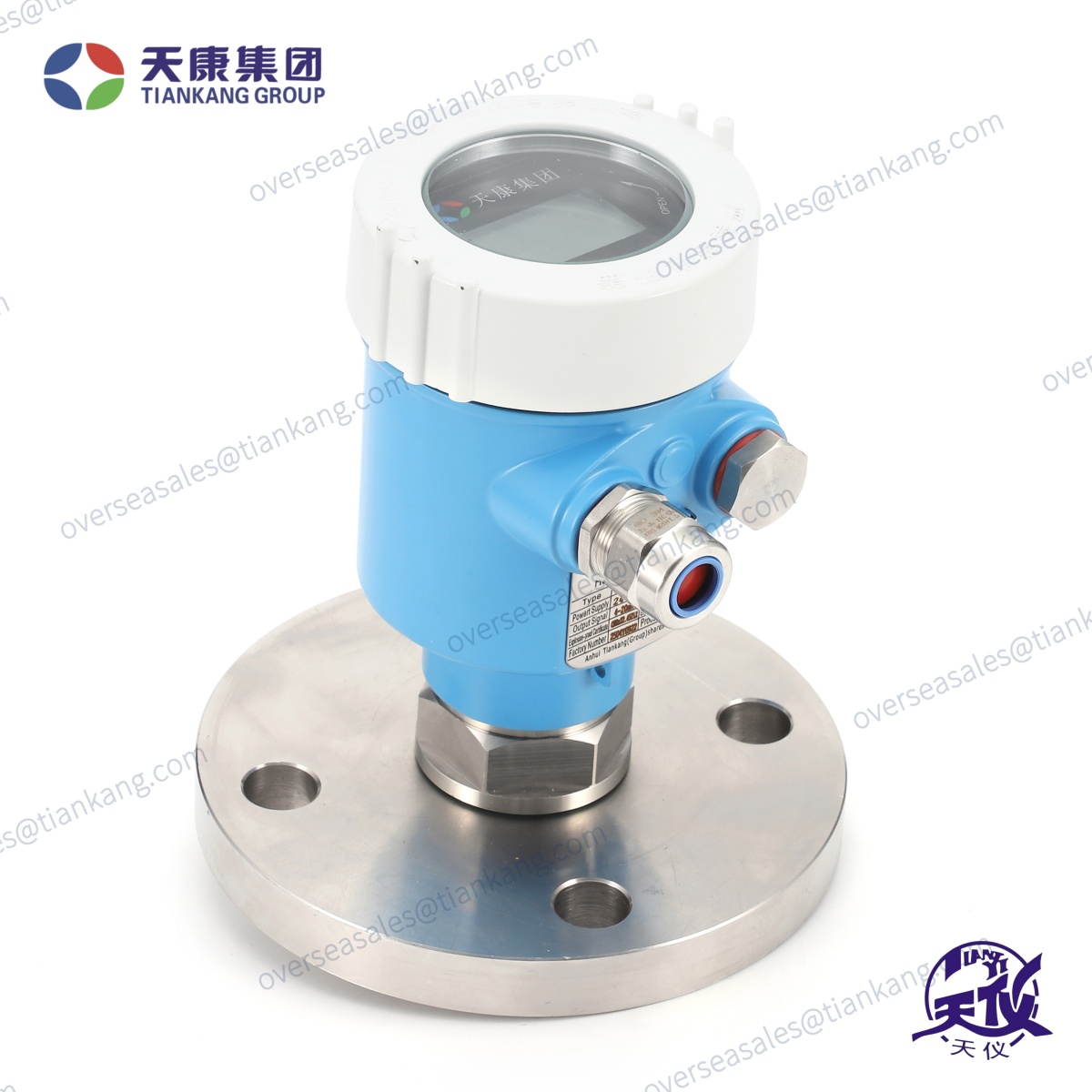

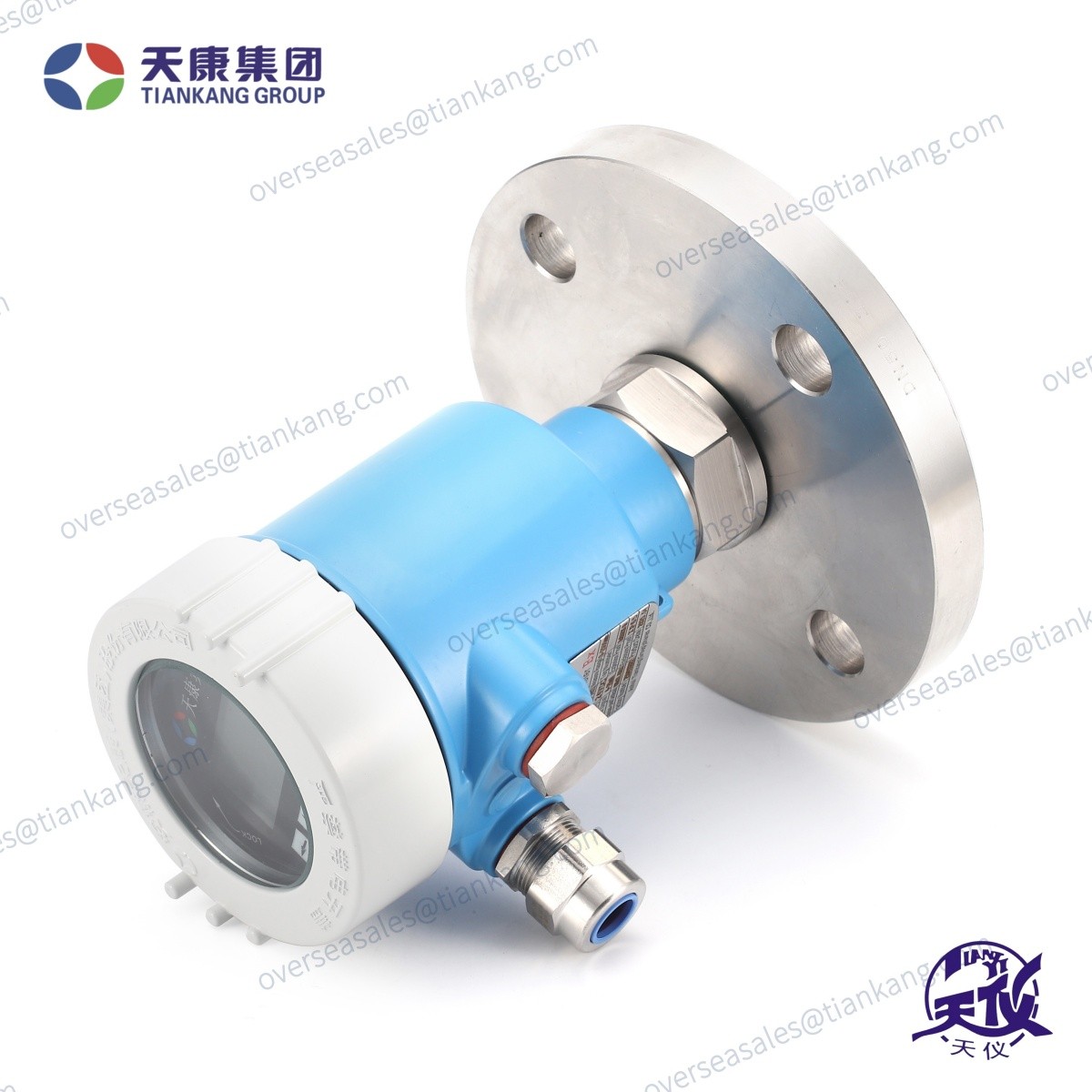

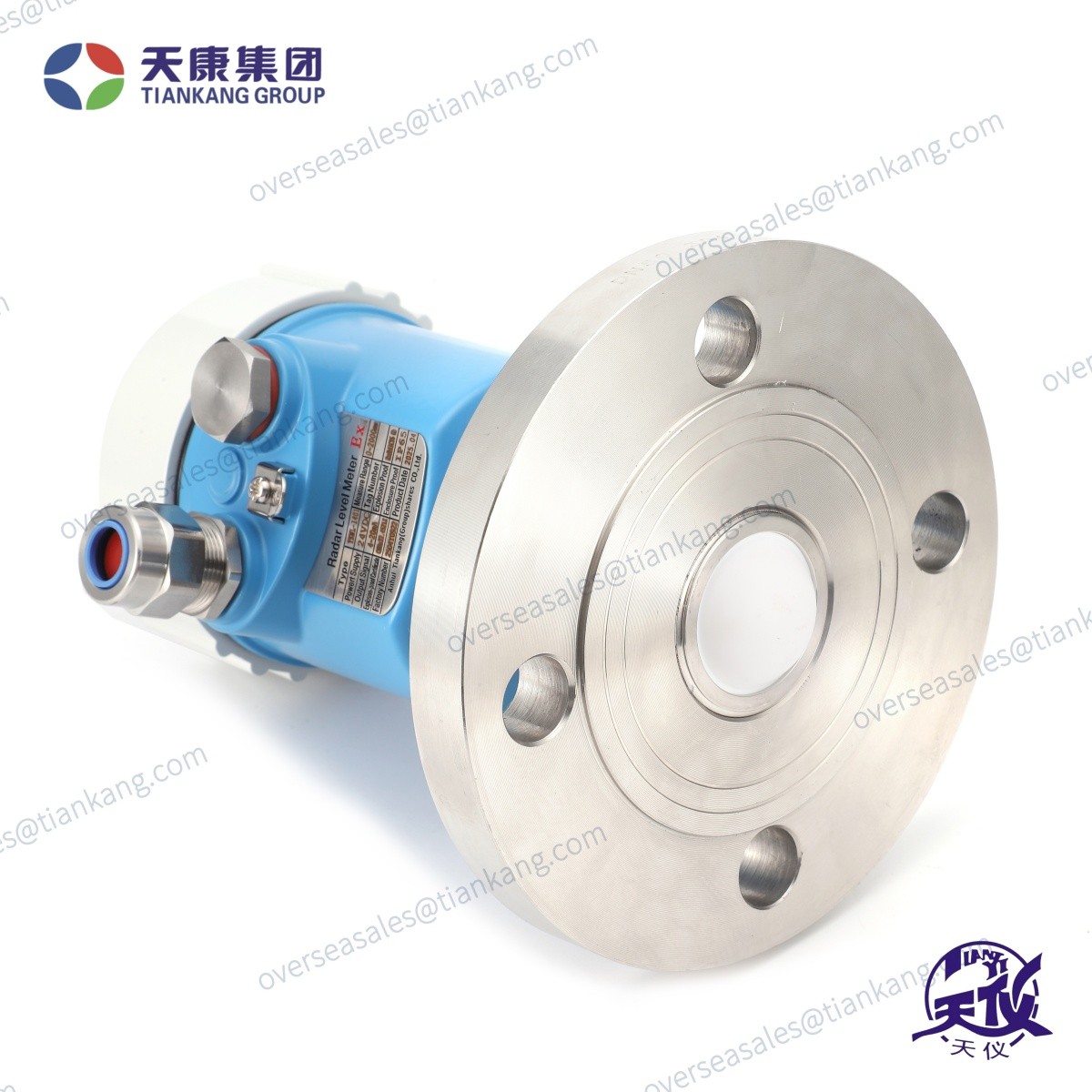

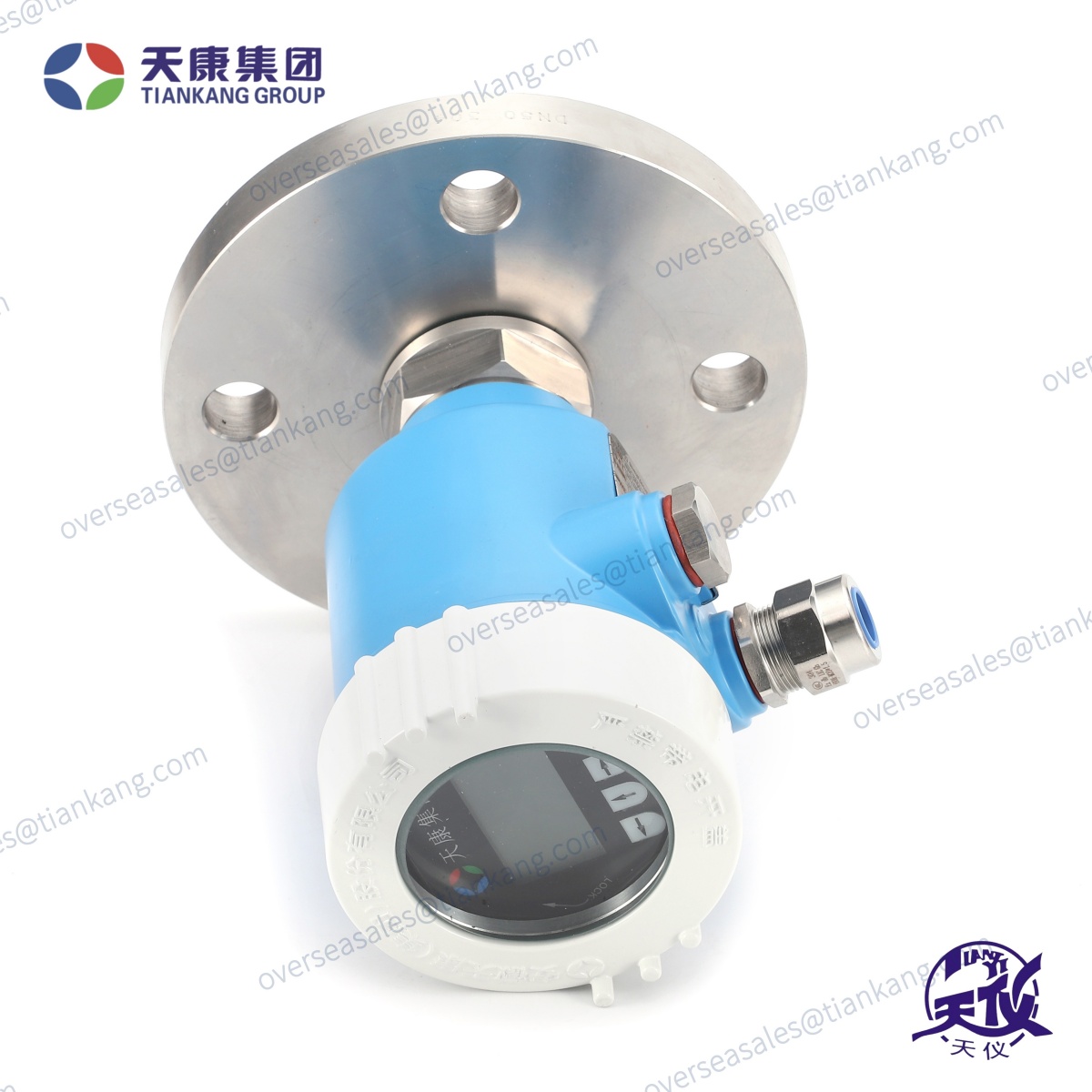

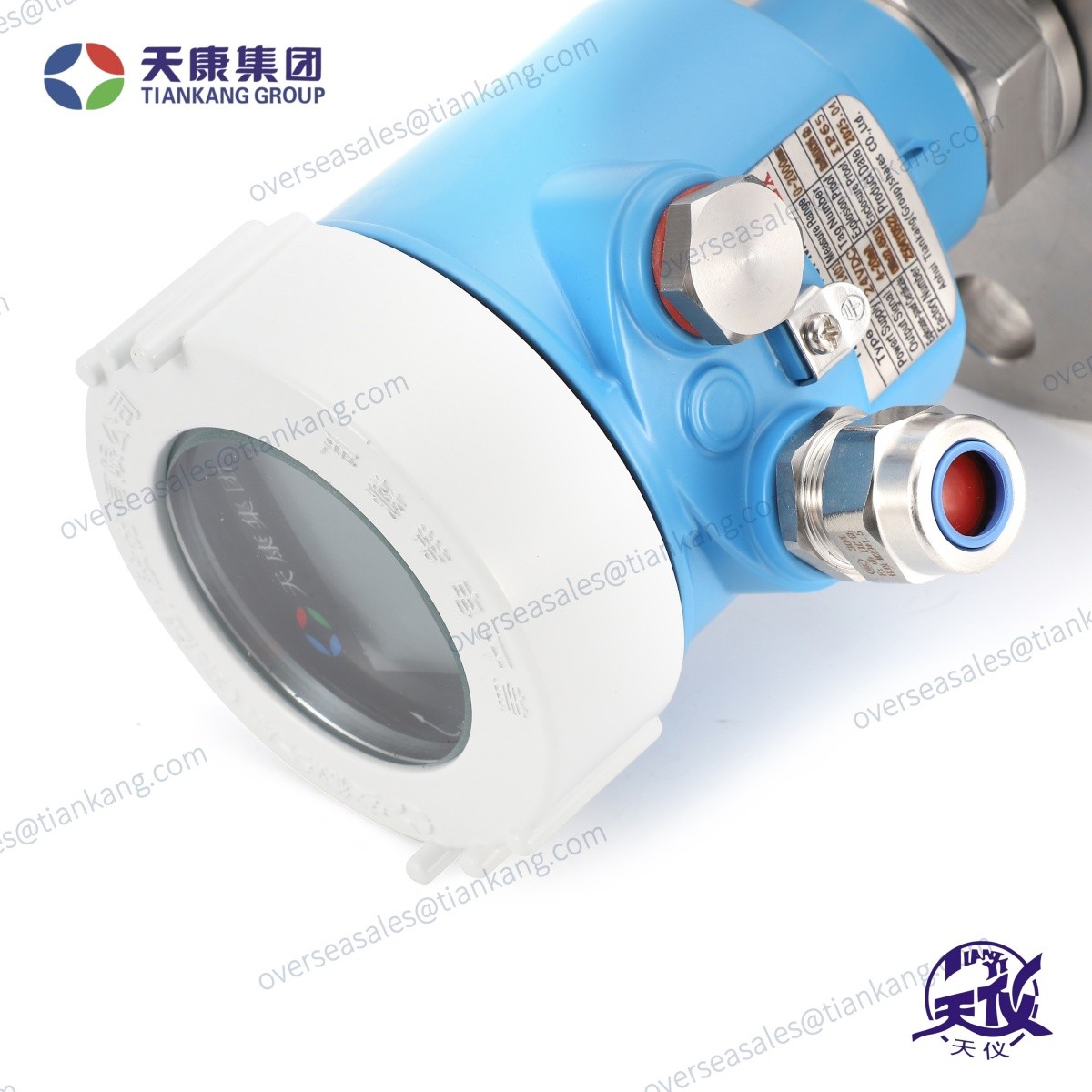

Tiankang 80GHz Radar Level Transmitter

Tiankang 80GHz Radar Level Transmitter supports both four-wire and two-wire applications, with an output of a 4-20 mA analog signal and a maximum measurement distance of up to 120 meters. Due to its higher operating frequency and shorter wavelength, it is particularly suitable for solid applications. The instrument employs a lens-based method to transmit and receive electromagnetic waves, providing unique advantages in high-dust and harsh temperature environments. The device offers either flanged or threaded mounting options for convenient and easy installation.

Product Details

Overview

Tiankang 80GHz Radar Level Transmitter is a high-performance measurement device designed for monitoring liquid and solid material levels. It offers high measurement accuracy due to its short wavelength and can measure distances up to 120 meters. This transmitter is suitable for challenging environments, including high dust and extreme temperatures, and features flexible mounting options (flanged or threaded) for easy installation.

Technical Specification

Parameters	Specifications
Accuracy	±1mm
Process temperature	-40~100℃/ -40~1000℃
Process pressure	atm./ -0.1~1mpa
Output signal	4-20mA/ Hart/ Modbus
Process connection	Thread/ Flange/ Bracket
Explosion-proof degree	Ex ia; Ex d

Applications

Chemical Industry: Used for measuring the liquid levels of various chemicals, including acids, bases, and solvents, with strong anti-interference capabilities and broad adaptability.
Oil and Gas: Monitors the liquid levels in storage tanks, separators, and other devices for oil and natural gas, ensuring safe and efficient operations.
Water Treatment: Real-time monitoring of liquid levels in water storage tanks and sedimentation tanks in wastewater treatment plants and drinking water facilities to ensure stable water quality and quantity.
Energy Sector: Monitors liquid levels in cooling towers, water tanks, and other liquid storage systems in power plants to ensure normal operation.

Advantages

Non-Contact Measurement: Utilizing radar technology allows for measurement without contacting the medium, reducing wear and the risk of contamination.
High Precision: The radar level meter provides high accuracy in liquid level measurement, maintaining precision even under extreme conditions.
Wide Adaptability: This device can be used for a variety of liquids, including viscous, corrosive liquids, and mixtures with solid particles, making it suitable for diverse working environments.
High Temperature and Pressure Resistance: The 80G radar level meter is typically capable of withstanding high temperatures and pressures, making it suitable for use in harsh industrial conditions.
Customization Options: Tiankang offers different configurations and options to meet the specific needs and applications of various industries.
