Name: Tiankang 26GHz Radar Level Transmitter
Availability: InStock

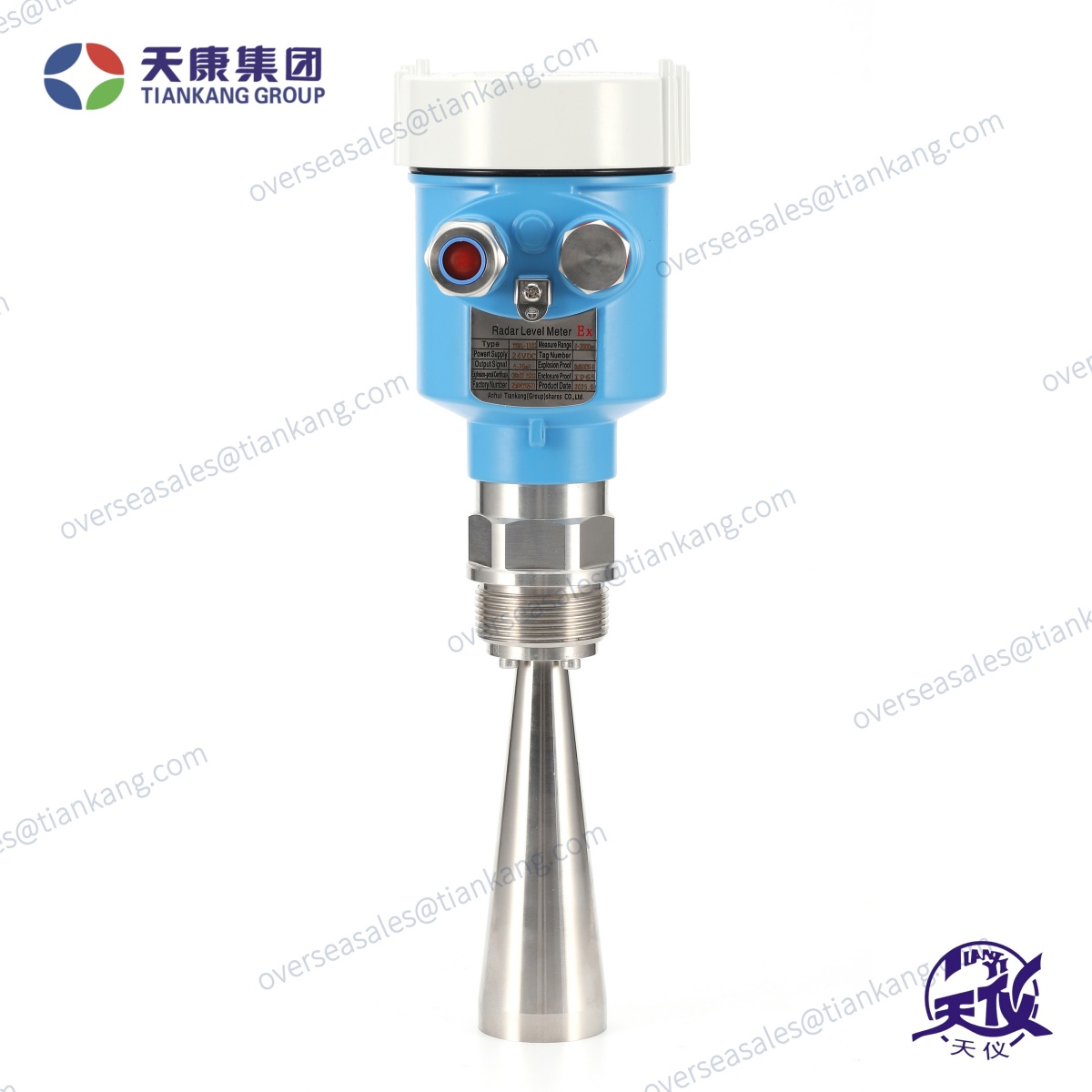

Tiankang 26GHz Radar Level Transmitter

Tiankang 26GHz Radar Level Transmitter outputs a 4~20mA analog signal, with a maximum measurement distance of up to 70m. The antenna has been further optimized, and a new fast microprocessor enables higher speed signal analysis and processing, allowing the instrument to be used in very complex measurement conditions, such as in reaction kettles or solid material bins.

Product Details

Overview

Tiankang 26GHz Radar Level Transmitter is a high-precision, non-contact liquid level measurement instrument widely used in industries such as chemicals, oil, and wastewater treatment. It measures the distance to the liquid surface by emitting and receiving microwave signals, making it suitable for various liquids, including corrosive and viscous ones. Tiankang 26GHz Radar Level Transmitter offers advantages like corrosion resistance, strong adaptability, and low maintenance costs, while operating reliably in high-temperature, high-pressure, and steam environments, making it an ideal choice for level monitoring.

Technical Specifications

Parameters	Specifications
Measuring range	0-70m
Accuracy	±3mm
Process temperature	-40~120℃/-40~250℃
Frequency	26GHz
Output signal	4-20mA/Hart/Modbus 485
Power supply	DC 24V/ AC 220V
Process connection	Flange/ Thread/ Bracket
Explosion-proof	Ex ia/ Ex d

Applications

Chemical Industry: It is employed to monitor the liquid levels of various chemical liquids, including corrosive and high-temperature substances, ensuring safety and production efficiency.
Oil and Gas: Used in oil storage tanks and natural gas collection and distribution systems to accurately monitor liquid levels, ensuring safety and optimizing transportation and storage.
Wastewater Treatment: In wastewater treatment plants, it monitors the liquid levels of sewage and waste, enhancing treatment efficiency and water resource management.
Food and Beverage: It is deployed in the production and storage of liquid food and beverages, ensuring hygiene and compliance with regulations.
Construction and Civil Engineering: It helps monitor liquid levels in concrete mixing and water usage on construction sites, facilitating smooth construction processes.

Advantages

High Accuracy: It provides high-resolution liquid level measurements, reducing errors.
Non-contact Measurement: By using radar signals to measure liquid levels, it avoids contact with the liquid, preventing corrosion and contamination issues.
Corrosion Resistance: Typically made from corrosion-resistant materials, it is suitable for measuring various chemical liquids.
Wide Application Range: It can monitor a variety of liquids, including viscous liquids and foams, meeting the needs of different industries.
Easy Installation: Compared to traditional level meters, the installation process is simpler, requiring no additional calibration or protective measures.
