Name: Tiankang Hongji Stainless Steel Unions Tube Fittings
Availability: InStock

Tiankang Hongji Stainless Steel Unions Tube Fittings

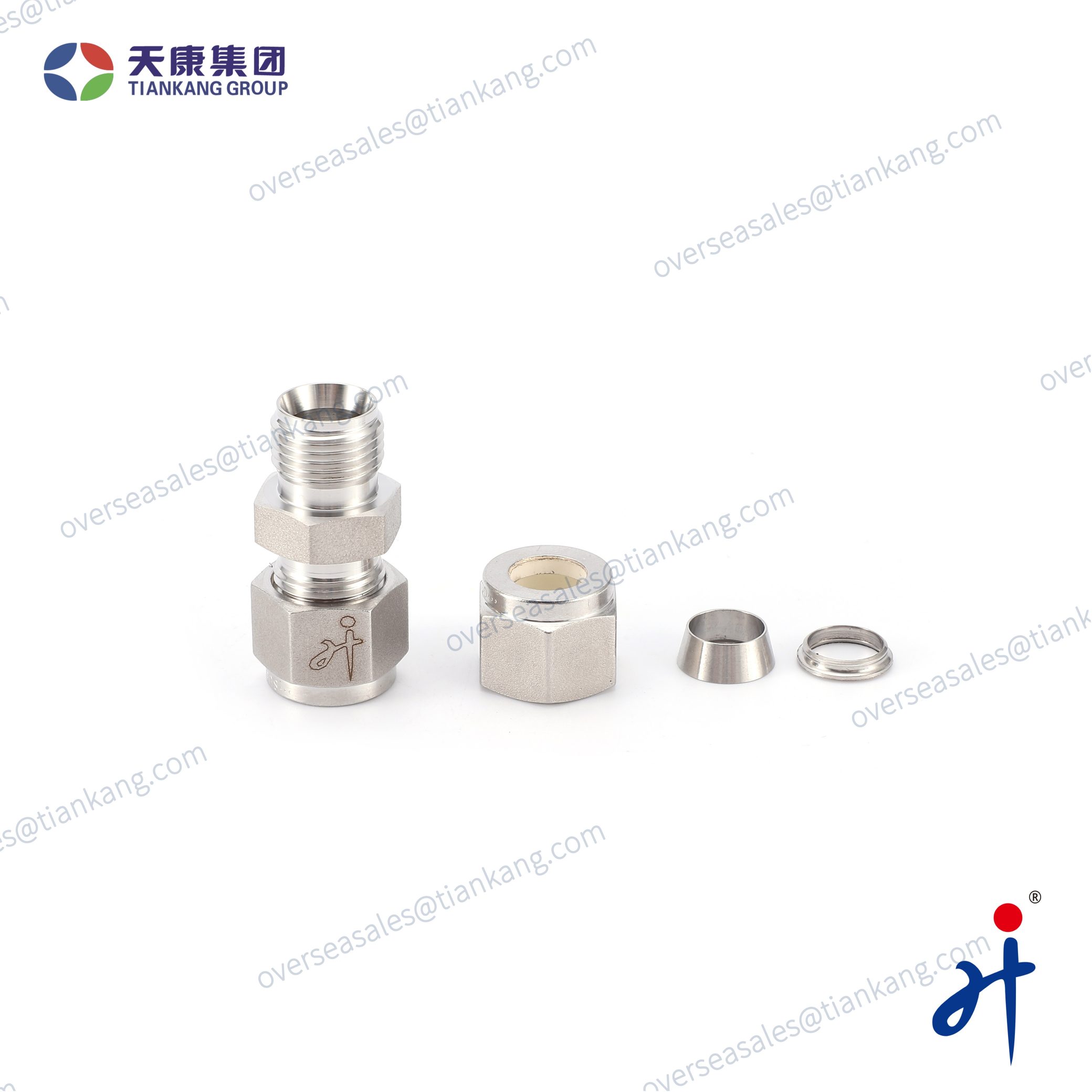

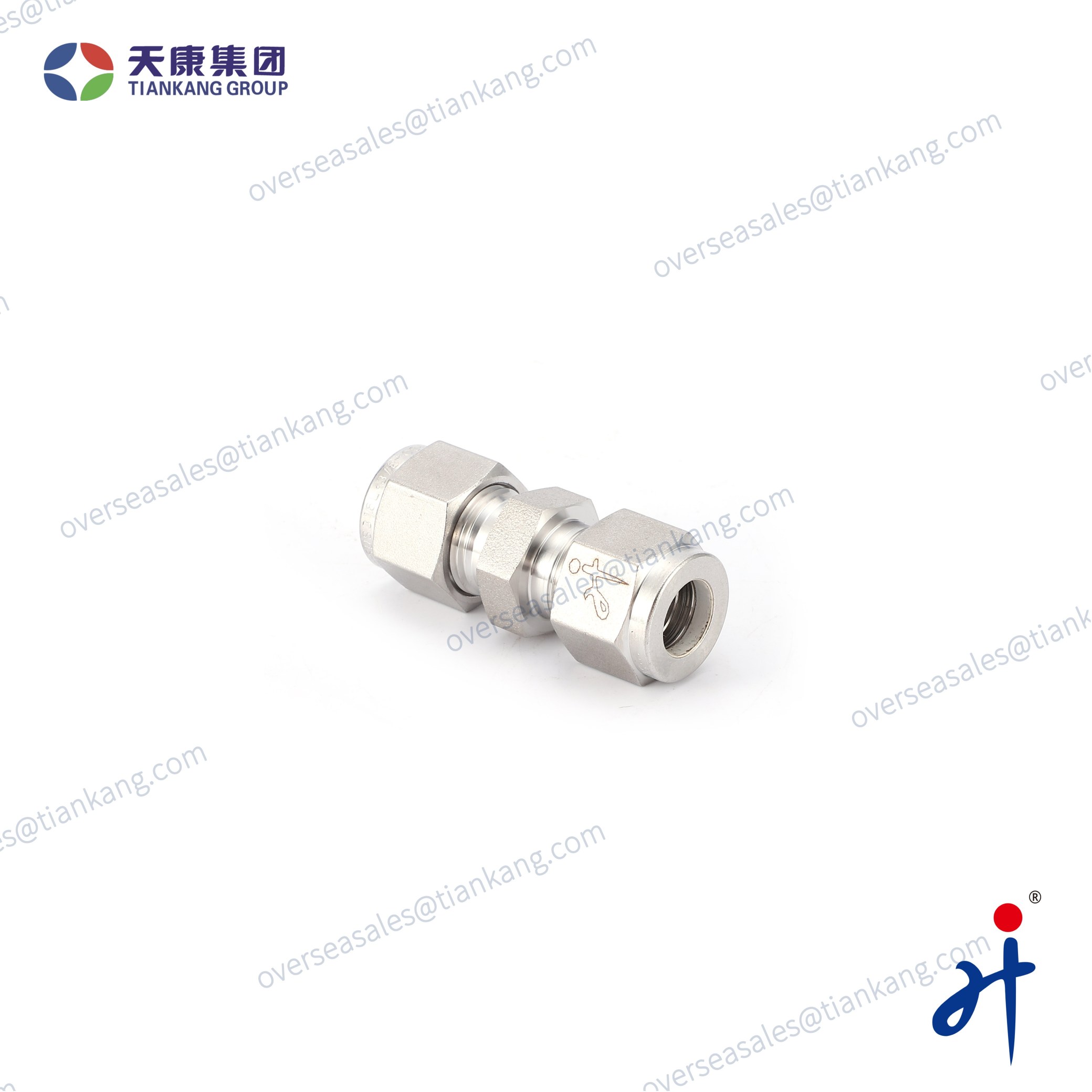

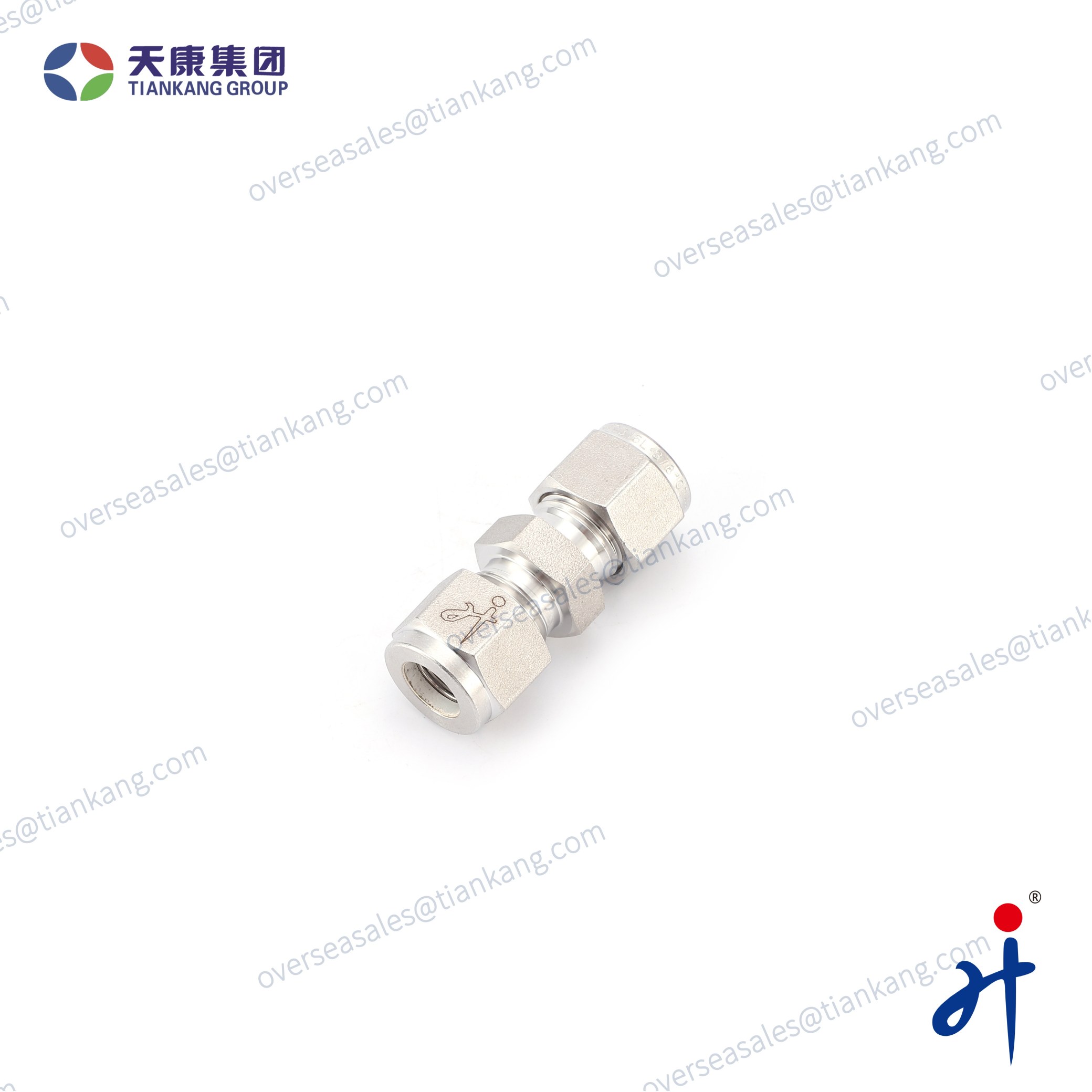

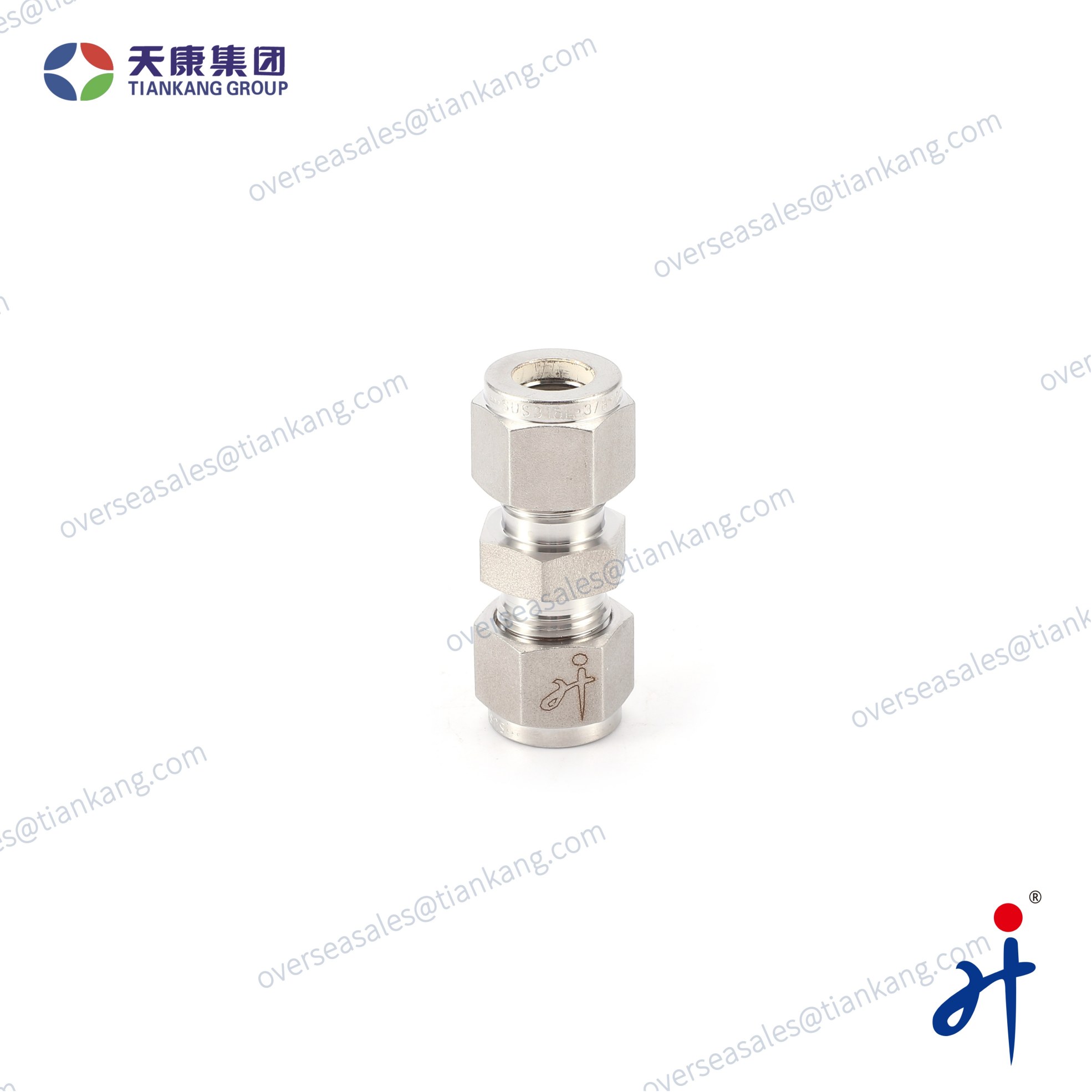

Tiankang Hongji stainless steel unions tube fittings are precision-engineered connectors designed for reliable and leak-free tube joining in demanding fluid and gas systems. Manufactured from high-quality stainless steel, these fittings offer excellent corrosion resistance, durability, and high-pressure performance. Their union design allows for easy assembly and disassembly without tube rotation, ensuring convenient maintenance and reinstallation.

Product Details

Overview:

Tiankang Hongji union connector commonly used in piping systems to connect two pipes of different sizes. It features two ends with different diameters, allowing for the transition between pipes of varying sizes while maintaining a secure and leak-proof connection. These fittings are typically used when a system requires the use of smaller or larger pipes without compromising the overall flow and pressure.

Technical Specifications:

Type	Union Connector with Ferrules Connection	Net Weight	0.16kg
Body Material	Stainless steel, alloy, etc.	Manufacturing Capacity	4000 pics/Month
Type of Connection	Ferrule	Warranty	1 year
Connection 1 Dimensions	1/2″	Connection 1 Type	Ferrule
Connection 2 Dimensions	1/2″	Connection 2 Type	Ferrule

Applications:

Fluid and Gas Systems: Connecting pipes of different sizes in fluid and gas distribution systems.
Water Treatment Plants: Union Connector used to adjust the pipe sizes while maintaining flow efficiency in treatment processes.
Chemical Processing: Provides flexible connections for pipes carrying different chemicals of various diameters.
HVAC Systems: Unions allows seamless integration of different pipe sizes in heating, ventilation, and air conditioning systems.
Oil and Gas Pipelines: Useful in pipelines where diameter changes are necessary without disrupting flow or pressure.

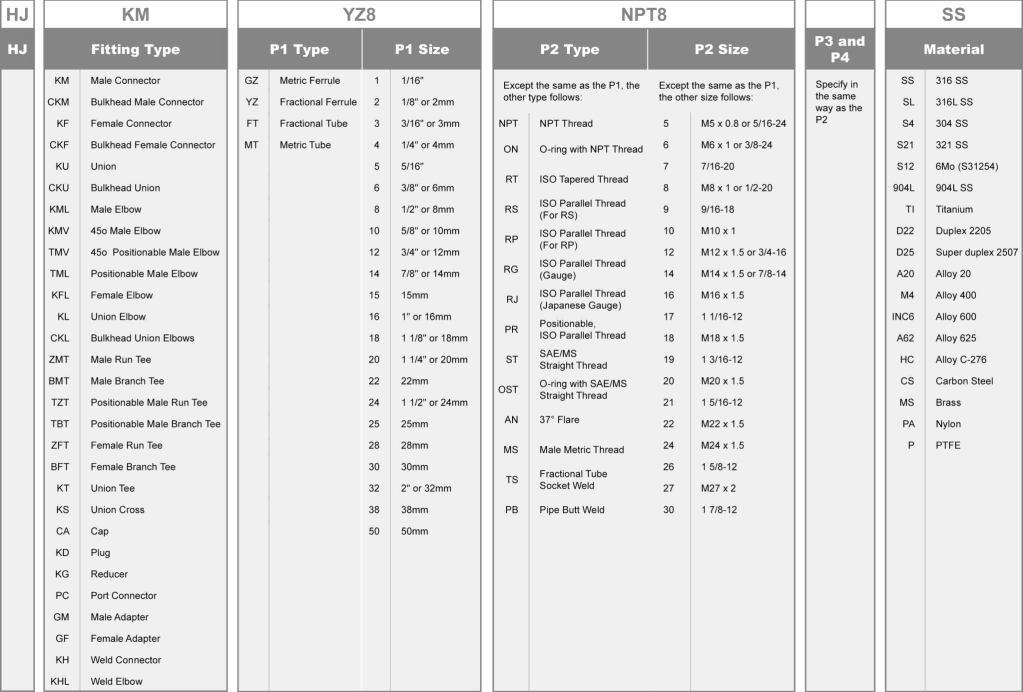

Ordering Number Description:

Note:

P1, P2, P3 and P4 shall be described in the following orders.
Ferrule – Tube – NPT Thread – ISO Tapered Thread – ISO Parallel Thread – SAE/MS Straight Thread – 37o Flare – Pipe Butt Weld – Fractional Tube Socket Weld – Others.
Describe in descending order as per size if the end connection types are the same.
Describe the end of P1 if all end connections are the same.
