Name: Tiankang Hongji Stainless Steel Female Connectors Tube Fittings
Availability: InStock

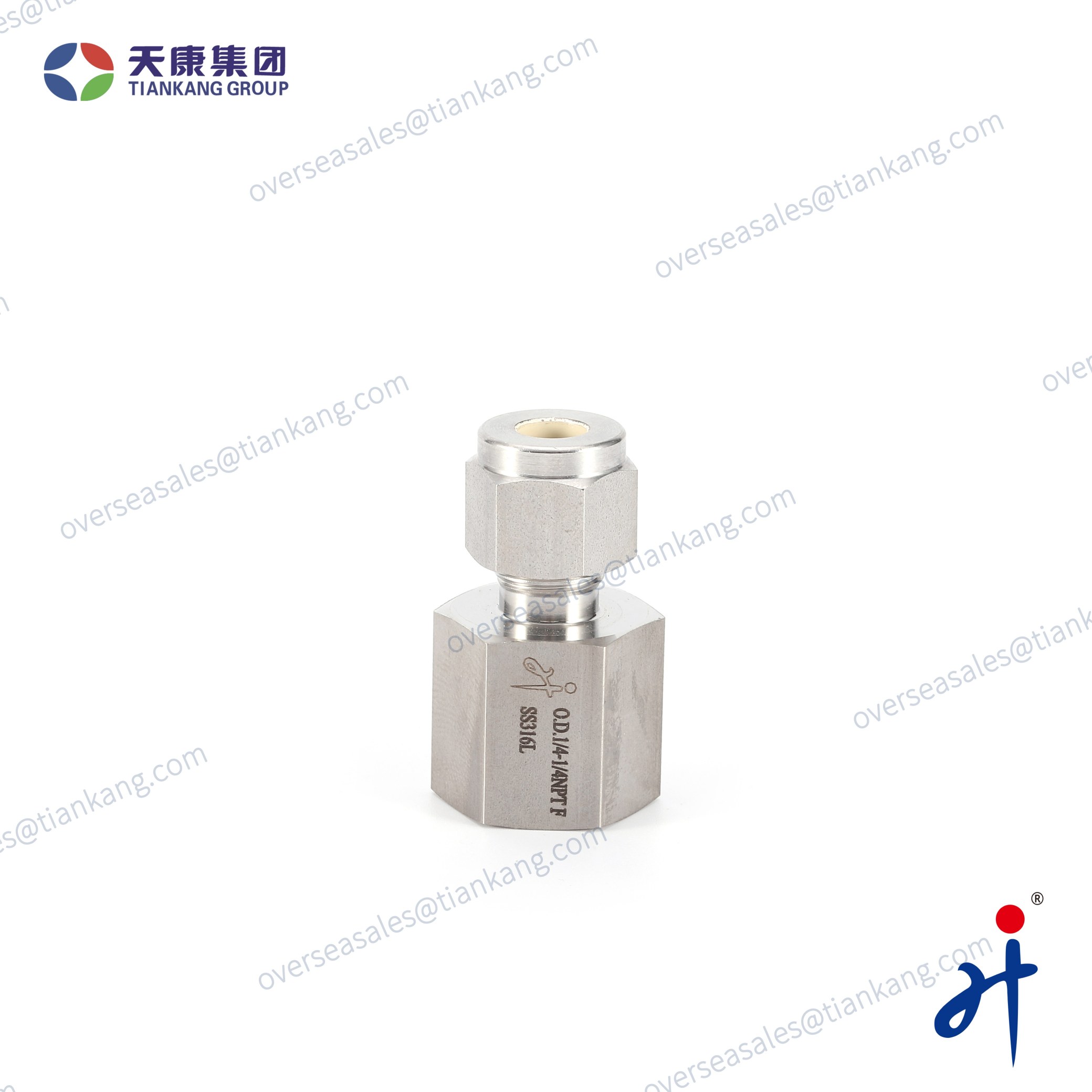

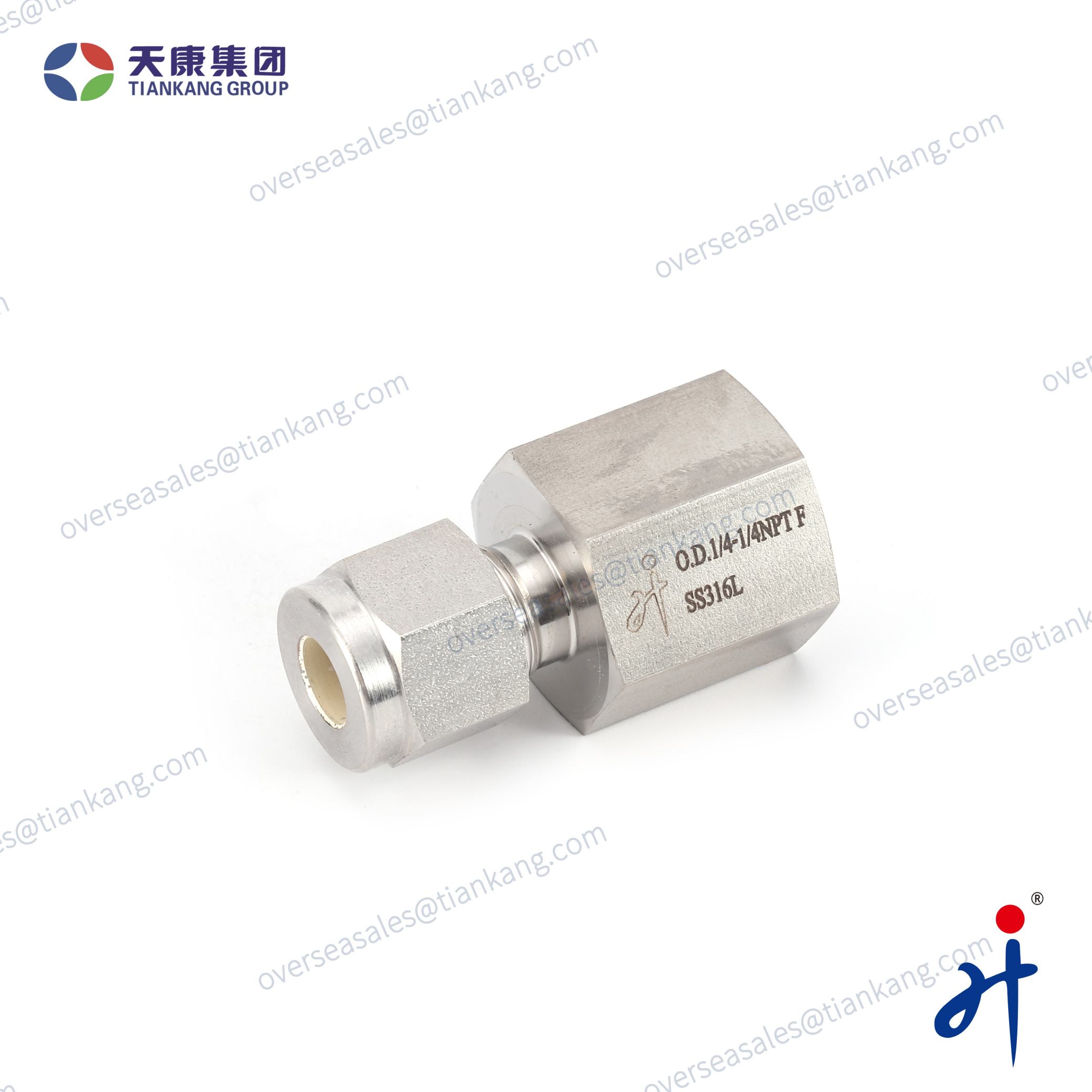

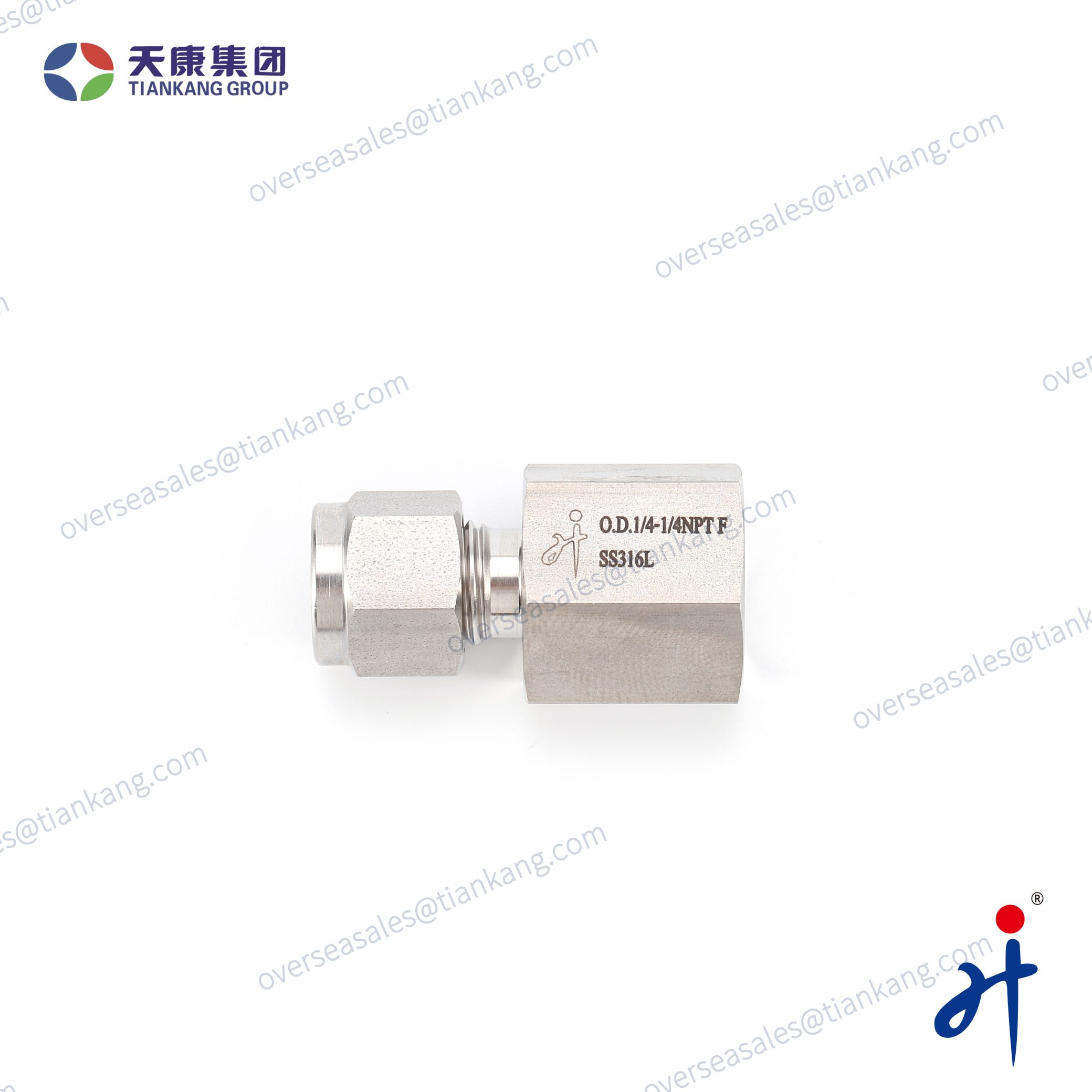

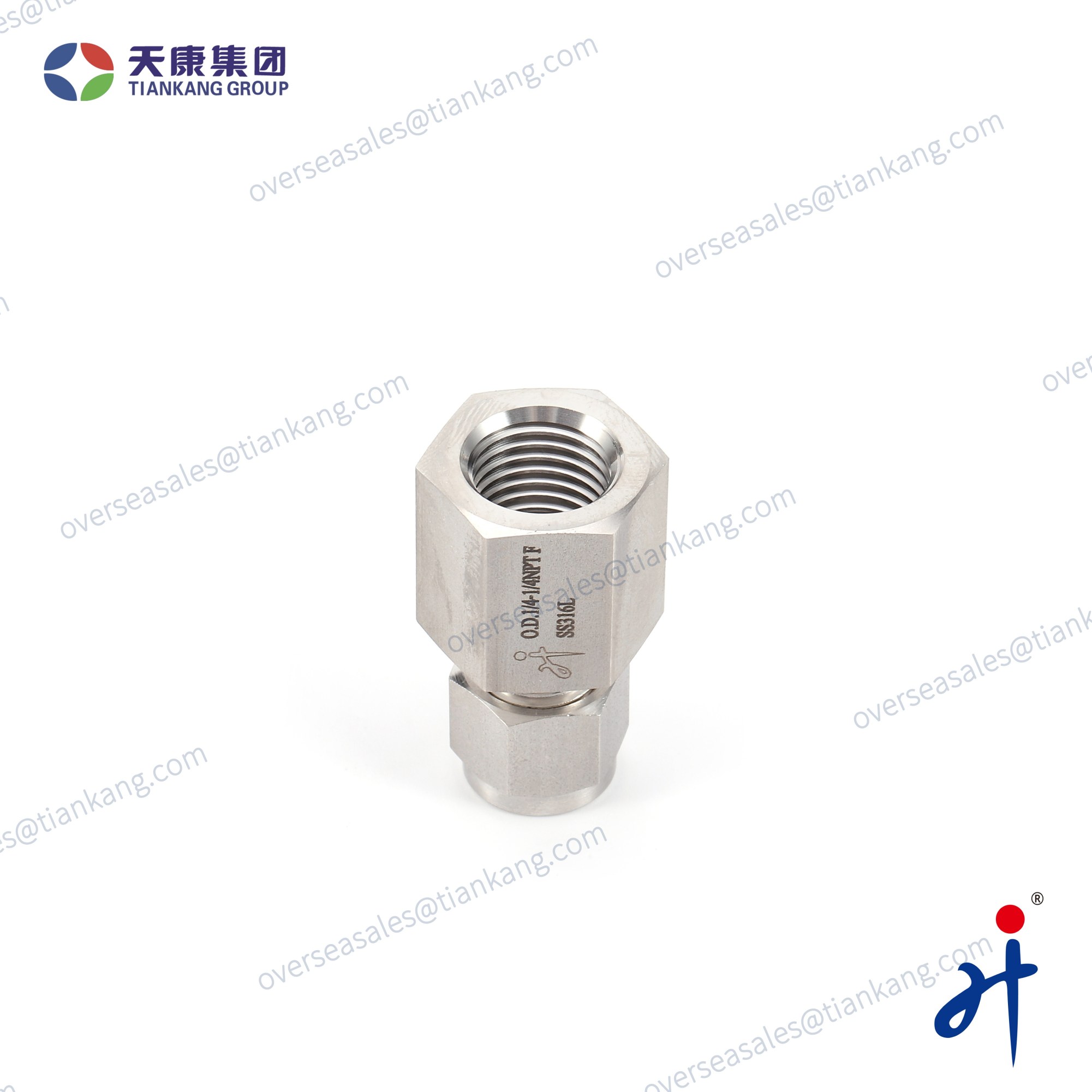

Tiankang Hongji Stainless Steel Female Connectors Tube Fittings

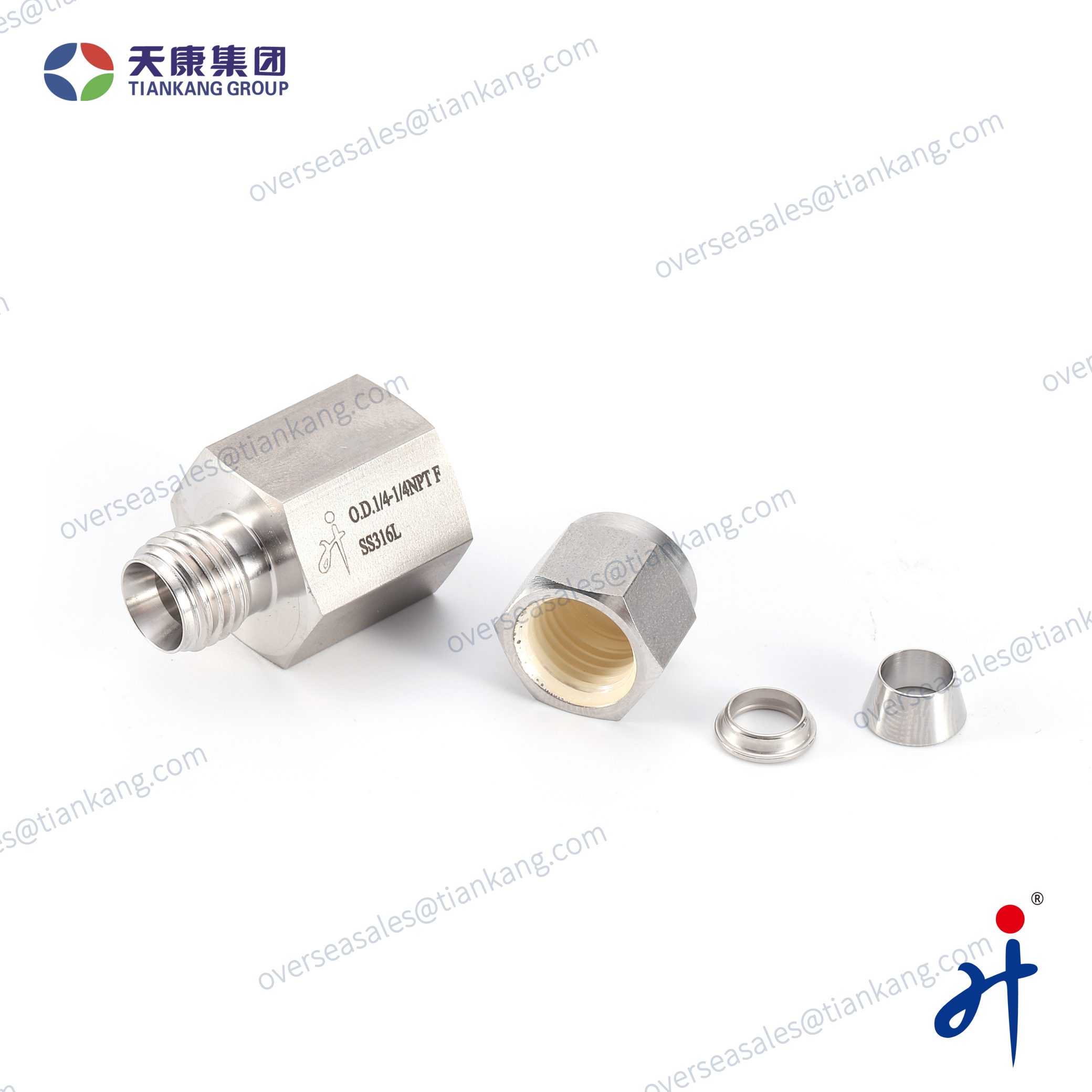

Tiankang Hongji female connectors are fittings designed to provide reliable connections between metal pipelines. They feature a compact structure, excellent sealing performance, and easy installation. One end adopts a ferrule connection, allowing direct connection with non-welded metal tubes, while the other end is designed with a female thread, which can be connected to male-threaded fittings or equipment ports. These connectors are widely used in hydraulic, pneumatic, instrumentation, and chemical systems for fluid transmission.

Product Details

Overview:

Tiankang Hongji female connectors are critical in various industries because they offer a reliable way to join different components in piping systems while ensuring pressure and flow stability.Hongji Female Connectorsa type of fitting commonly used to connect pipes, hoses, or tubes in a system. Hongji Female connectors have internal threads that allow them to be screwed into male connectors or threaded fittings, creating a secure, leak-proof connection.

Technical Specifications:

Type	Female Connectors	Net Weight	0.13kg
Body Material	Stainless steel, alloy, etc.	Manufacturing Capacity	4000 pics/Month
Type of Connection	Ferrule And Thread	Warranty	1 year
Connection 1 Dimensions	1/4″	Connection 1 Type	Ferrule
Connection 2 Dimensions	1/4 NPT	Connection 2 Type	Thread

Applications:

Fluid and Gas Systems: Used to connect various pipe sizes and hoses in fluid and gas transport systems.
Water Treatment: They are used to connect pipes in water distribution and filtration systems.
Oil and Gas Industry: Male connectors help in connecting pipelines and other equipment in oil and gas transport networks.
HVAC Systems: Used for connecting air or water pipes in heating, ventilation, and air conditioning systems.
Chemical Processing: They provide secure connections between pipes carrying chemicals, ensuring safe and efficient fluid transfer.

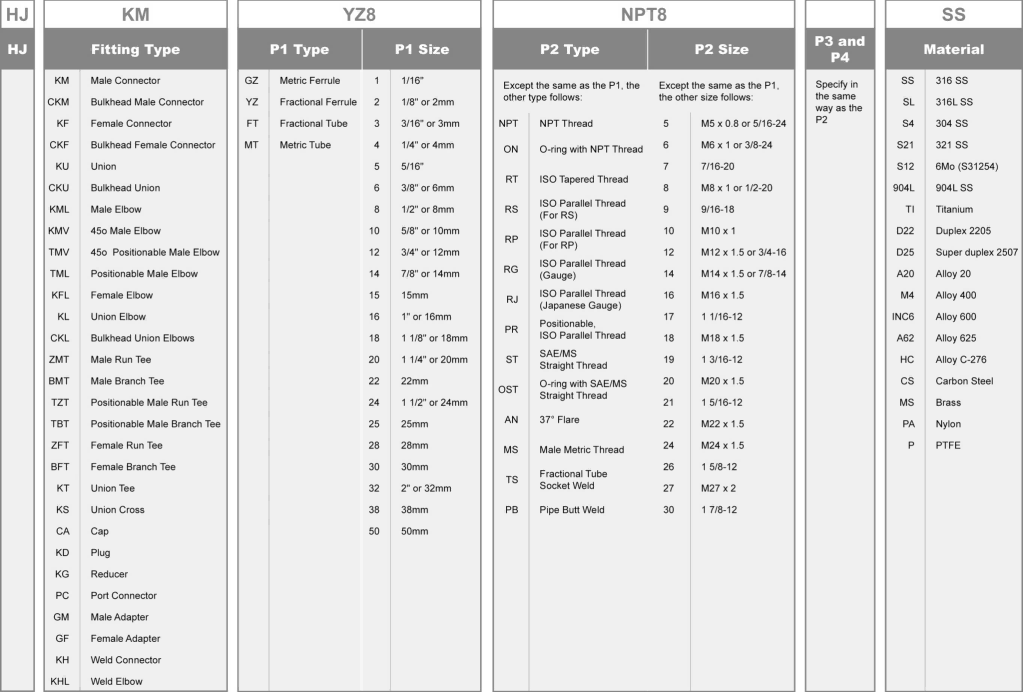

Ordering Number Description:

Note:

P1, P2, P3 and P4 shall be described in the following orders.
Ferrule – Tube – NPT Thread – ISO Tapered Thread – ISO Parallel Thread – SAE/MS Straight Thread – 37o Flare – Pipe Butt Weld – Fractional Tube Socket Weld – Others.
Describe in descending order as per size if the end connection types are the same.
Describe the end of P1 if all end connections are the same.
