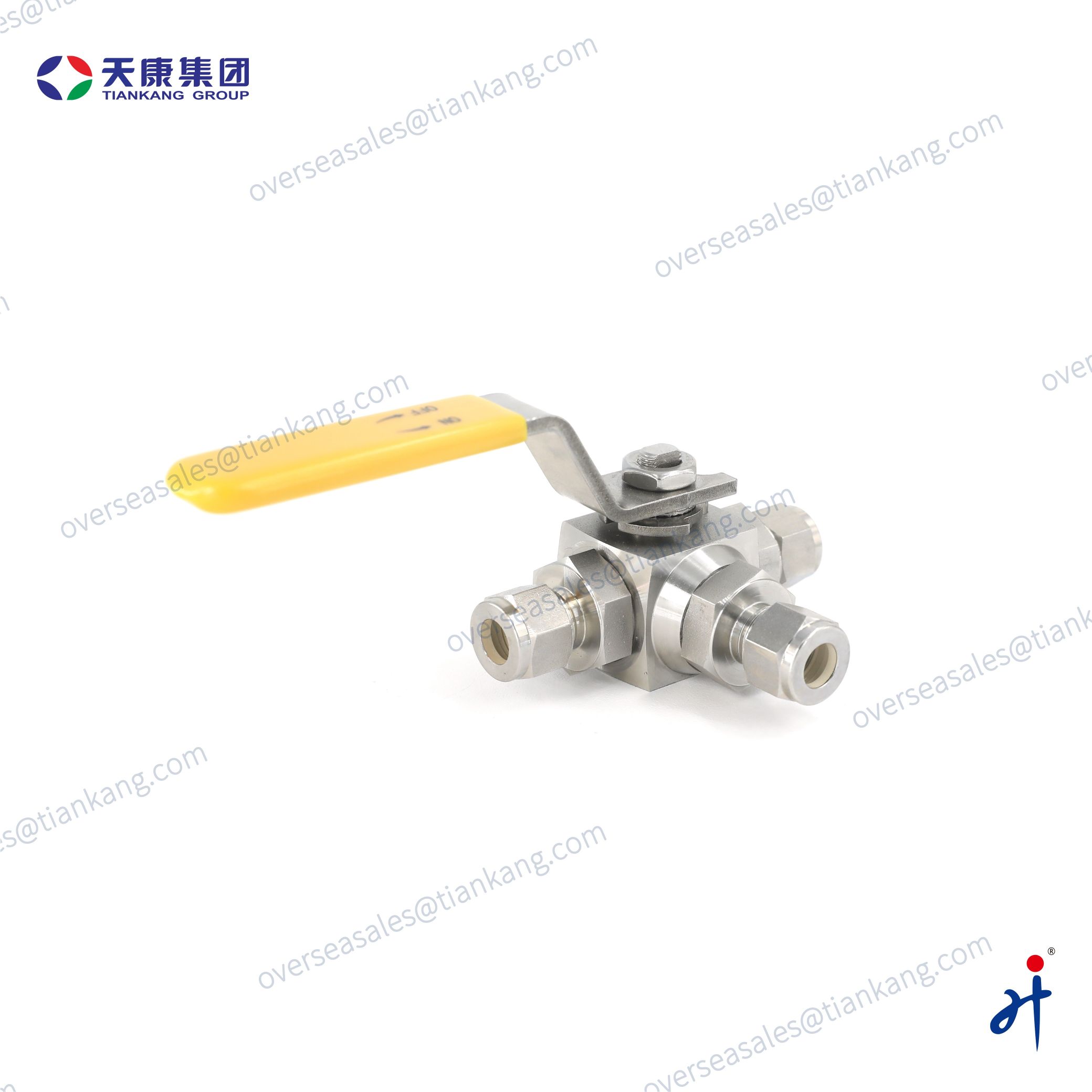

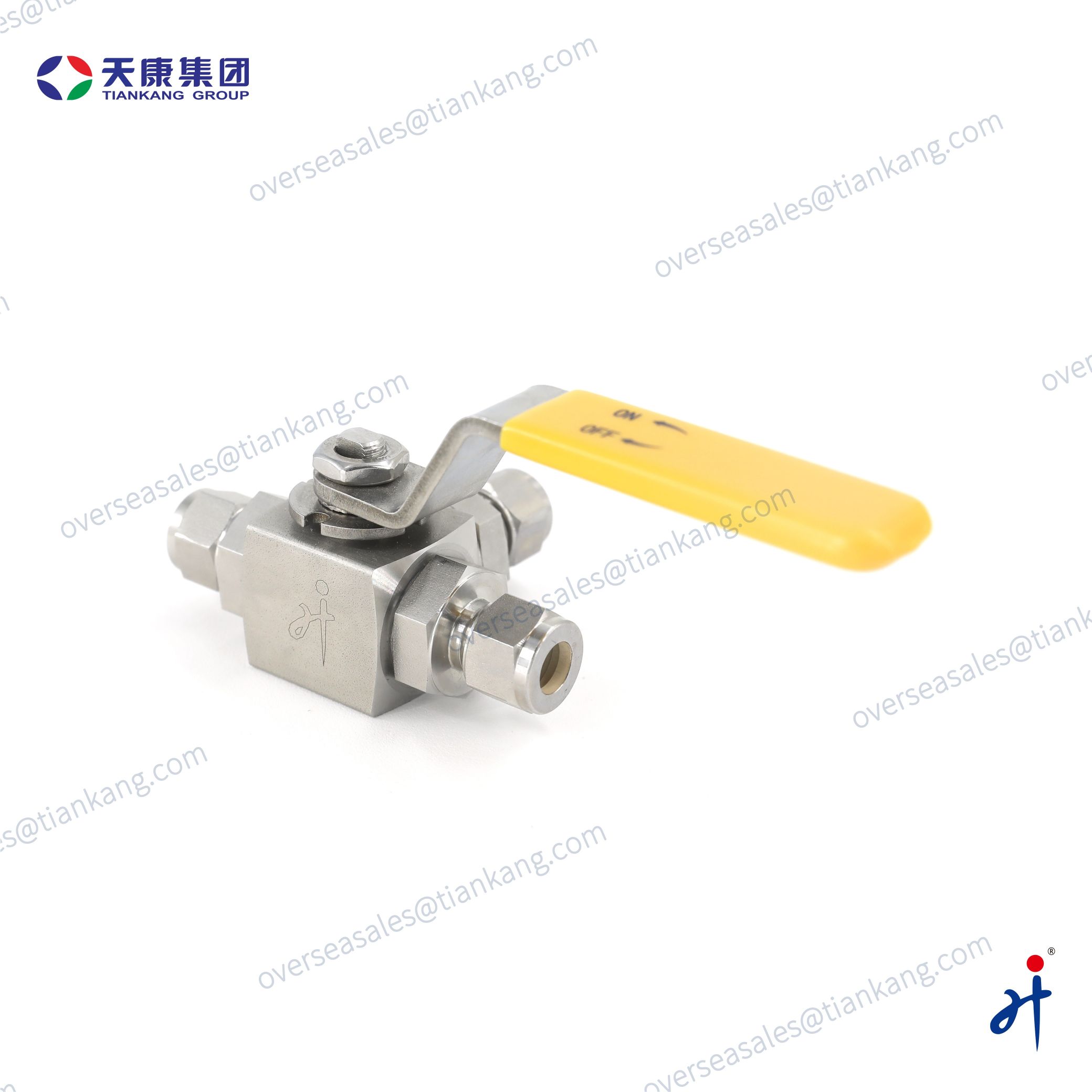

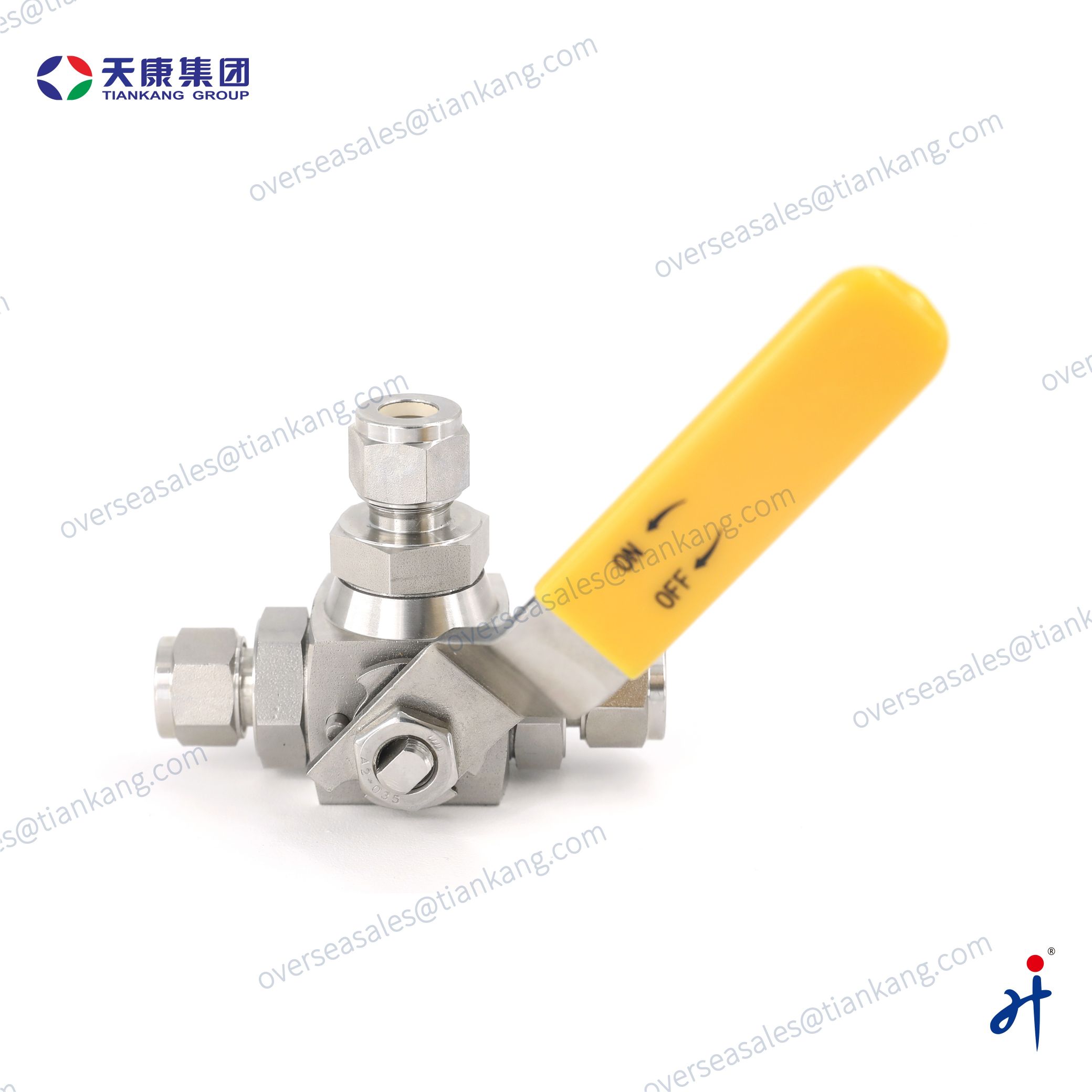

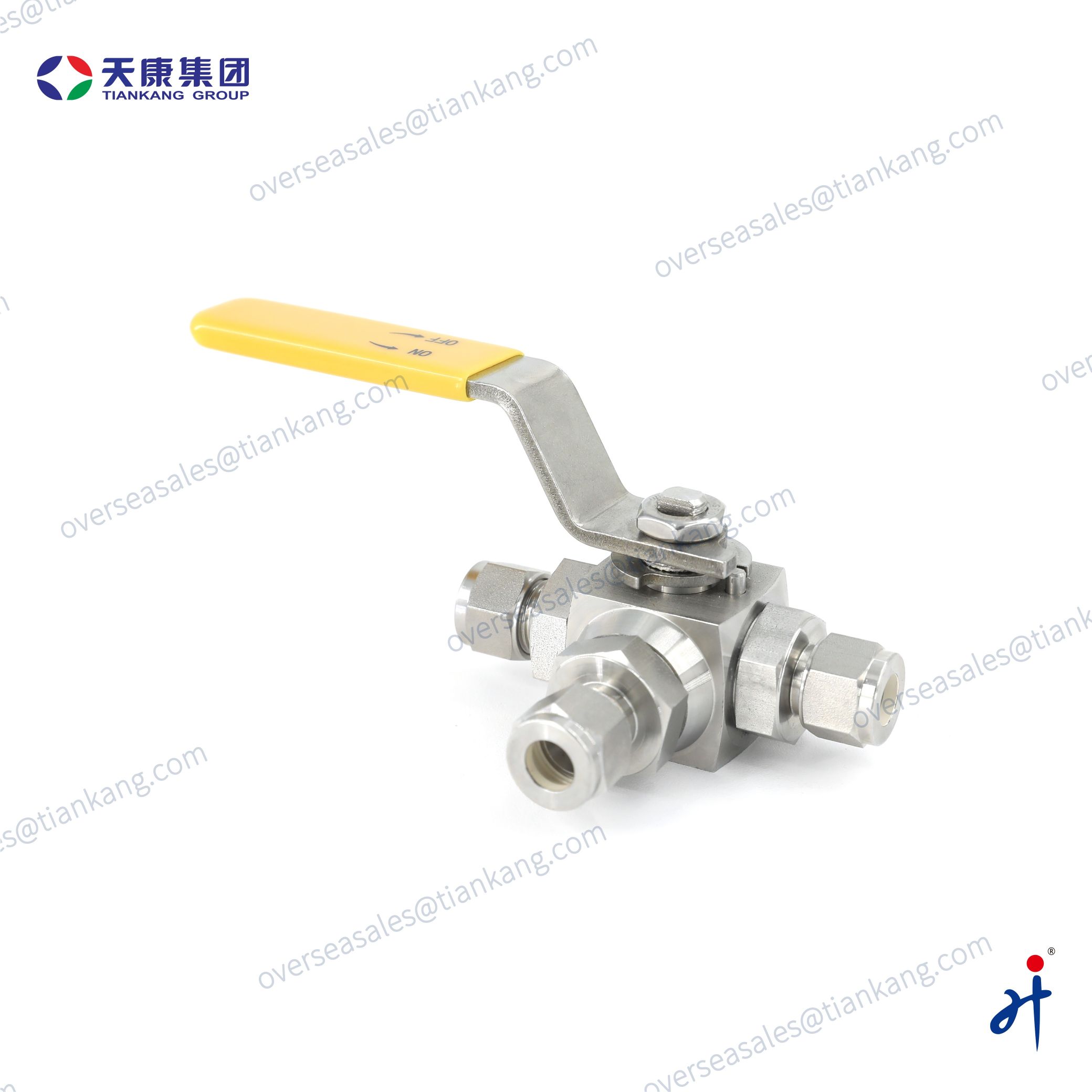

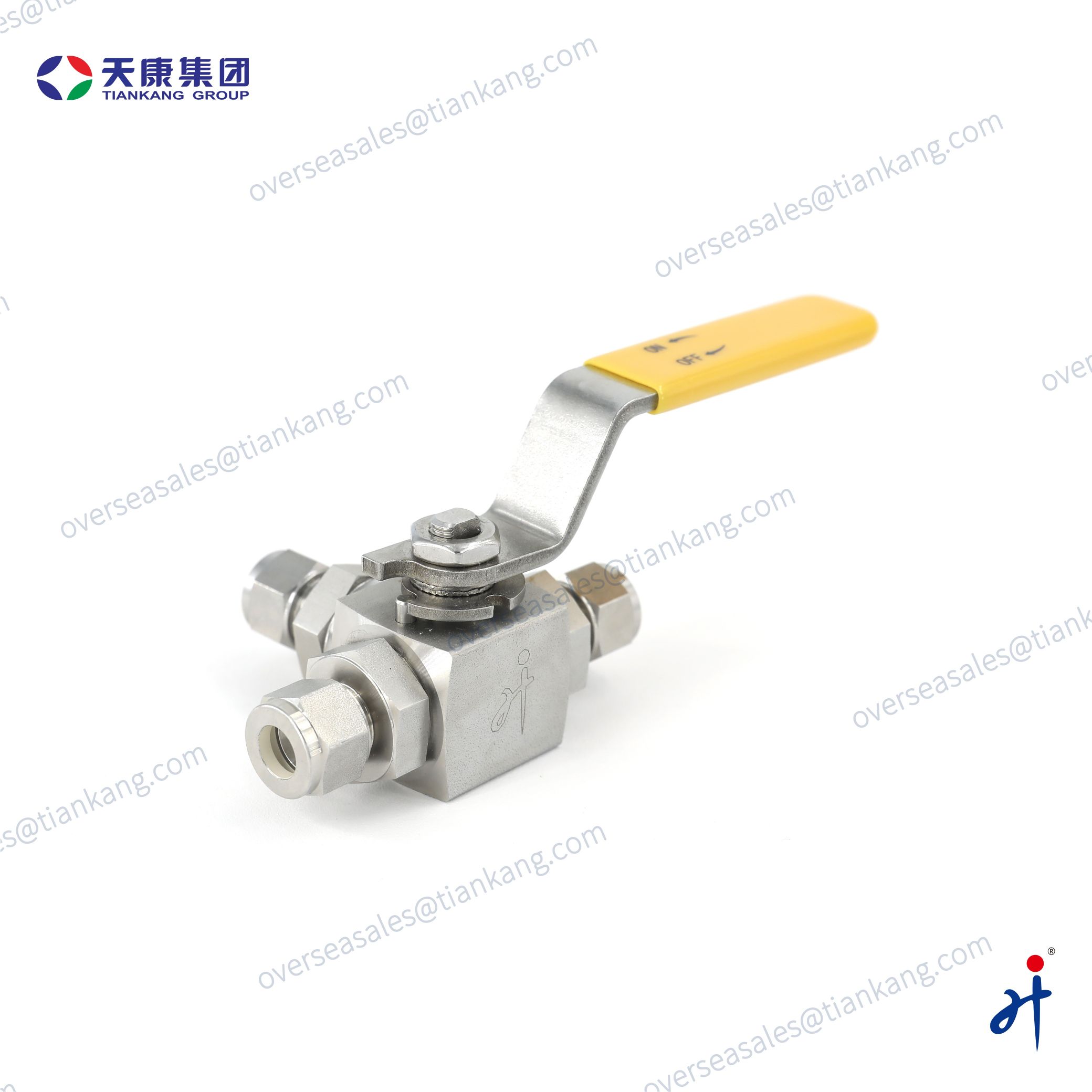

Tiankang Hongji 3-Way High-Pressure Hydraulic Ball Valves are designed for high-pressure applications up to 10,000 psi (690 bar), with a working temperature range from -40°C to 232°C (-40°F to 450°F). It offers reliable sealing and easy operation, with a stainless-steel body (SS316L/SS316/SS304) and seat materials available in PVDF, PCTFE, or PEEK, enabling vertical or horizontal three-way flow configurations.
Overview
The Tiankang Hongji 3-Way High-Pressure Hydraulic Ball Valve supports multiple connection types, including ferrule, threaded, and tube connections, with orifice sizes from 4.8 mm to 18 mm for flexible system integration. Featuring corrosion resistance and high-pressure durability, this valve is suitable for hydraulic and fluid control systems in industries such as oil and gas, chemicals, and metallurgy.
Technical Specifications
| Parameters | Specifications |
| Working pressure | 10000psi(690bar) |
| Working temperature |
-40°F to 450°F (-40°C to 232°C)
|
| Flow pattern | 3-Way(Vertical pattern/Horizontal pattern) |
| Seat material | PVDF; PCTFE; PEEK |
| Process connection | Ferrule; Thread; Tube |
| Orifice, mm | 4.8; 6.4; 7.1; 10; 12.7; 18 |
| Body material | SS316L; SS316; SS304 |
Applications
