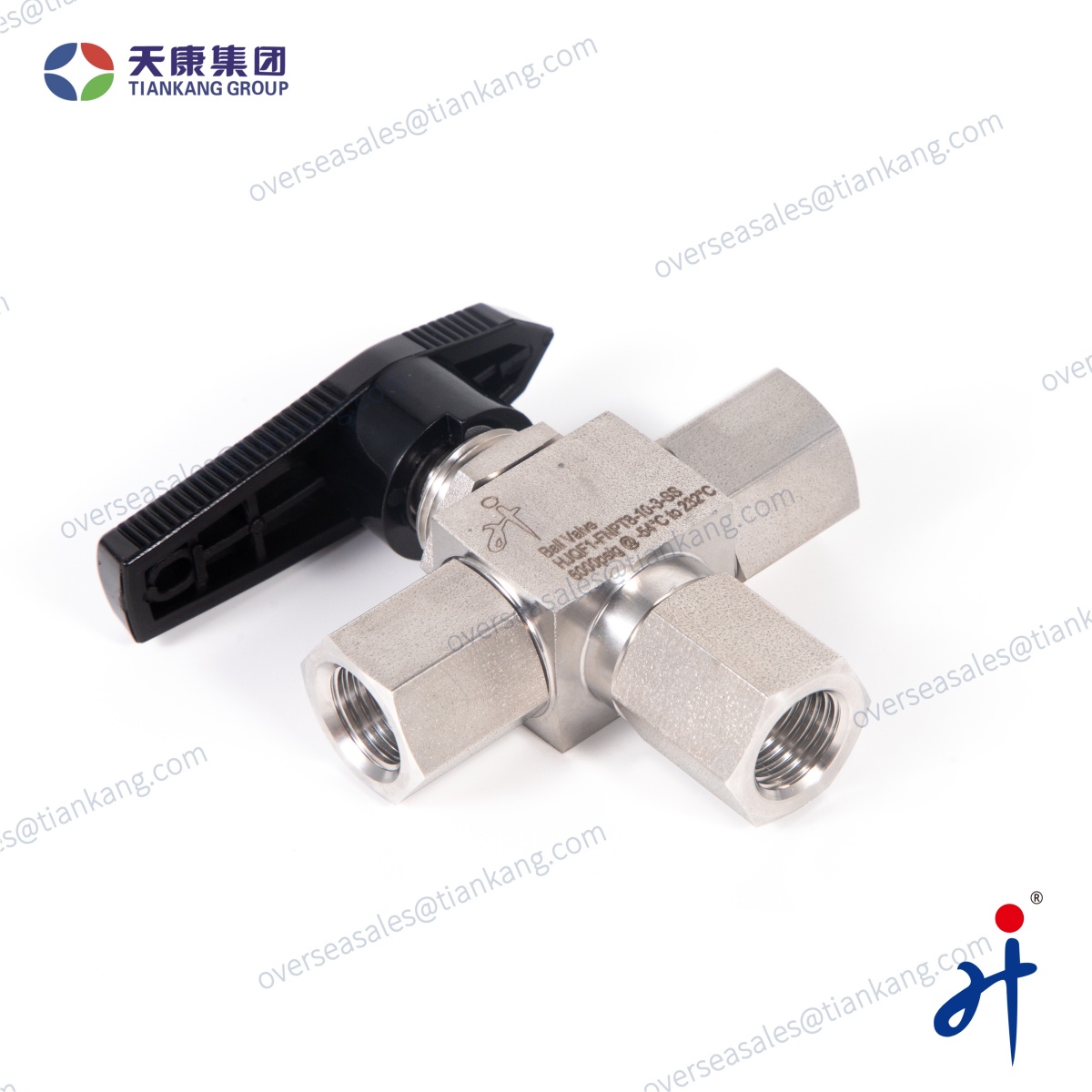

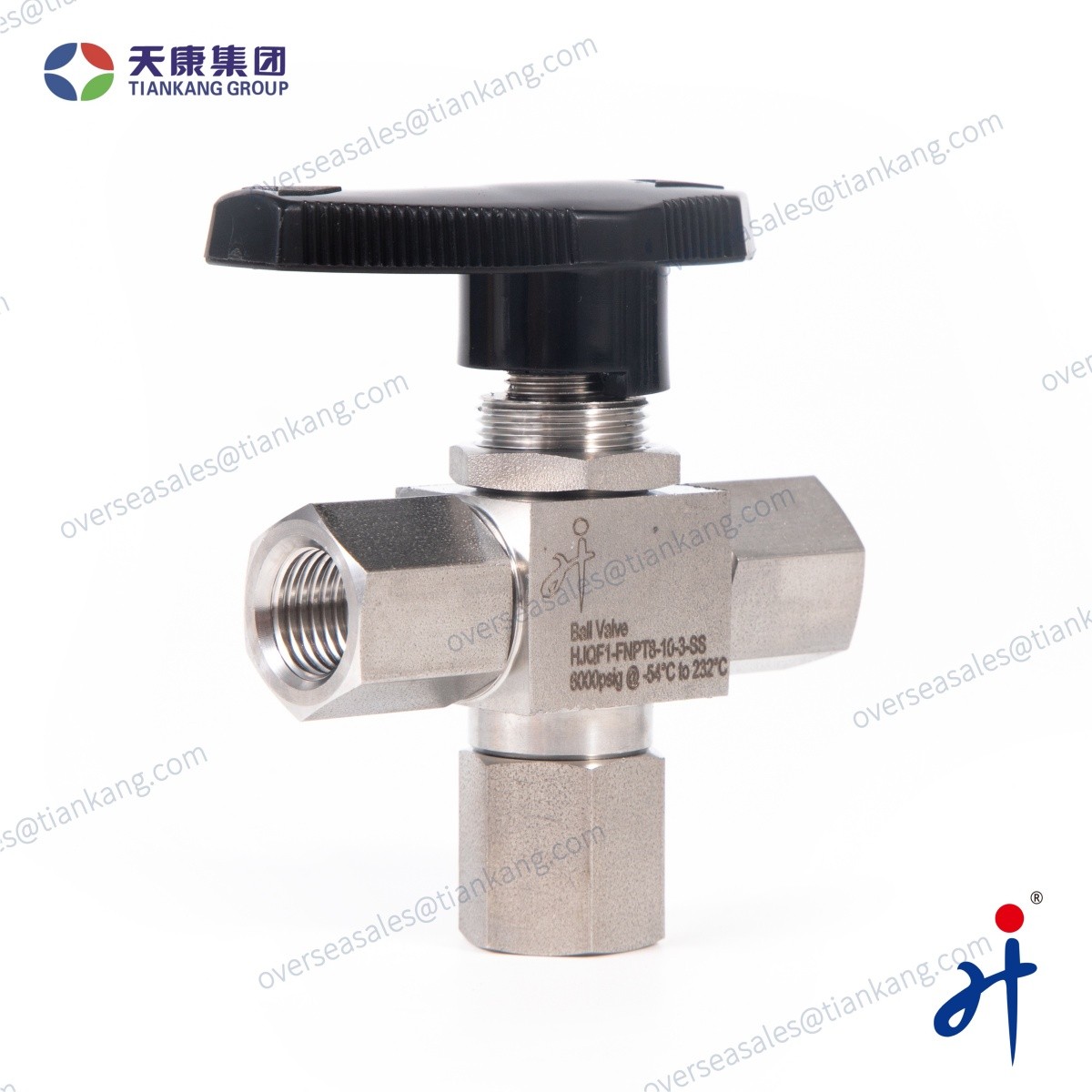

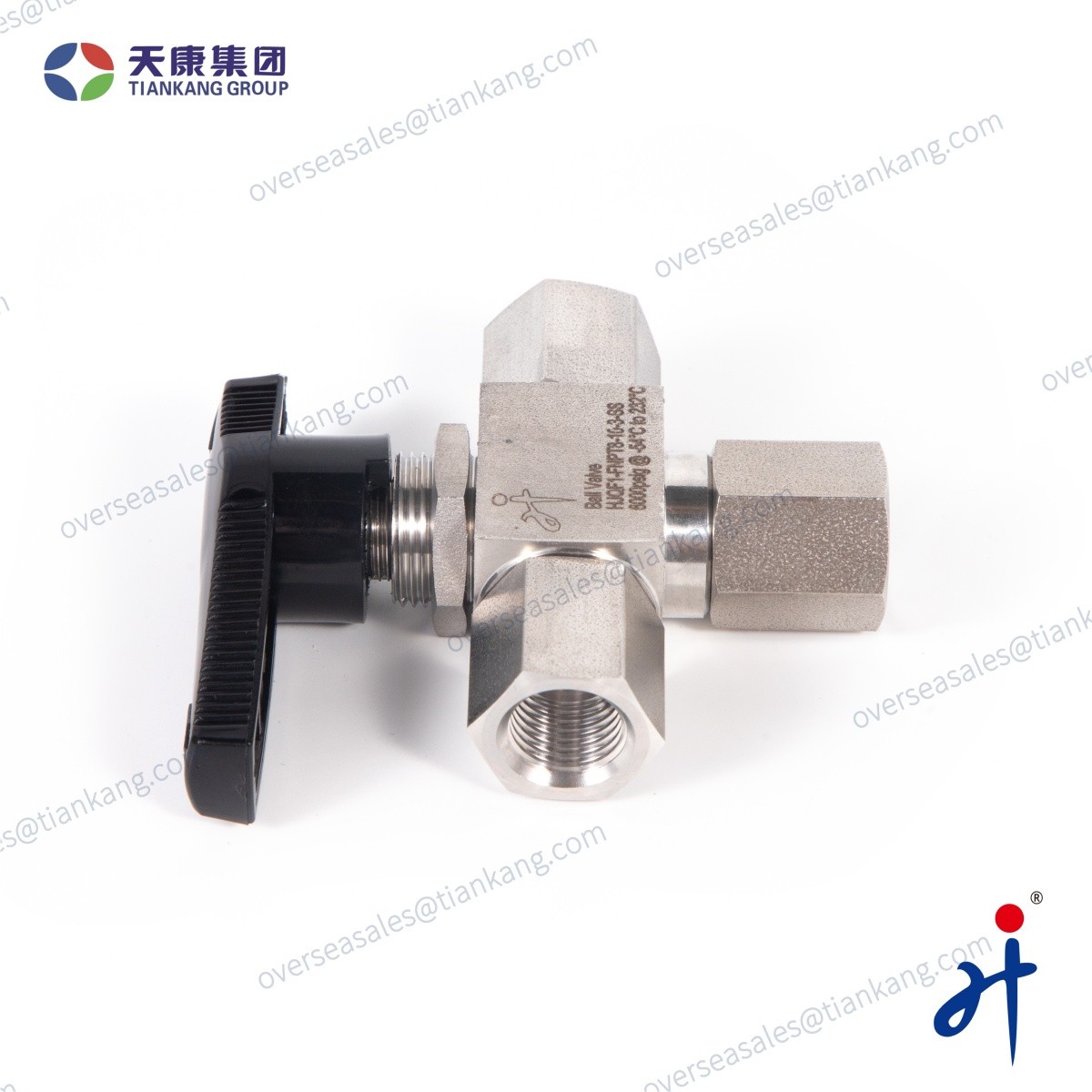

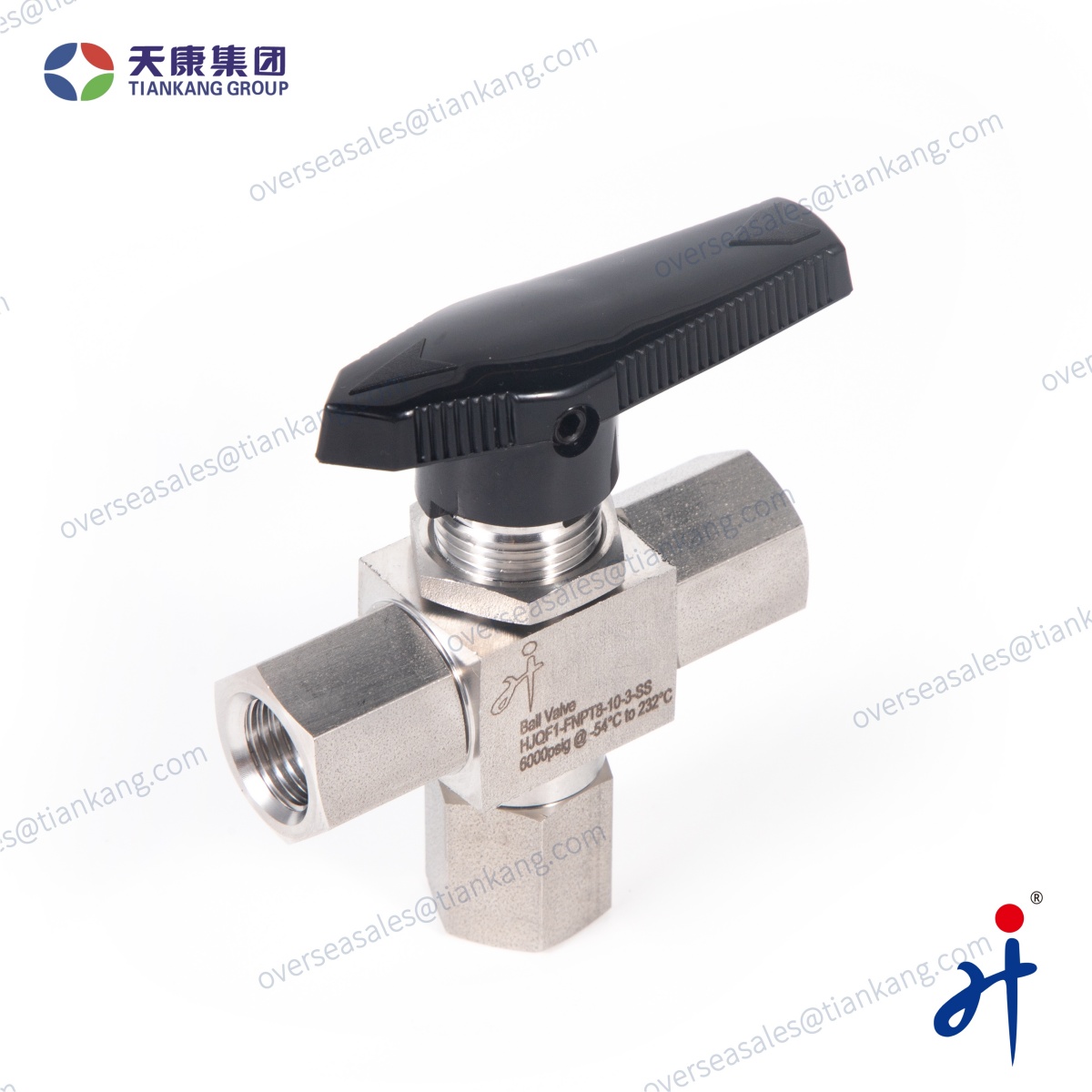

Tiankang Hongji High Performance 3-Way Ball Valve is constructed from high-strength stainless steel, ensuring robust durability. Its three-way interface design allows for flexible installation and fluid delivery. The threaded connection simplifies integration with piping systems, facilitating maintenance. Suitable for industries such as chemical, petroleum, and natural gas, it effectively controls fluid flow and direction, providing users with optimal safety and operational experience.
Overview
Tiankang Hongji High Performance 3-Way Ball Valve is designed to withstand pressures up to 6000 psi, making it ideal for industrial applications requiring reliable fluid control. Its three-way design allows for flexible fluid path options and supports various connection methods. The valve combines excellent corrosion resistance and high-temperature performance, ensuring long-lasting use in harsh environments.
Technical Specifications
| Parameters | Specifications |
| Working pressure | 6000psi(414bar) |
| Working temperature | -65°F to 450°F (-54°C to 232°C) |
| Seat material | PTFE; PEEK; PCTFE |
| Flow pattern | Straight; 3-Way; Angle |
| Process connection | Ferrule; Thread |
| Orifice, mm | 2.4; 4.2; 4.7; 6.4; 9.5; 10.3 |
| Body material | SS304; SS316; SS316L; Others |
Applications
Chemical Processing: Widely used in the transport and control of corrosive chemicals and fluids.
Oil and Gas Industry: Essential for controlling the flow of oil, gas, and other petrochemical products, often under high pressure.
Water Treatment: Used in various stages of water purification and distribution systems to manage flow effectively.
Food and Beverage: Commonly employed in sanitary applications to ensure hygiene and safe handling of liquids.
Marine Applications: Used in shipbuilding and marine systems for reliable fluid control in demanding marine environments.

Note:1. Standard thread pitch for metric threads is as follows:
M10 and below: 1mm
M12 to M24: 1.5mm

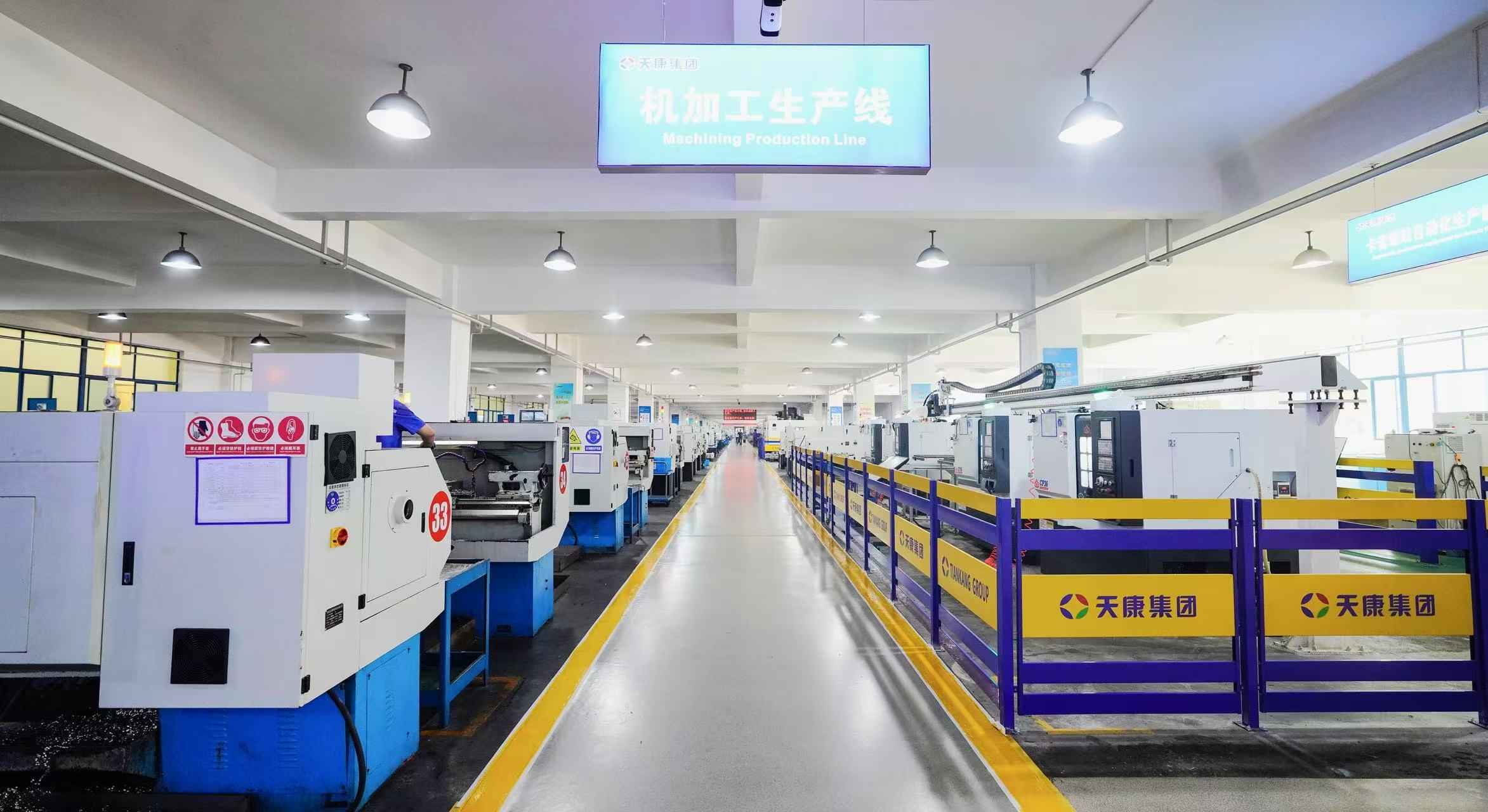

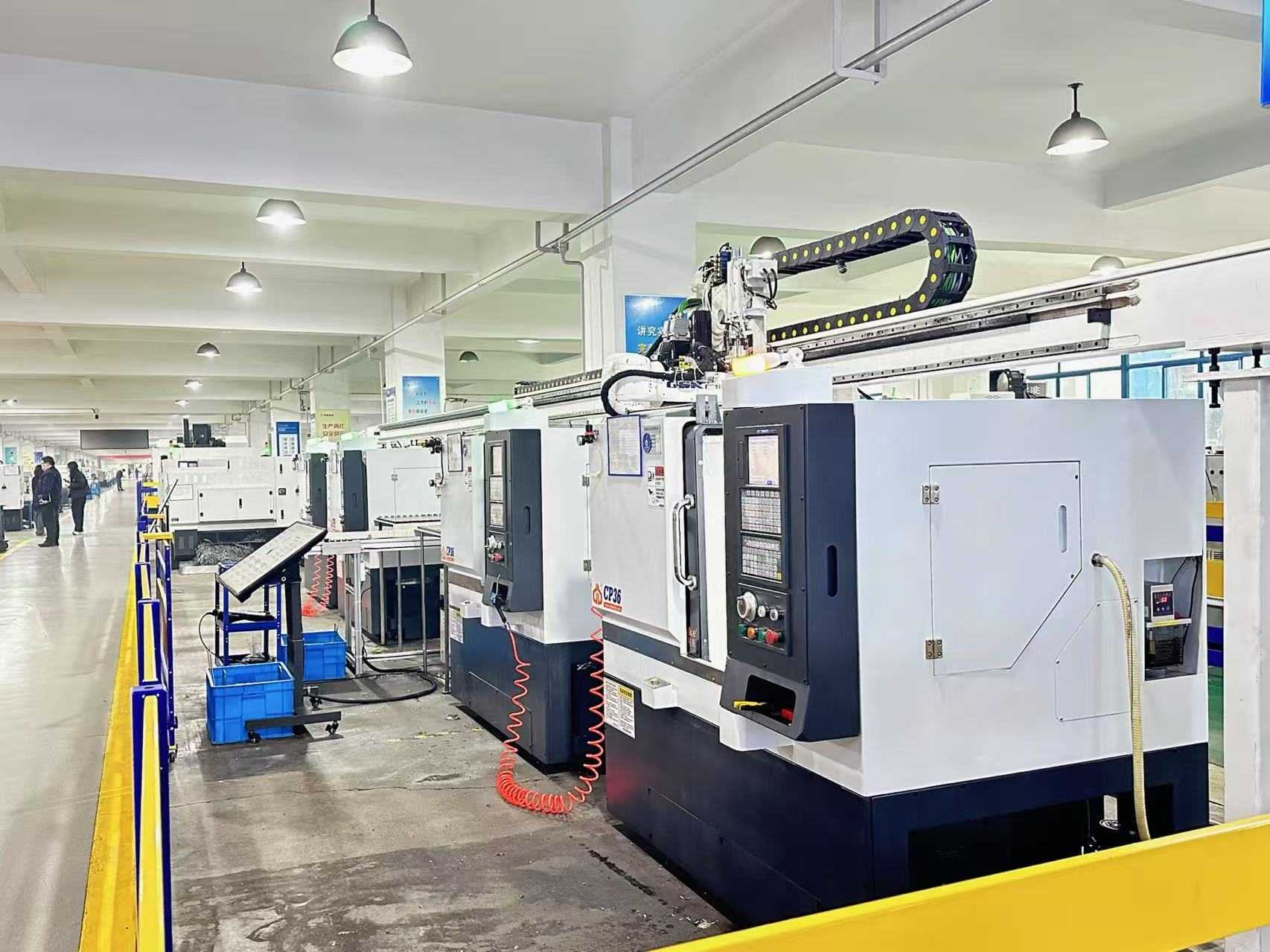

Factory photos


![]()
