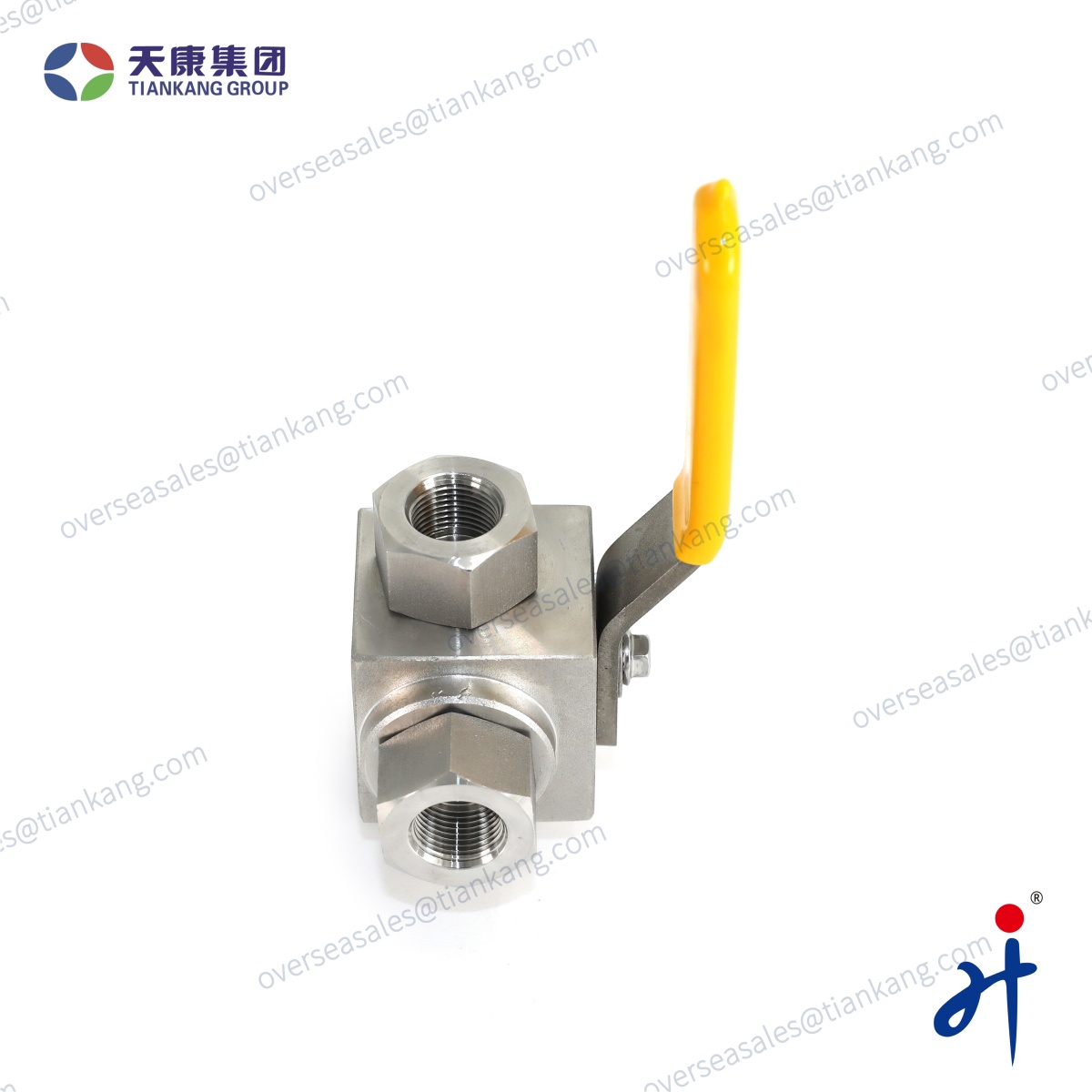

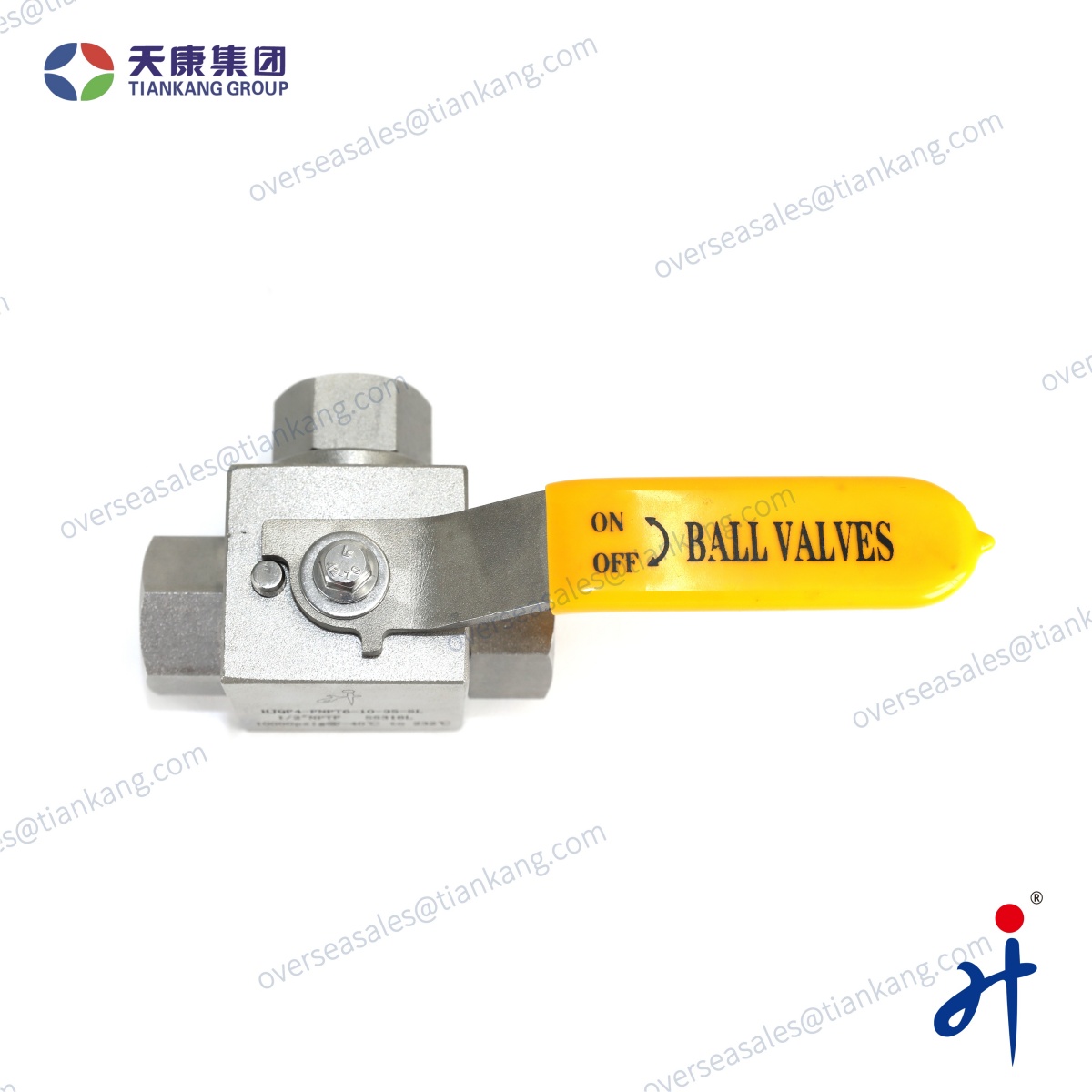

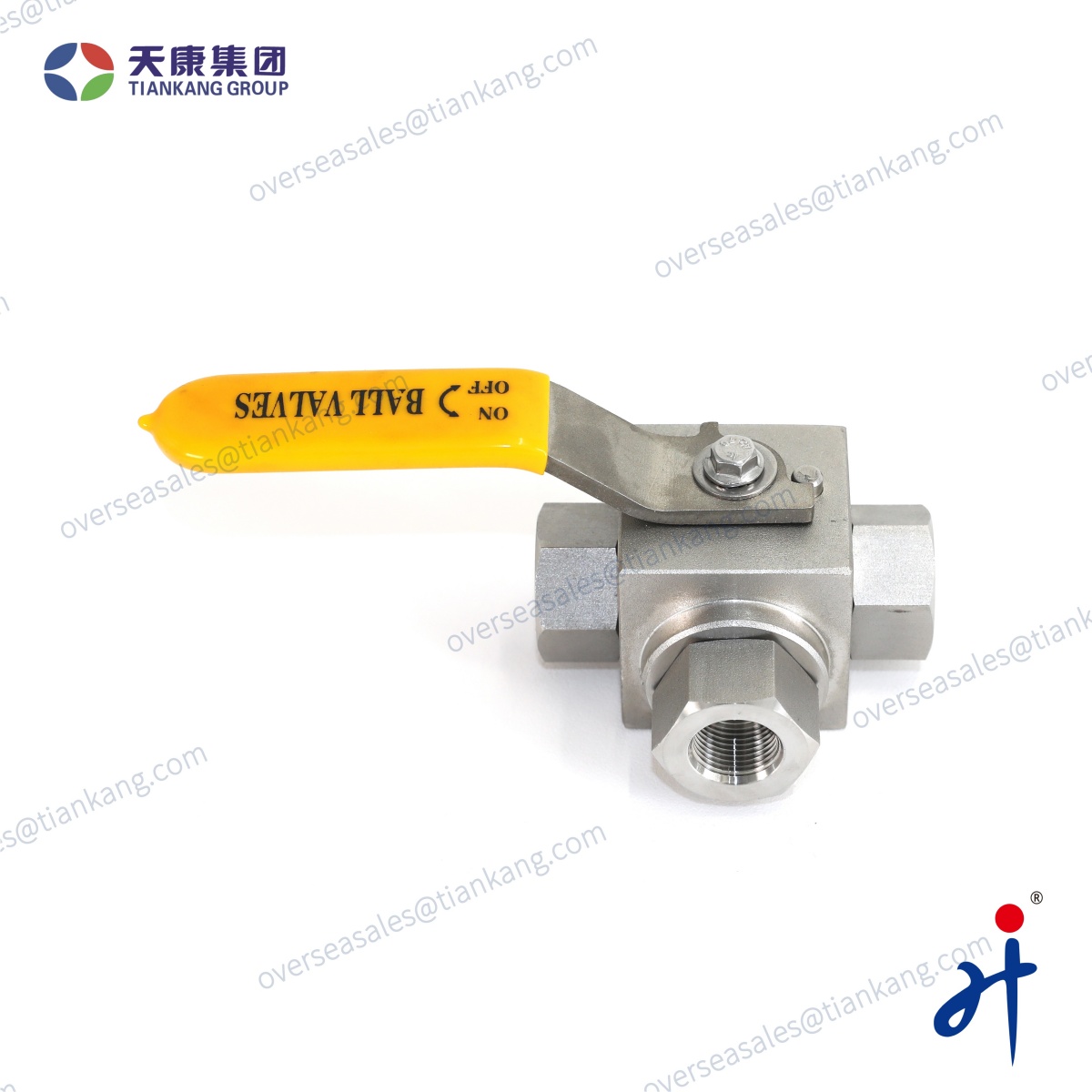

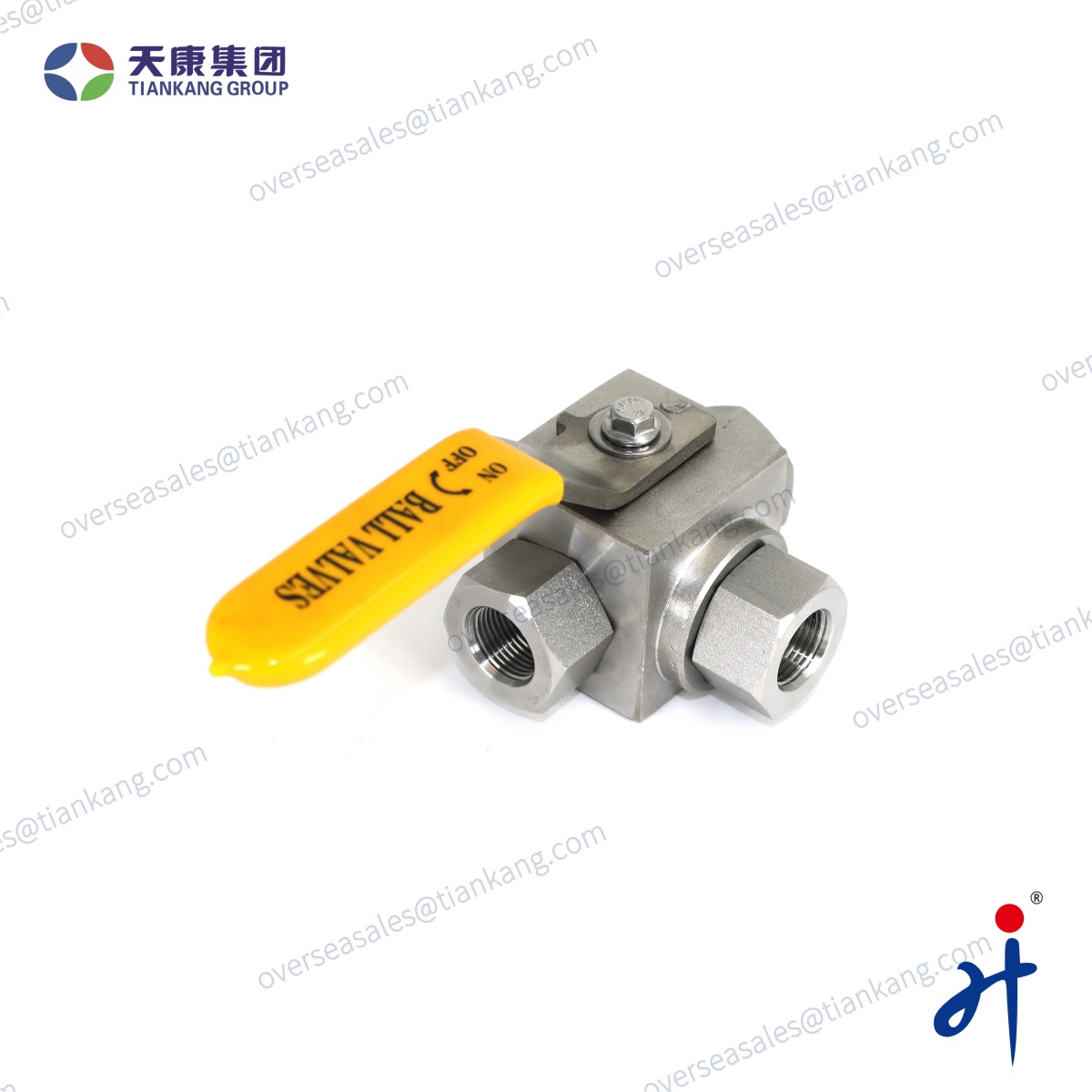

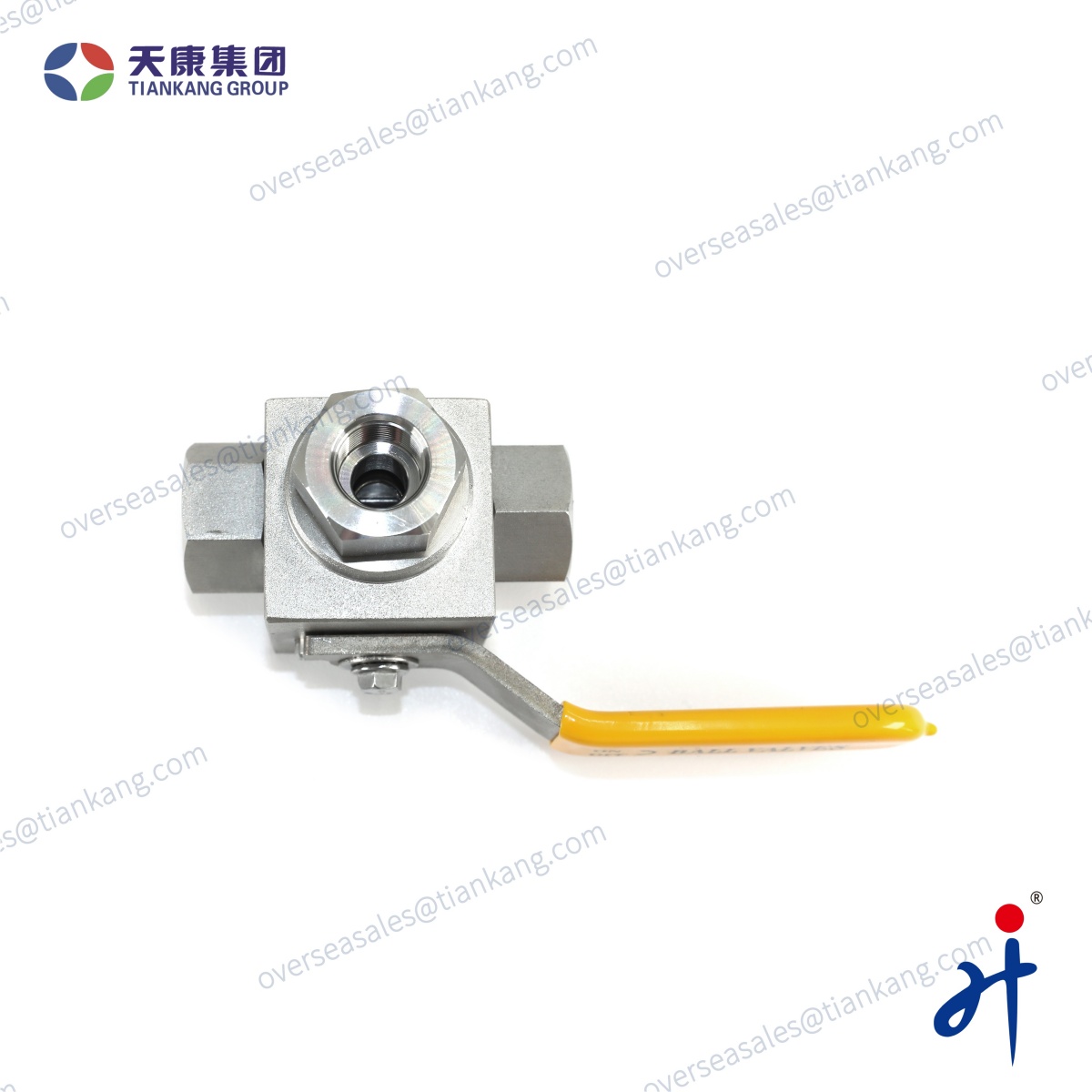

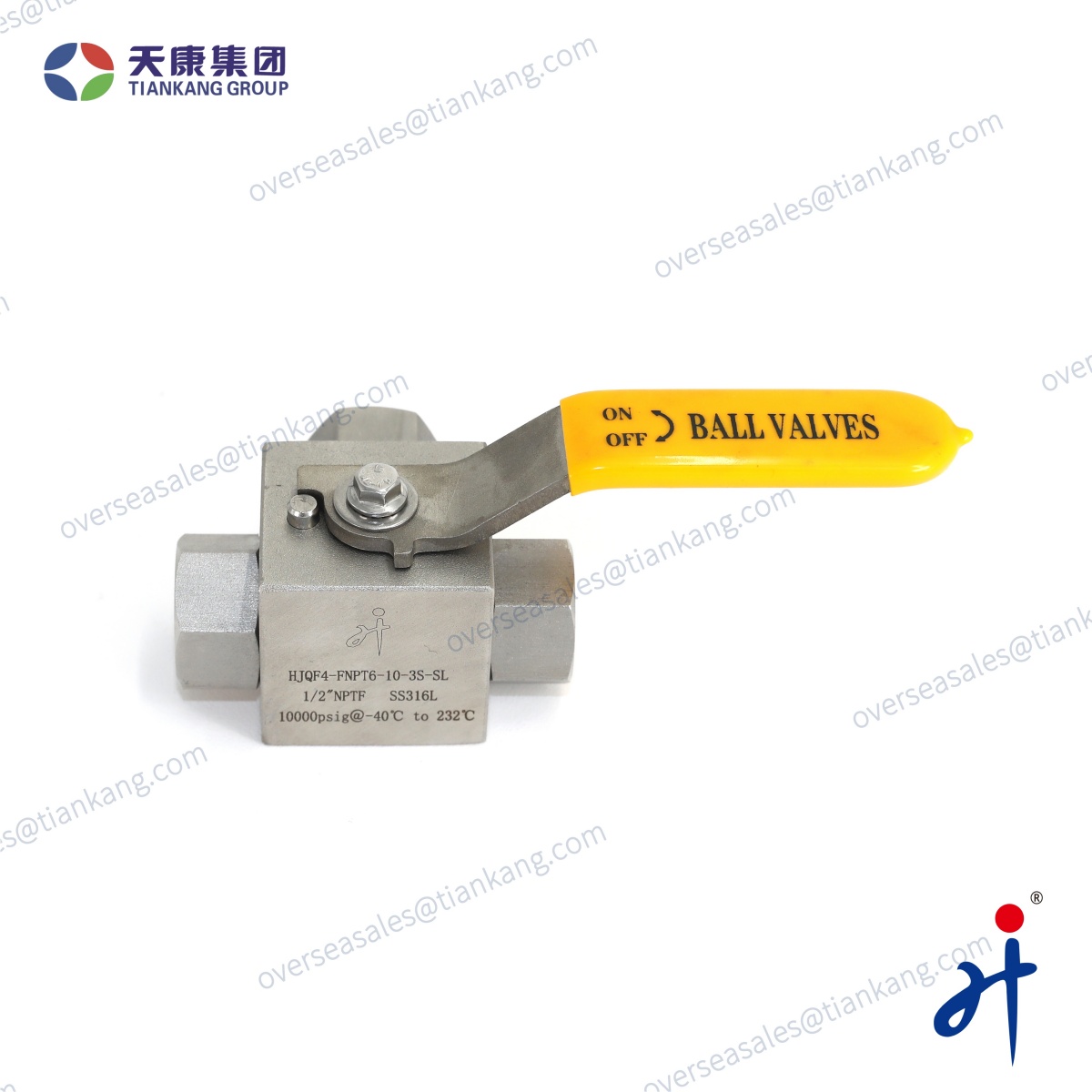

Tiankang Hongji 3-Way High-Pressure Hydraulic Ball Valve

Tiankang Hongji 3-Way High-Pressure Hydraulic Ball Valve

Tiankang Hongji 3-Way High-Pressure Hydraulic Ball Valve is widely used in hydraulic equipment, oil and gas, chemical industries, and other fields, making it an essential fluid control component in modern industry.

  • Product Details

Overview

The Tiankang Hongji 3-Way High-Pressure Hydraulic Ball Valve is designed for high-pressure applications, featuring a three-way design for efficient fluid control. Made from corrosion-resistant materials, it offers excellent sealing performance and user-friendly operation. This valve is ideal for use in industries like oil and gas, chemicals, and metallurgy.



Technical Specifications

Parameters Specifications
Working pressure 10000psi(690bar)
Working temperature
-40°F to 450°F (-40°C to 232°C)
Flow pattern 3-Way(Vertical pattern/Horizontal pattern)
Seat material PVDF; PCTFE; PEEK
Process connection Ferrule; Thread; Tube
Orifice, mm 4.8; 6.4; 7.1; 10; 12.7; 18
Body material SS316L; SS316; SS304



Applications

  • Chemical Processing: They are used to control the flow of chemicals in pipelines.
  • Oil and Gas Industry: Hydraulic Ball Valve regulates the flow of oil and natural gas, especially in extraction and transportation.
  • Water Treatment: They are utilized in systems to regulate water flow, such as in filtration or treatment plants.
  • Pharmaceuticals: Hydraulic Ball Valves help in controlling the flow of liquids and gases in pharmaceutical production lines.
  • Food and Beverage: Hongji Hydraulic Ball Valves are used to control the flow of liquids such as juices, milk, or beer in production lines.

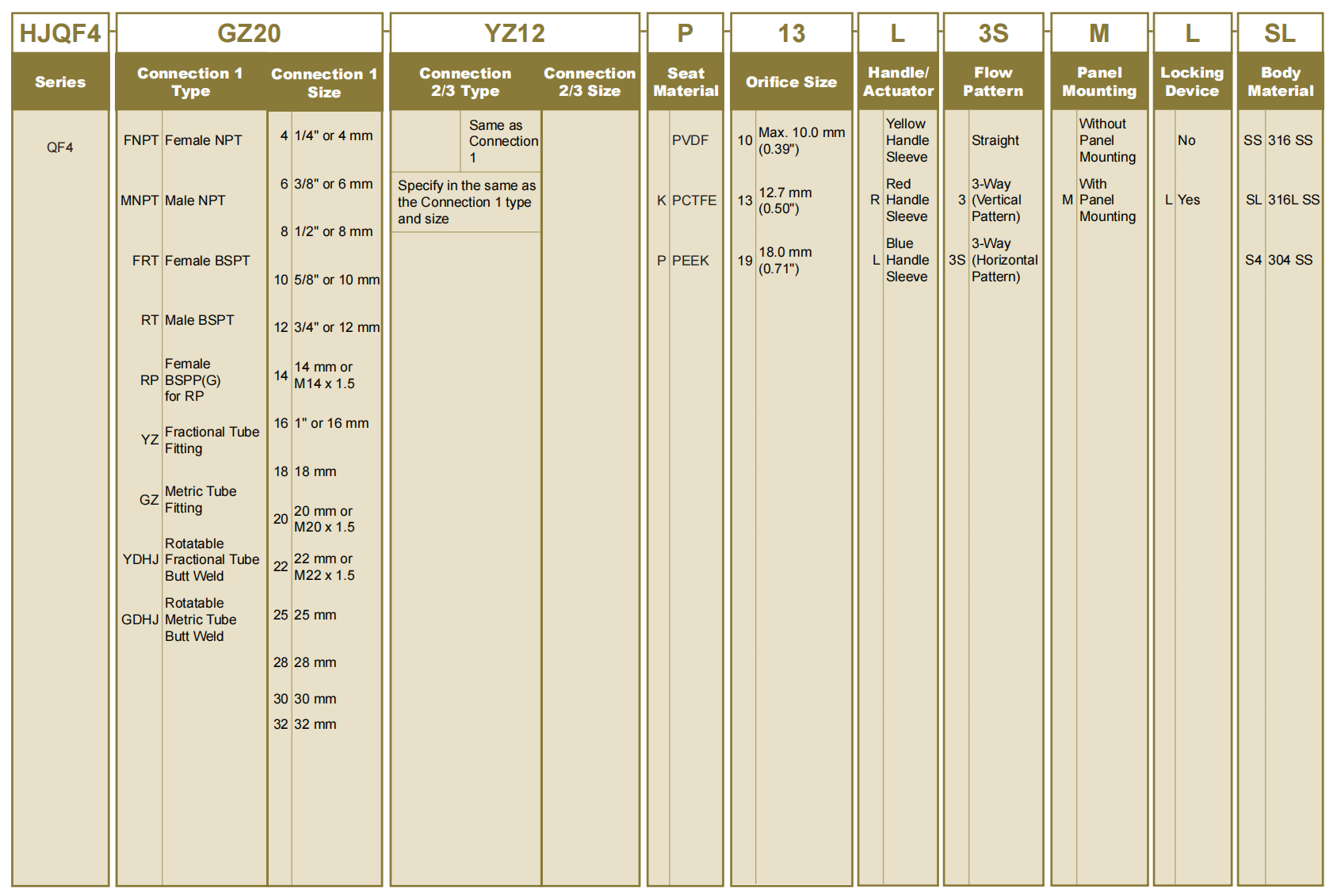

Ordering Number Description:

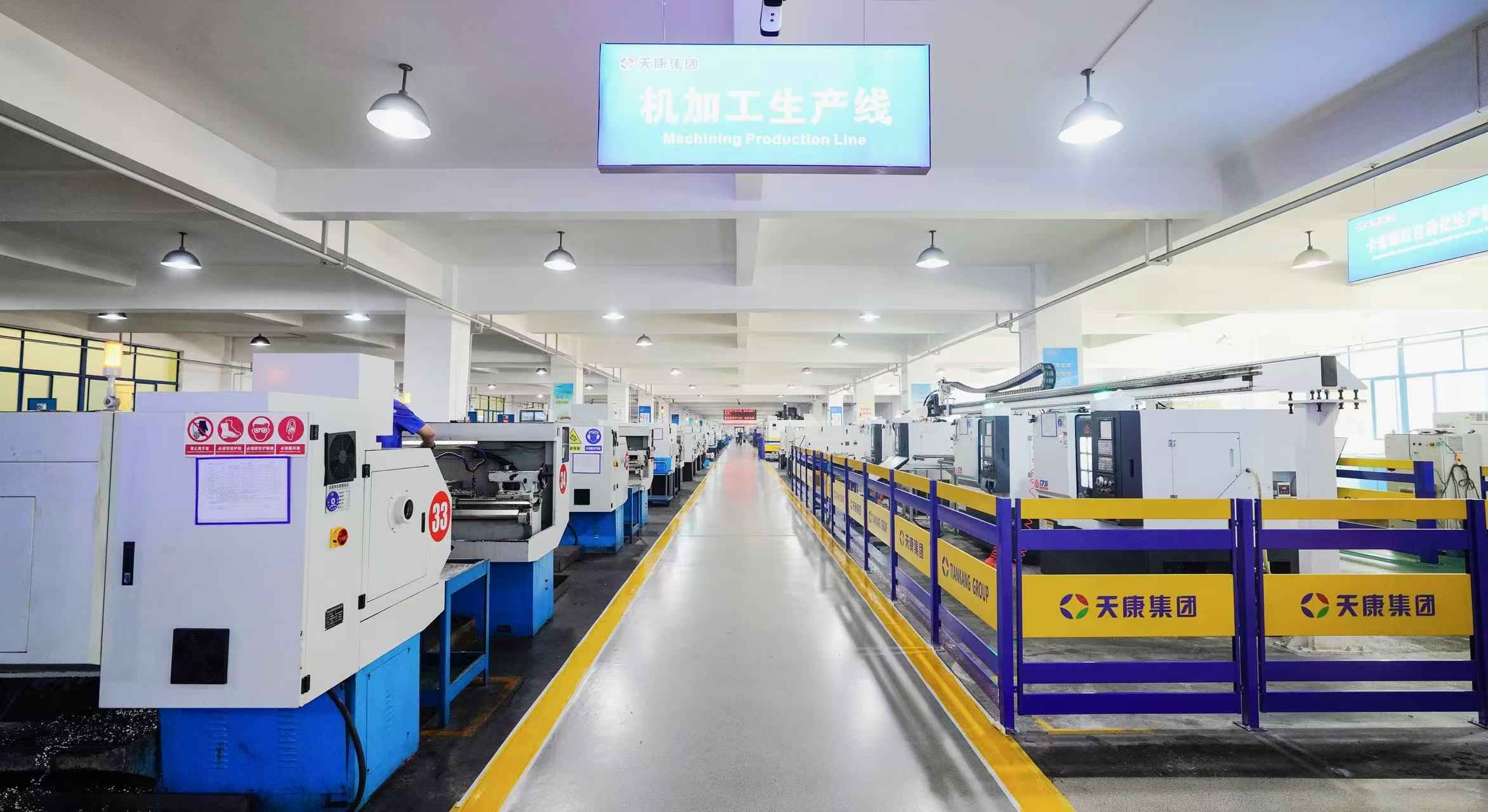

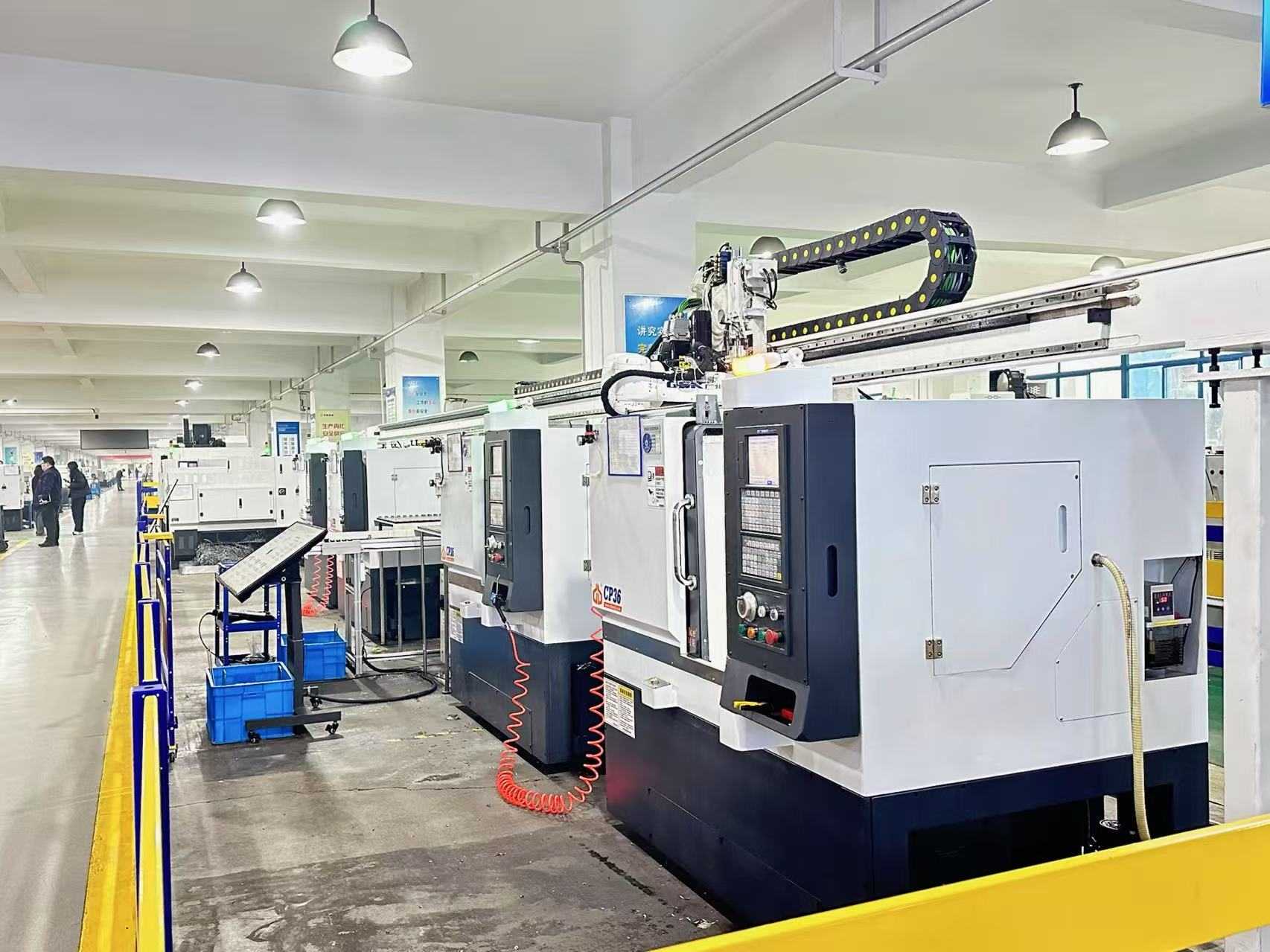

Factory photos
