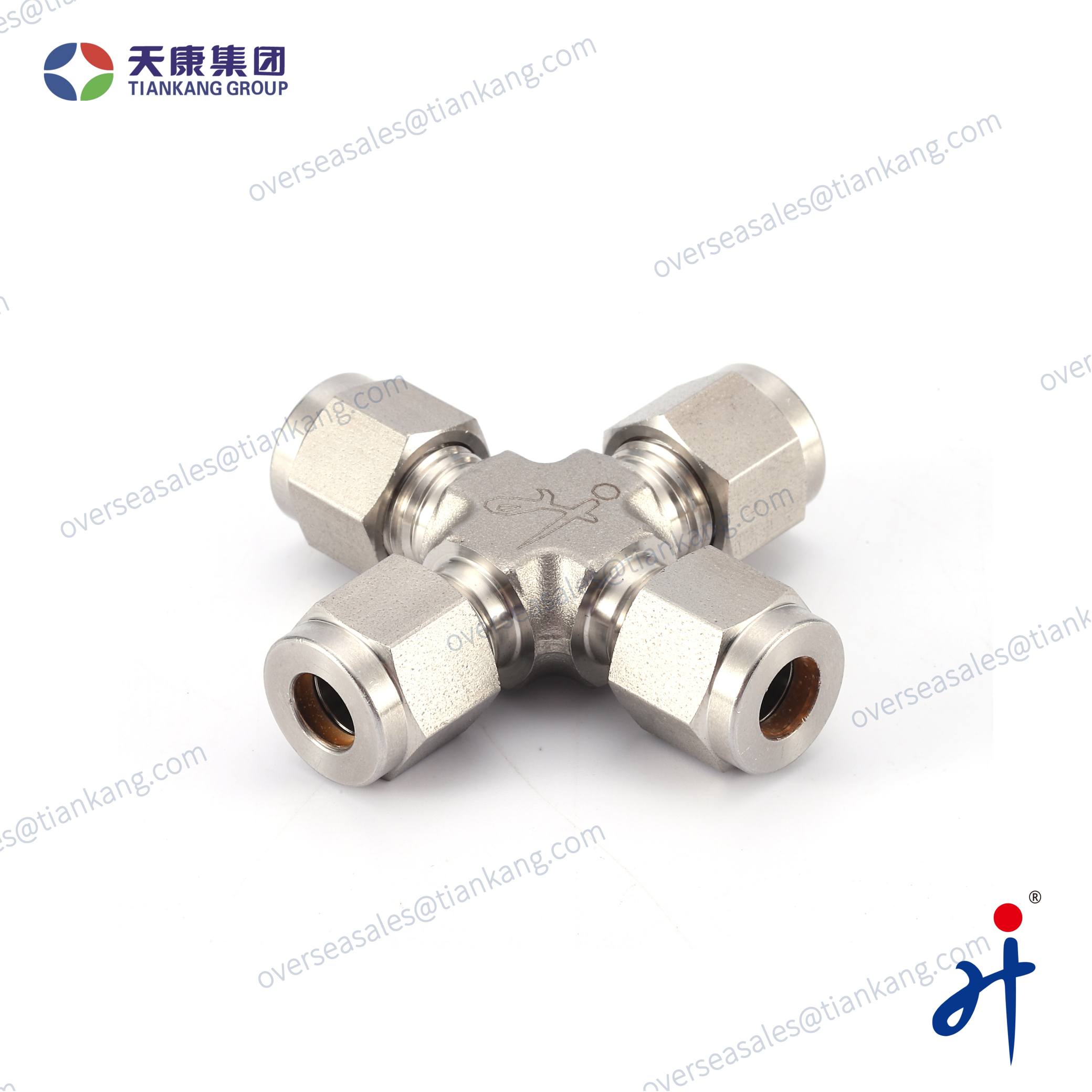

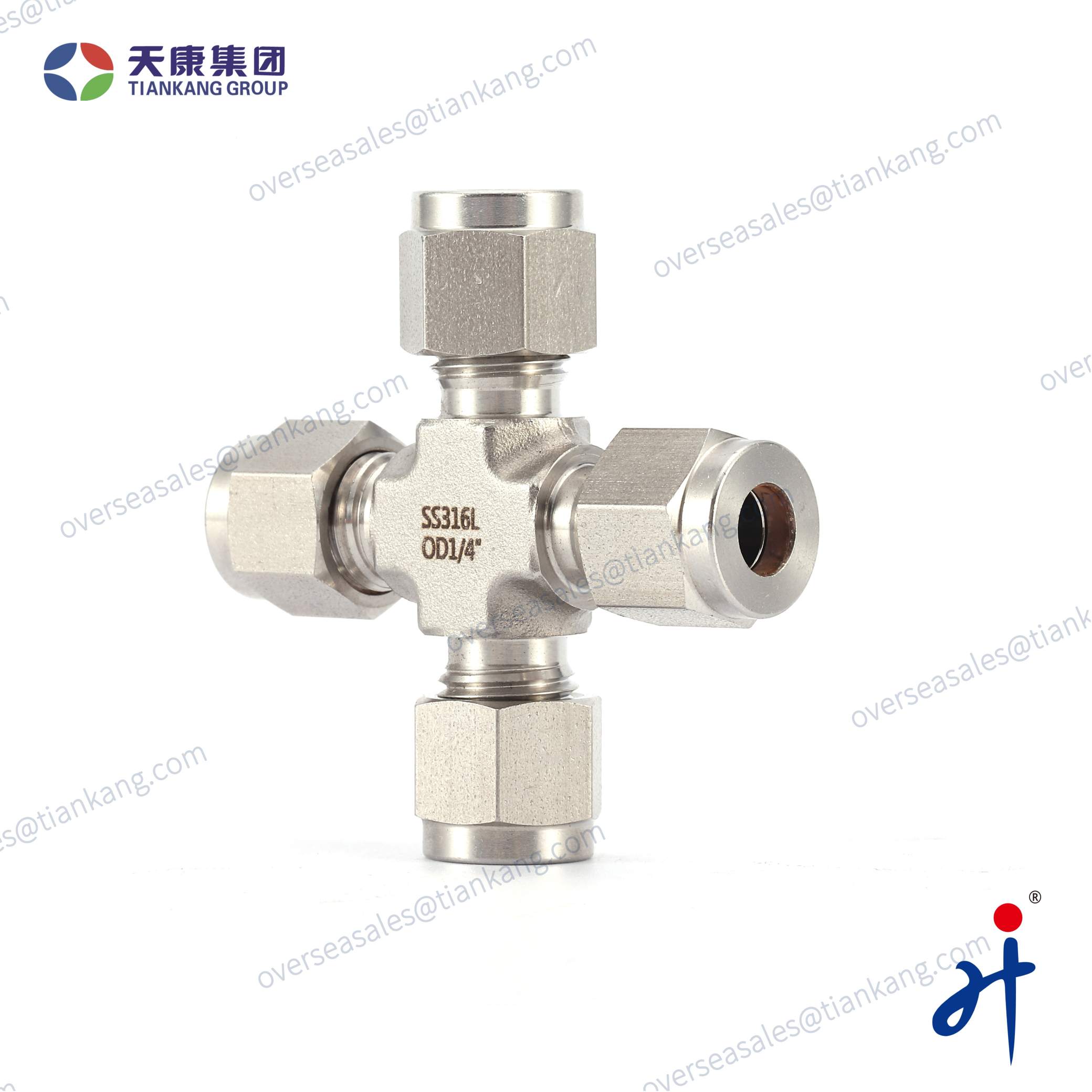

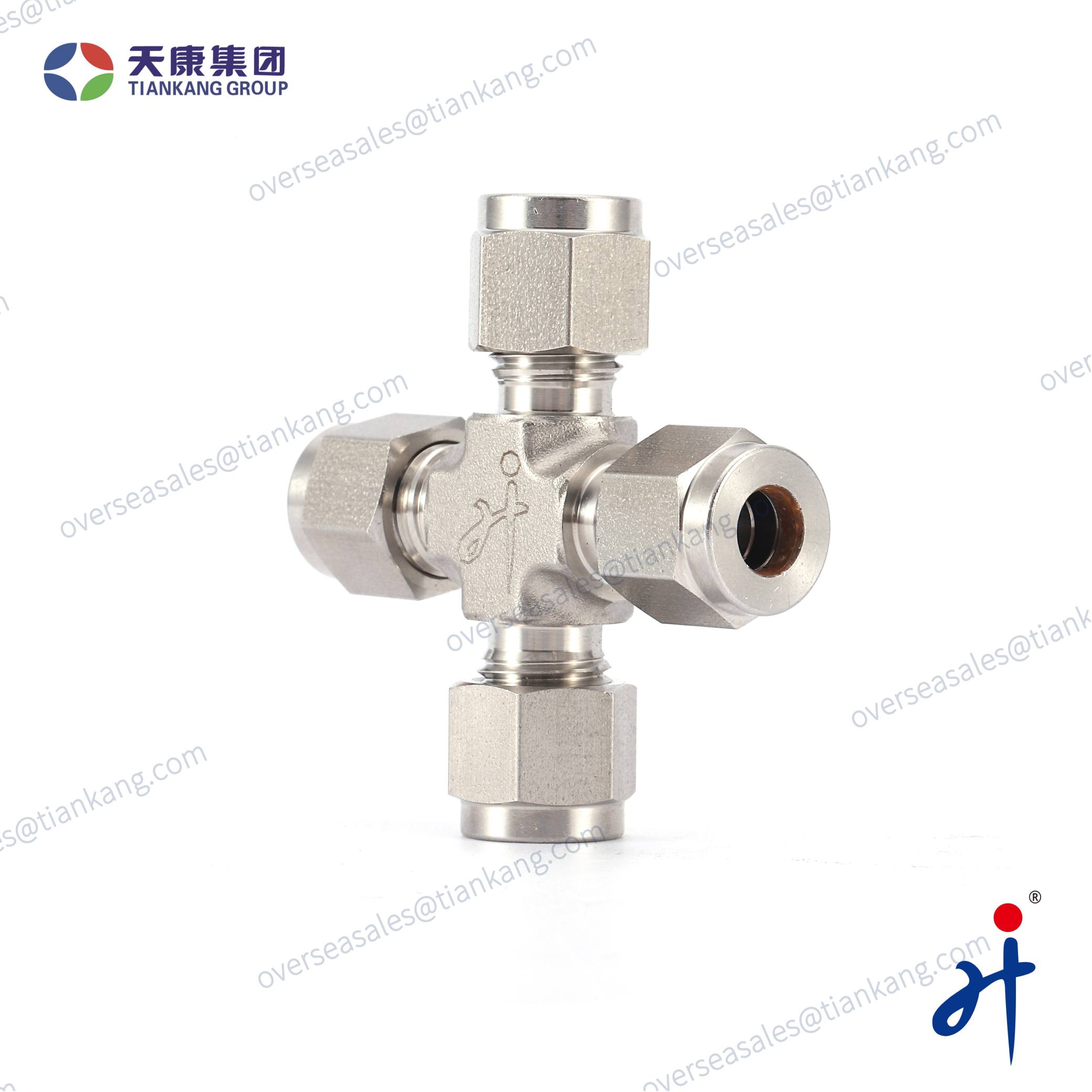

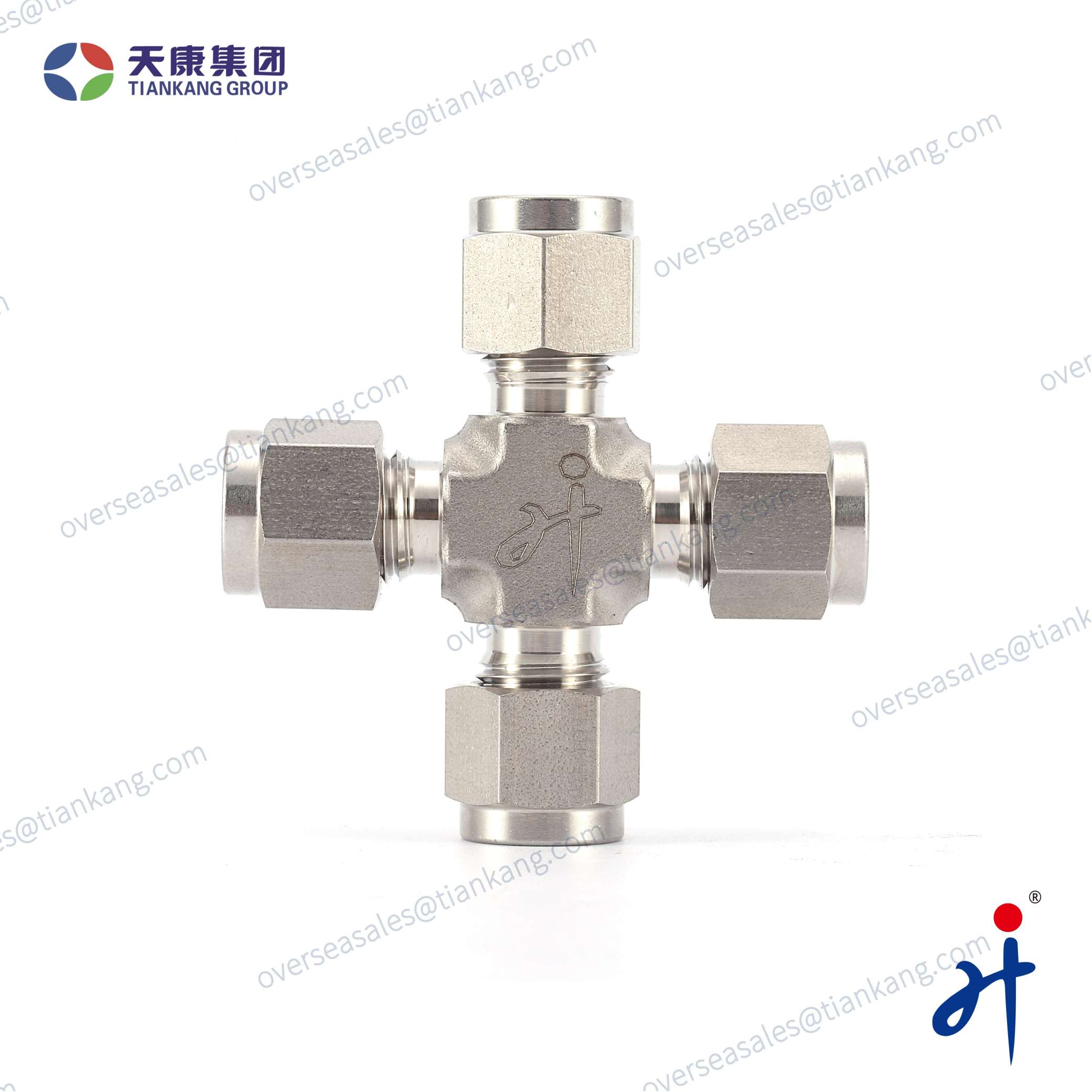

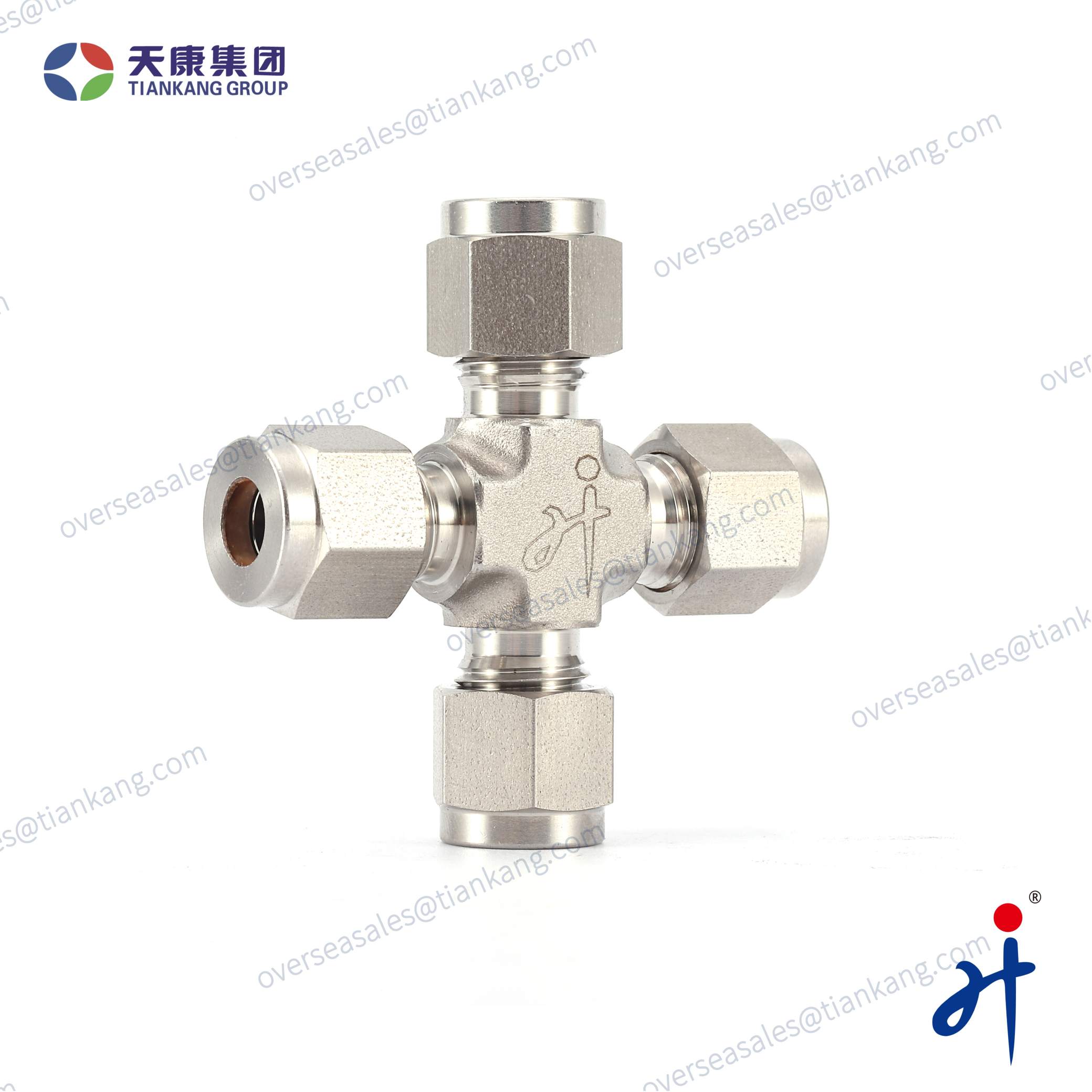

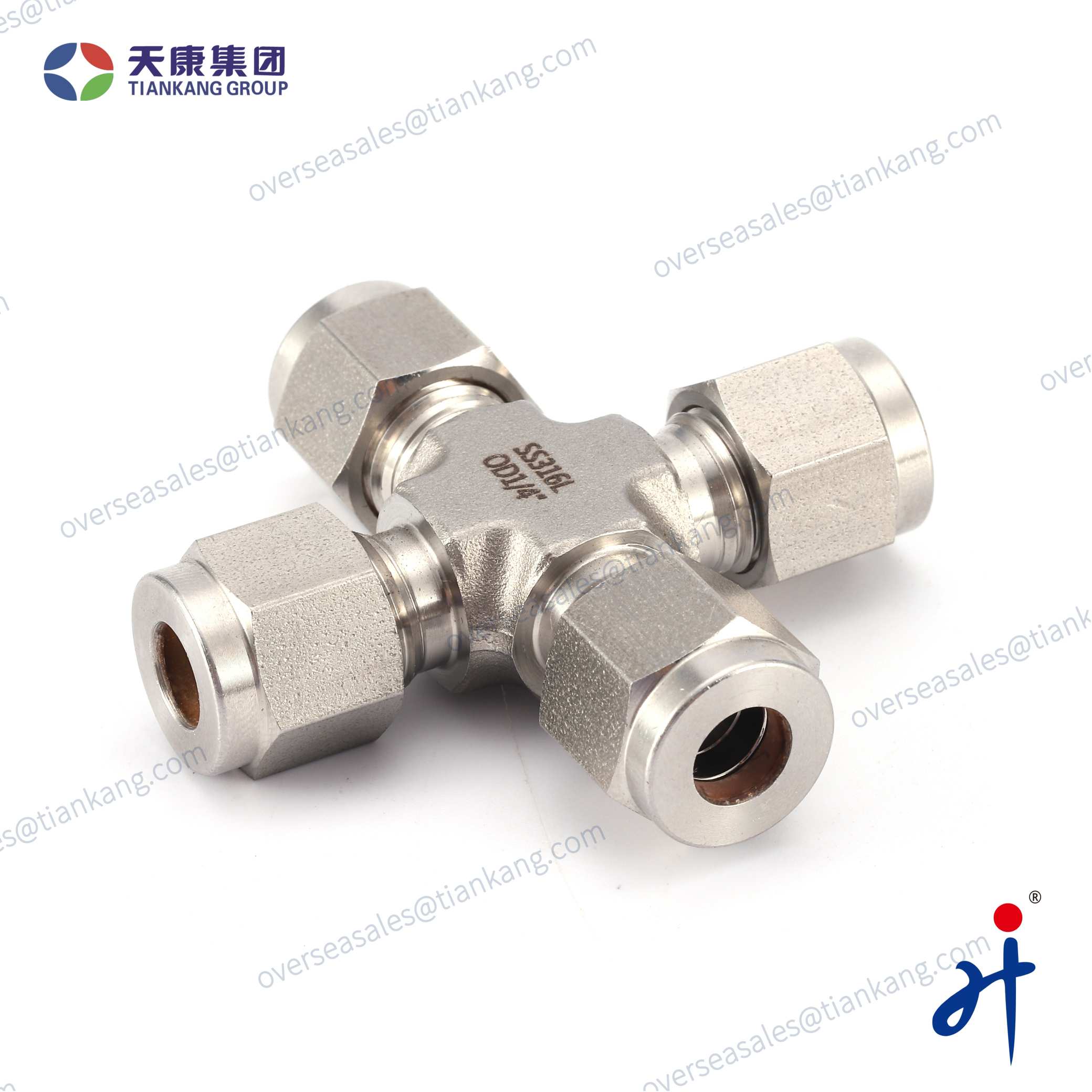

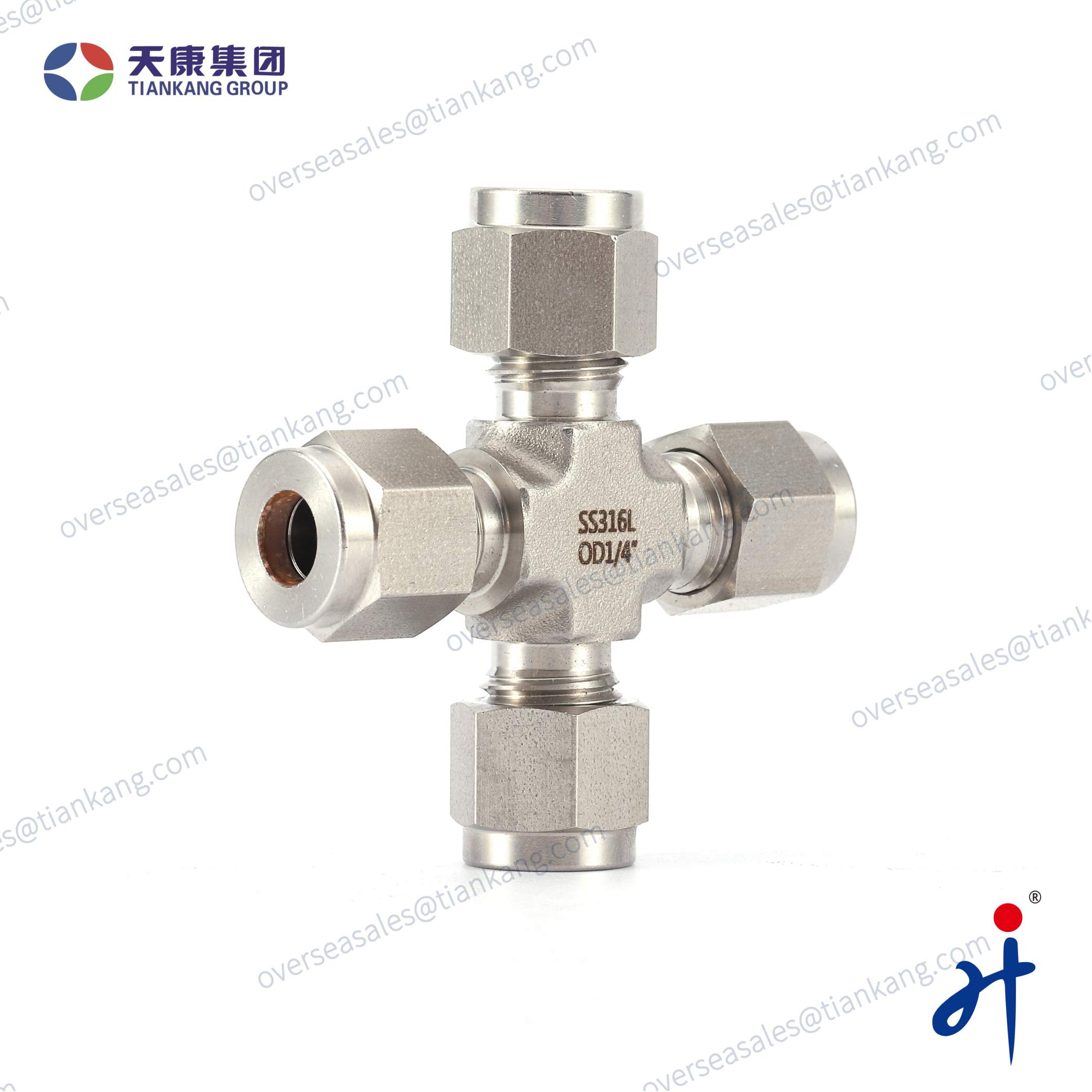

Tiankang Hongji Stainless Steel Union Crosses Tube Fittings

Tiankang Hongji stainless steel union crosses tube fittings are designed to connect four tubes securely in cross configurations. Made from high-quality stainless steel, they offer excellent corrosion and pressure resistance. These fittings ensure reliable, leak-free connections and easy installation. Ideal for chemical, petrochemical, and instrumentation applications.

Product Details

Overview:

Tiankang Hongji cross tube fitting connects four pipes at a central point, widely used in industries like chemical processing, oil and gas, water treatment, and pharmaceuticals. It offers space-saving benefits by consolidating multiple connections in a compact design, making it ideal for tight spaces. The fitting is versatile, allowing fluid to flow in various directions, and is durable, withstanding high pressures and harsh environments.

Specification:

Type	Cross-Type Tube Fitting with Ferrules Connection	Net Weight	0.3kg
Body Material	Stainless steel, alloy, etc.	Manufacturing Capacity	4000 pics/Month
Type of Connection	Tube adapter and thread	Warranty	1 year
Connection 1 Dimensions	12mm	Connection 1 Type	Ferrule
Connection 2 Dimensions	12mm	Connection 2 Type	Ferrule
Connection 3 Dimensions	12mm	Connection 3 Type	Ferrule
Connection 4 Dimensions	12mm	Connection 4 Type	Ferrule

Applications:

Fluid and Gas Systems: Used to connect various pipe sizes and hoses in fluid and gas transport systems.
Water Treatment: They are used to connect pipes in water distribution and filtration systems.
Oil and Gas Industry: Female adapters help in connecting pipelines and other equipment in oil and gas transport networks.
HVAC Systems: Used for connecting air or water pipes in heating, ventilation, and air conditioning systems.
Chemical Processing: They provide secure connections between pipes carrying chemicals, ensuring safe and efficient fluid transfer.

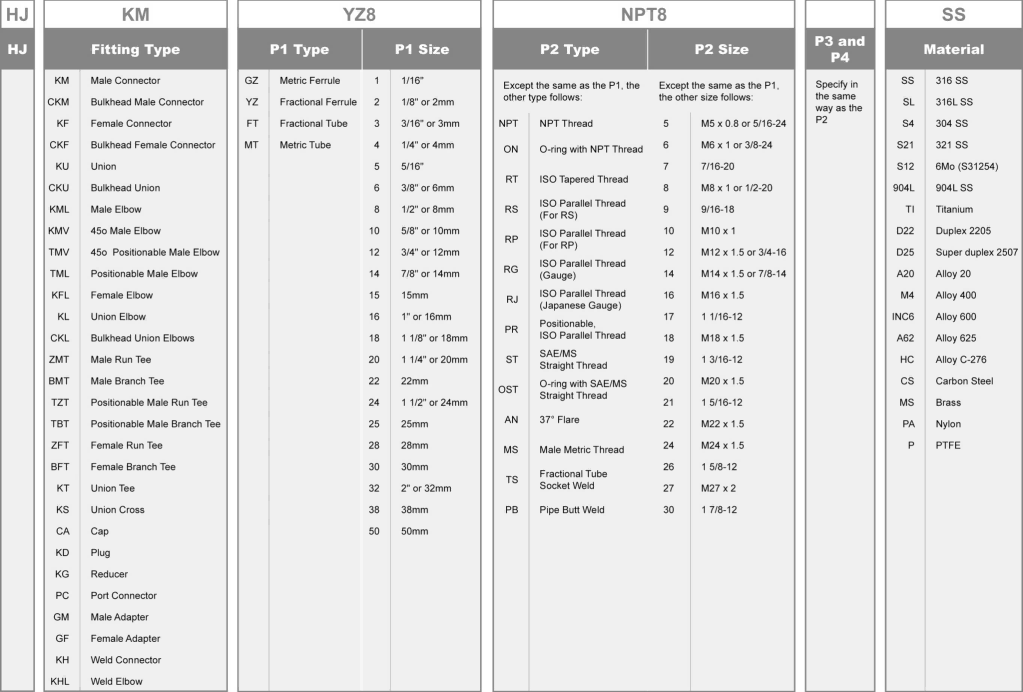

Ordering Number Description:

Note:

P1, P2, P3 and P4 shall be described in the following orders.
Ferrule – Tube – NPT Thread – ISO Tapered Thread – ISO Parallel Thread – SAE/MS Straight Thread – 37o Flare – Pipe Butt Weld – Fractional Tube Socket Weld – Others.
Describe in descending order as per size if the end connection types are the same.
Describe the end of P1 if all end connections are the same.
