Name: Tiankang Hongji Stainless Steel Pipe Plugs Tube Fittings
Availability: InStock

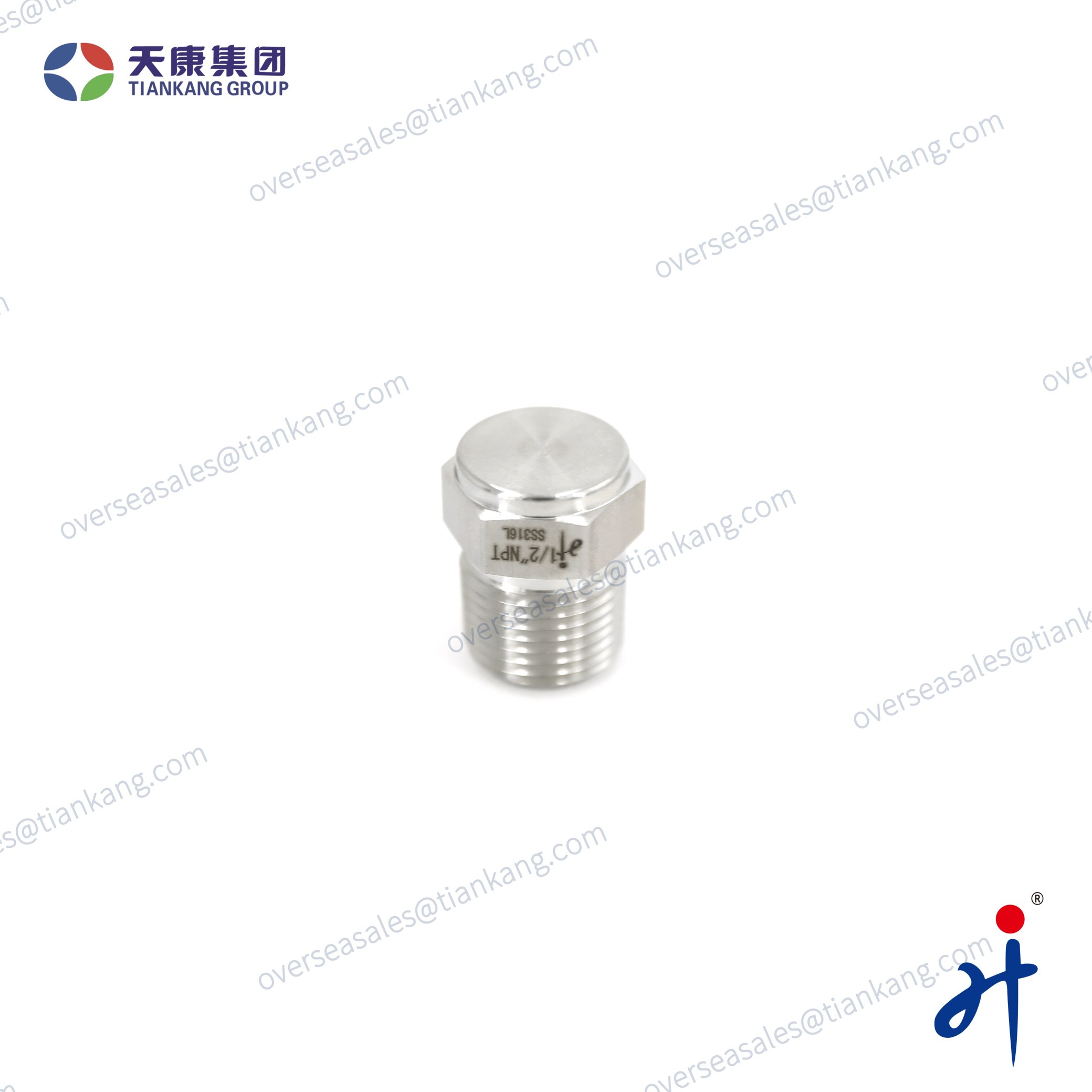

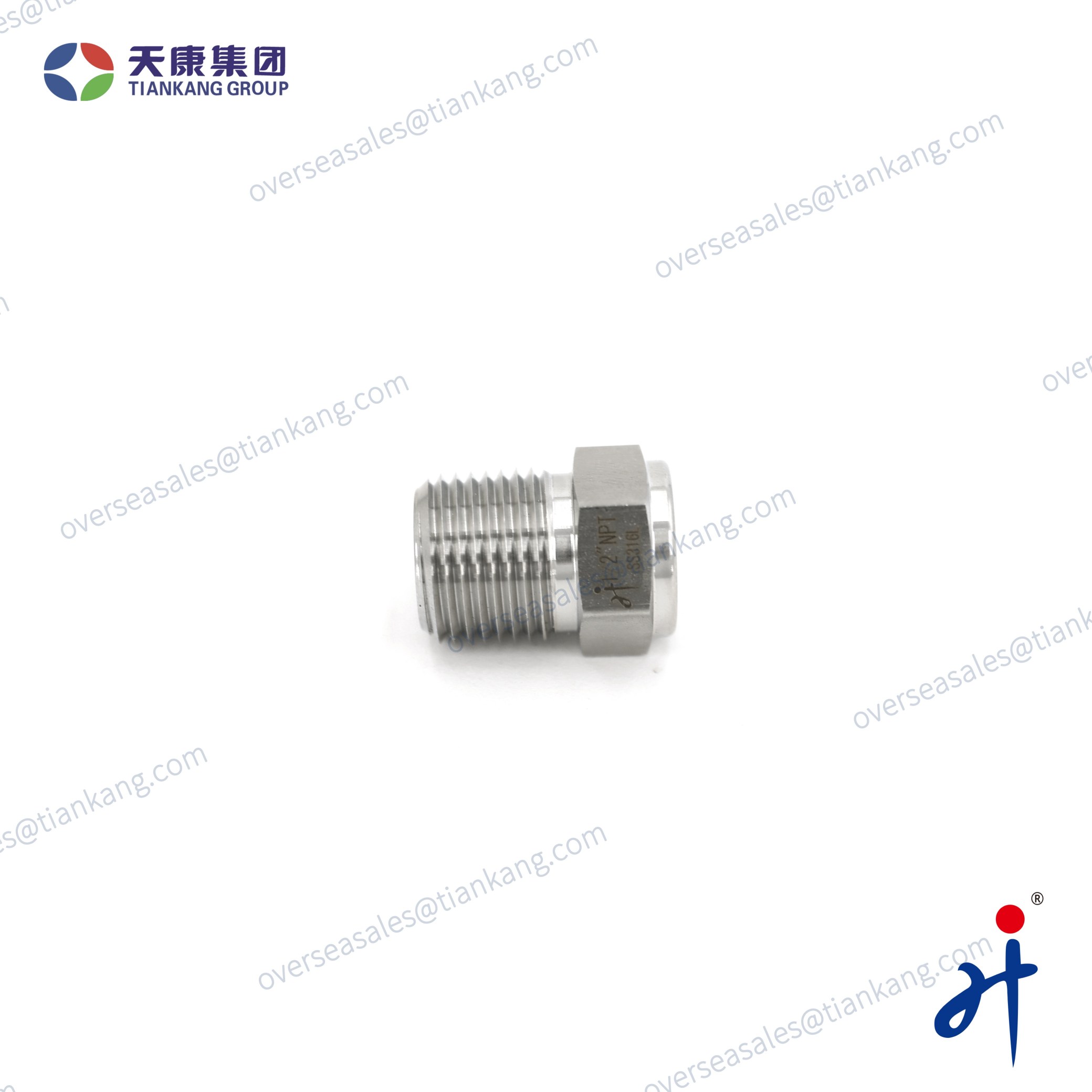

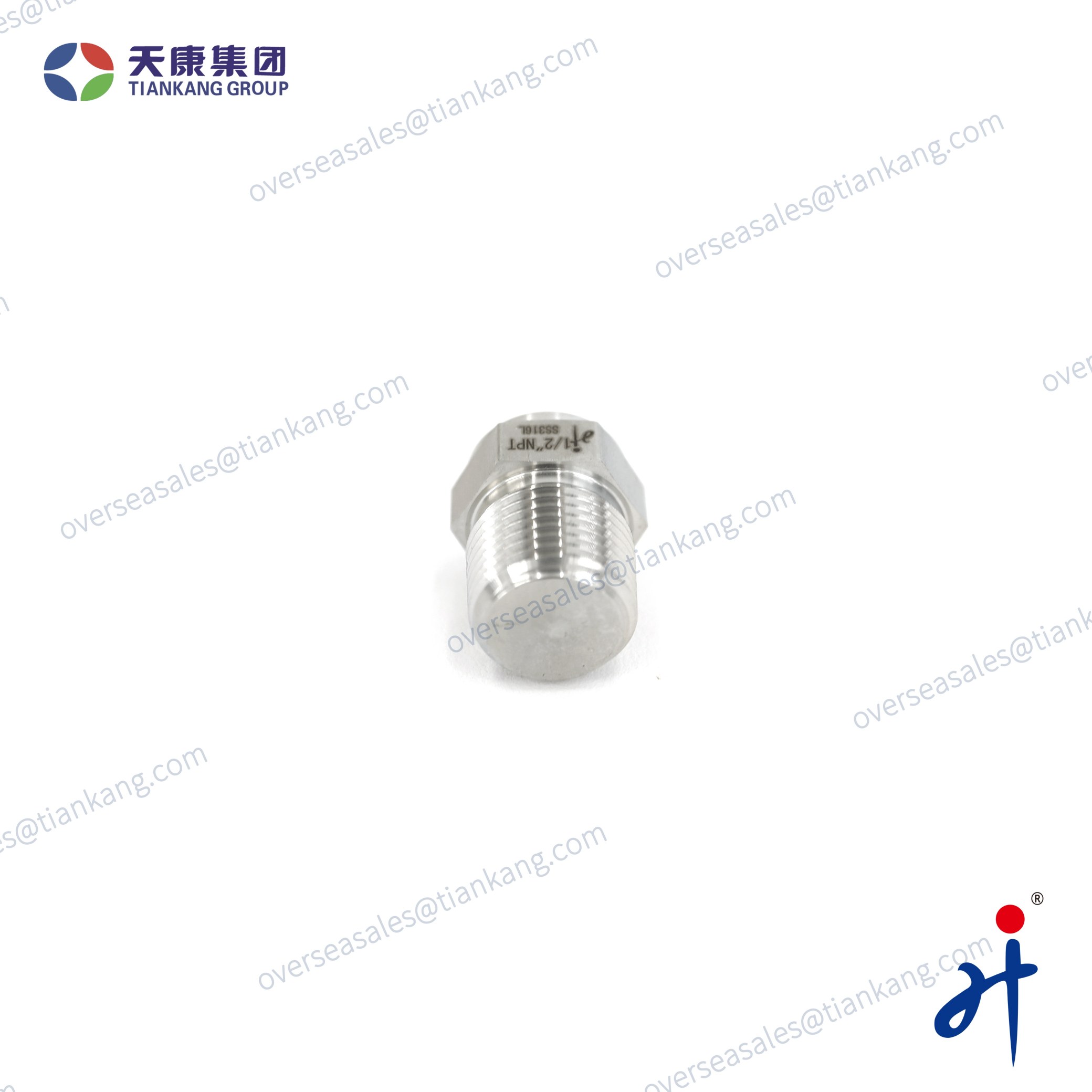

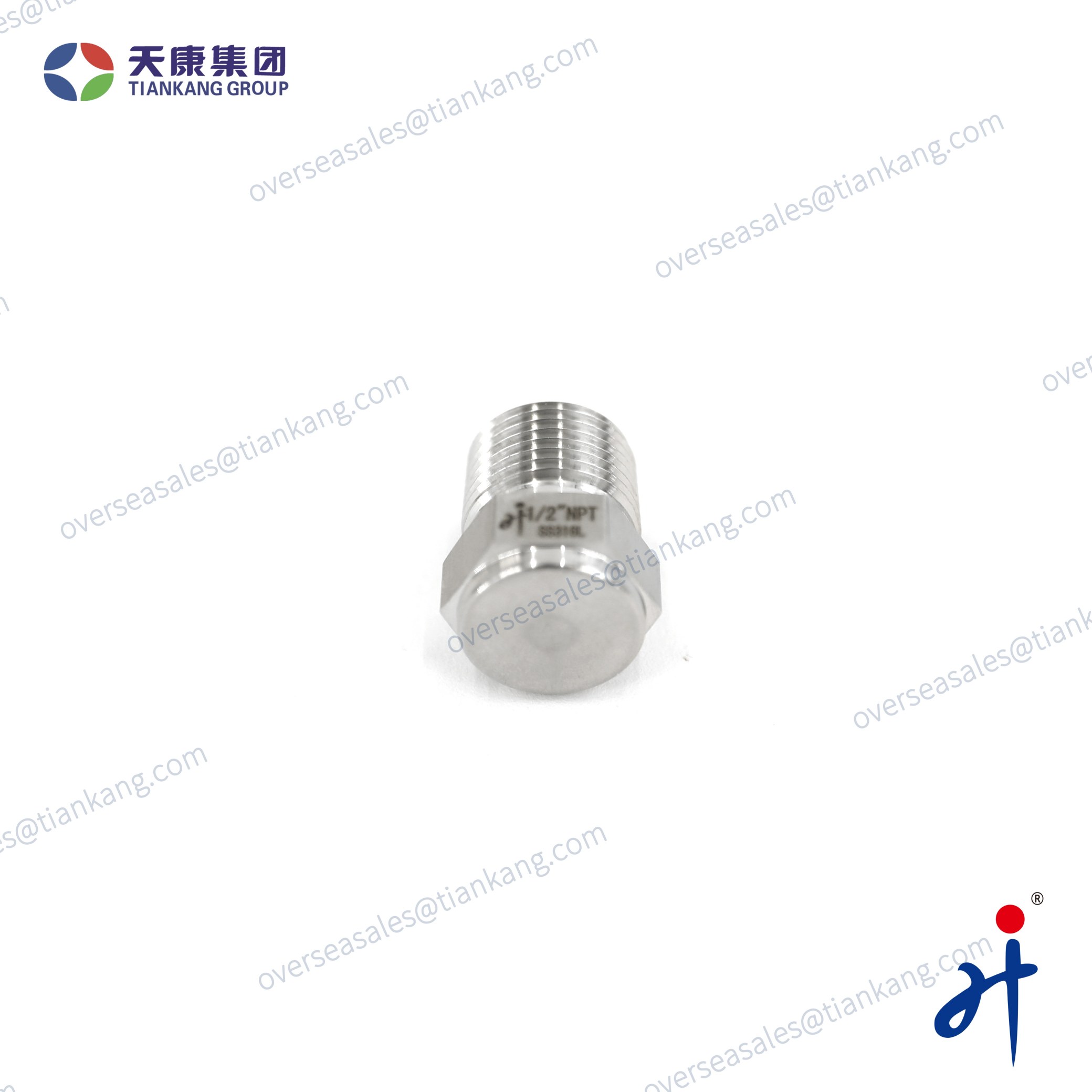

Tiankang Hongji Stainless Steel Pipe Plugs Tube Fittings

The Tiankang Hongji stainless steel pipe plug is a high-quality fitting designed to securely seal pipe ends and prevent leakage in fluid or gas systems. Made from premium-grade stainless steel, it provides excellent resistance to corrosion, high pressure, and extreme temperatures.

Product Details

Overview:

The design of the Tiankang Hongji stainless steel hex pipe plug incorporates Hongji’s unique technology, ensuring safe, reliable sealing while also offering convenient installation and disassembly. They are often used in high-pressure and high-temperature environments, such as in the chemical, petroleum, and natural gas industries.

Technical Specifications:

Type	Hex Pipe Plug	Net Weight	0.02kg
Body Material	Stainless steel, alloy, etc.	Manufacturing Capacity	4000 pics/Month
Type of Connection	Thread	Warranty	1 year
Connection 1 Dimensions	1/2 NPT	Connection 1 Type	Thread

Applications:

• Fluid and Gas Systems: Used to connect various pipe sizes and hoses in fluid and gas transport systems.

• Water Treatment: They are used to connect pipes in water distribution and filtration systems.

• Oil and Gas Industry: Hex Pipe Plug help in connecting pipelines and other equipment in oil and gas transport networks.

• HVAC Systems: Used for connecting air or water pipes in heating, ventilation, and air conditioning systems.

• Chemical Processing: Stainless steel Hex Pipe Plug provide secure connections between pipes carrying chemicals, ensuring safe and efficient fluid transfer.

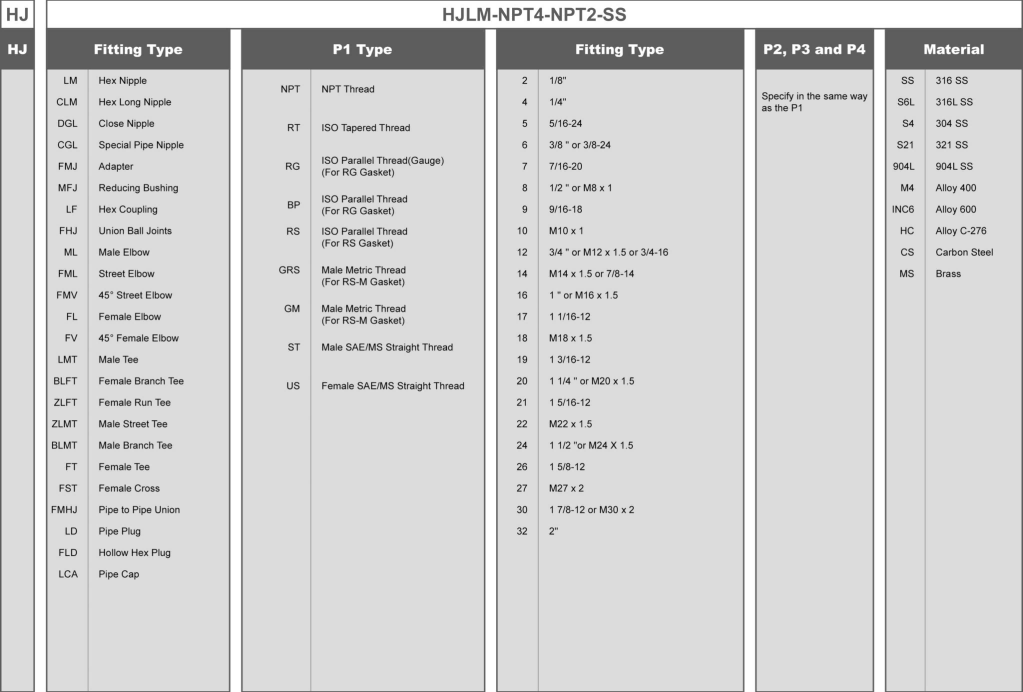

Ordering Number Description:

Note:

P1, P2, P3 and P4 shall be described in the following orders.
Ferrule – Tube – NPT Thread – ISO Tapered Thread – ISO Parallel Thread – SAE/MS Straight Thread – 37o Flare – Pipe Butt Weld – Fractional Tube Socket Weld – Others.
Describe in descending order as per size if the end connection types are the same.
Describe the end of P1 if all end connections are the same.
