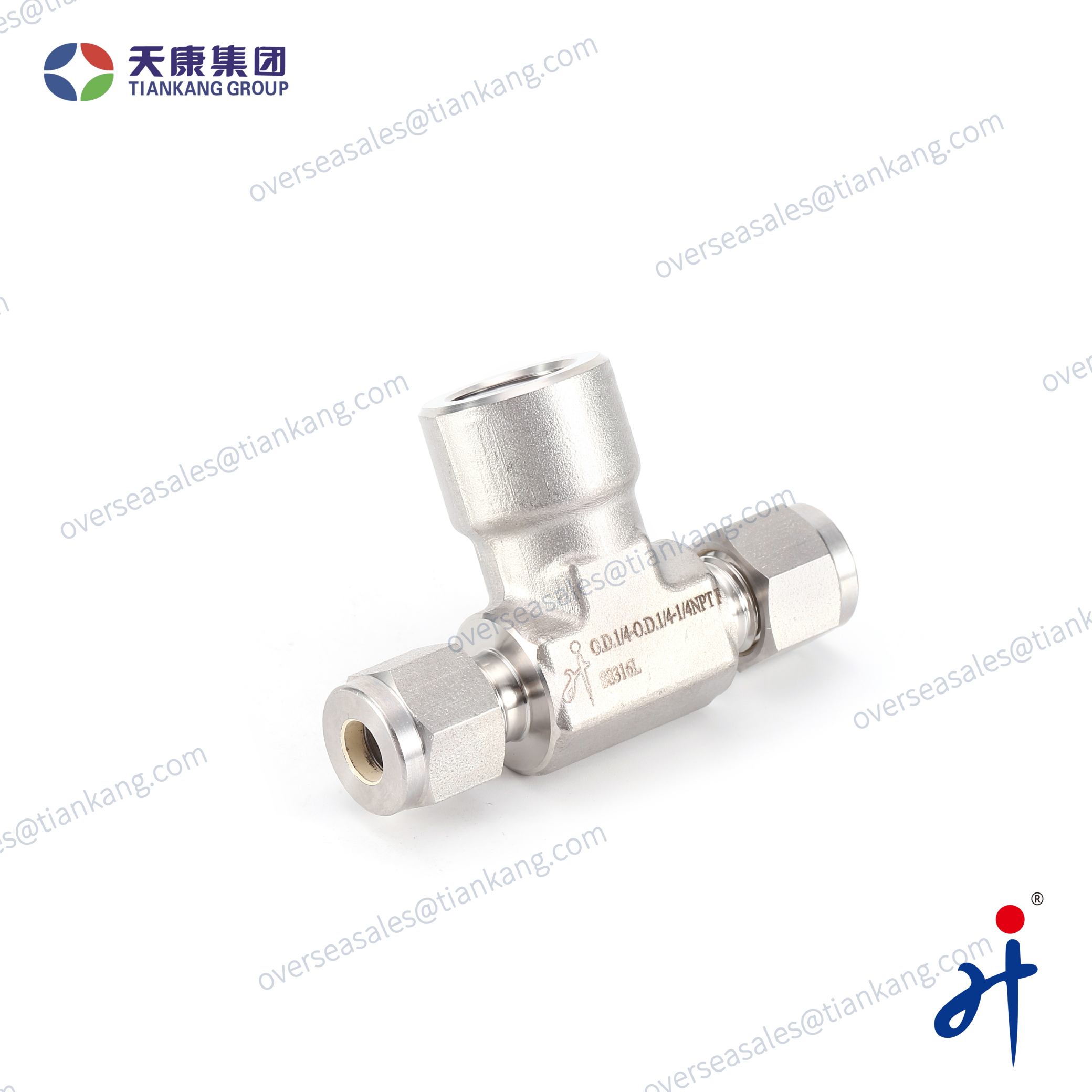

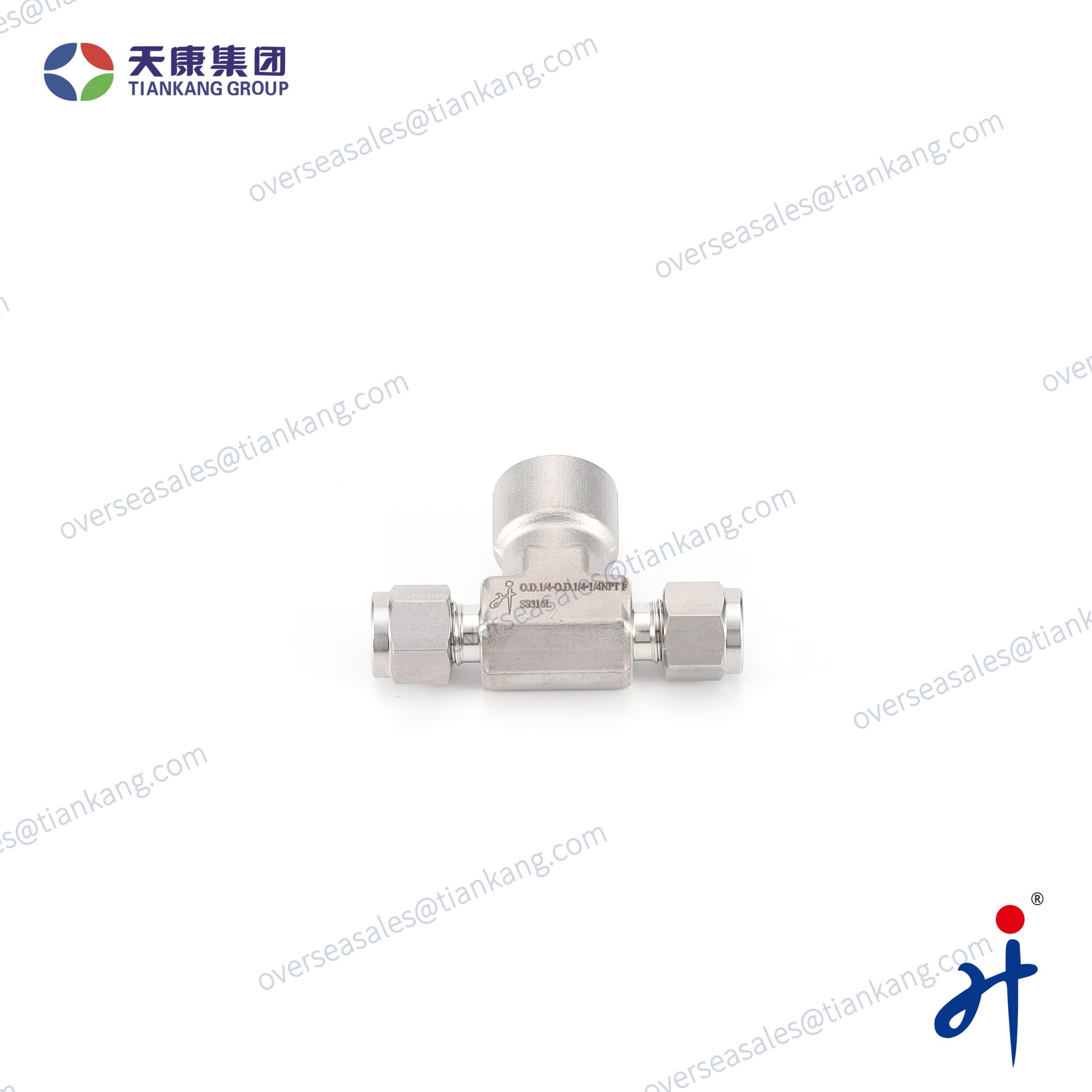

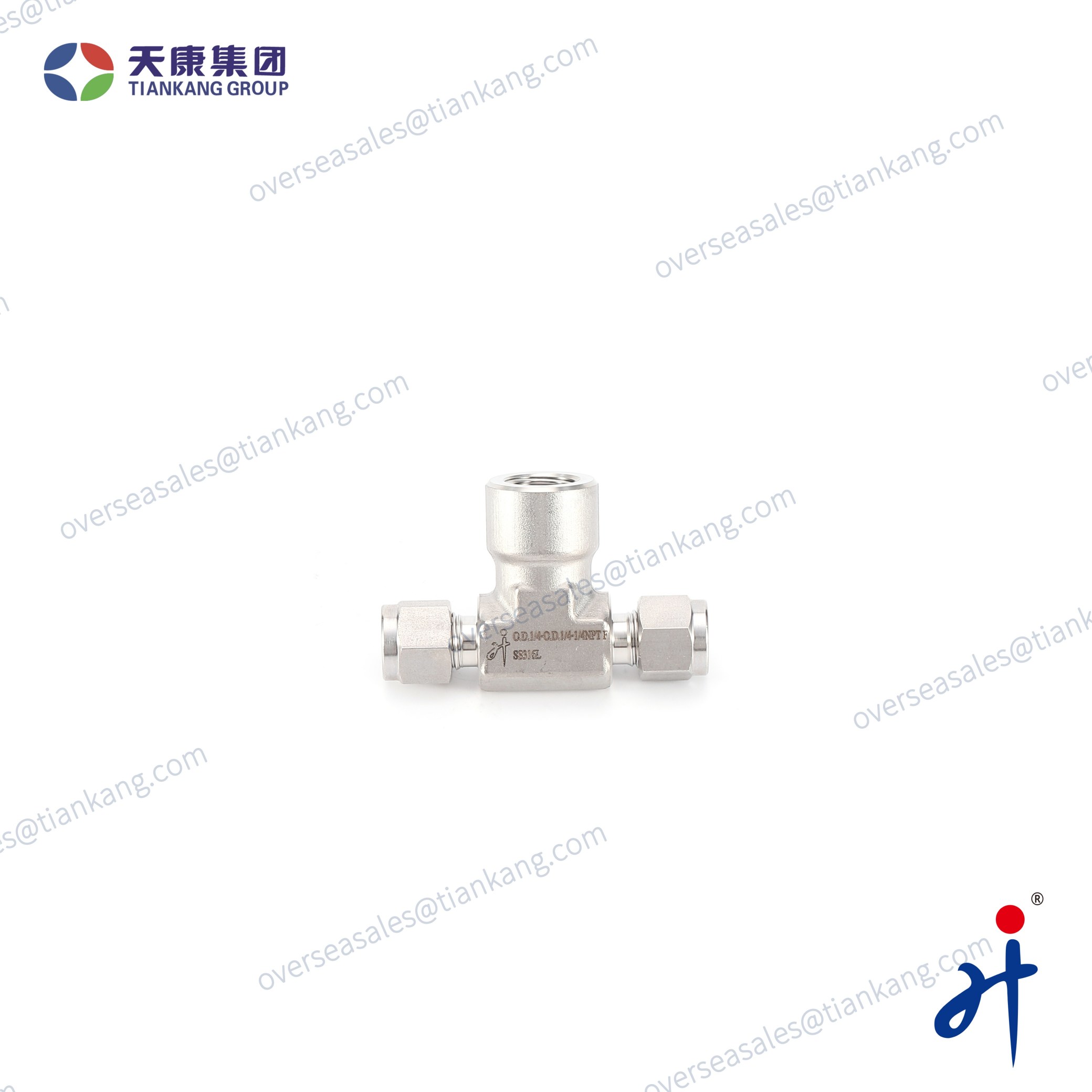

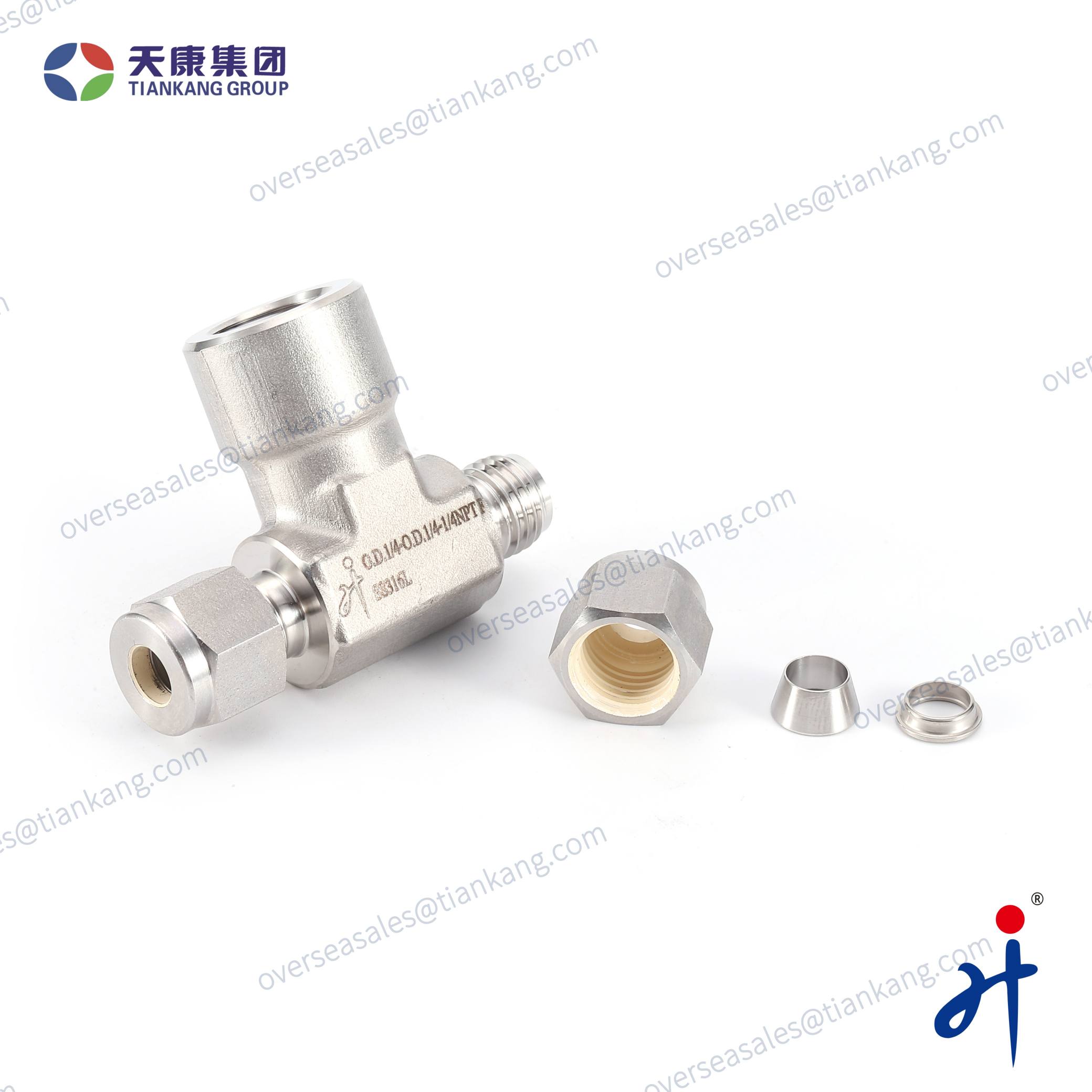

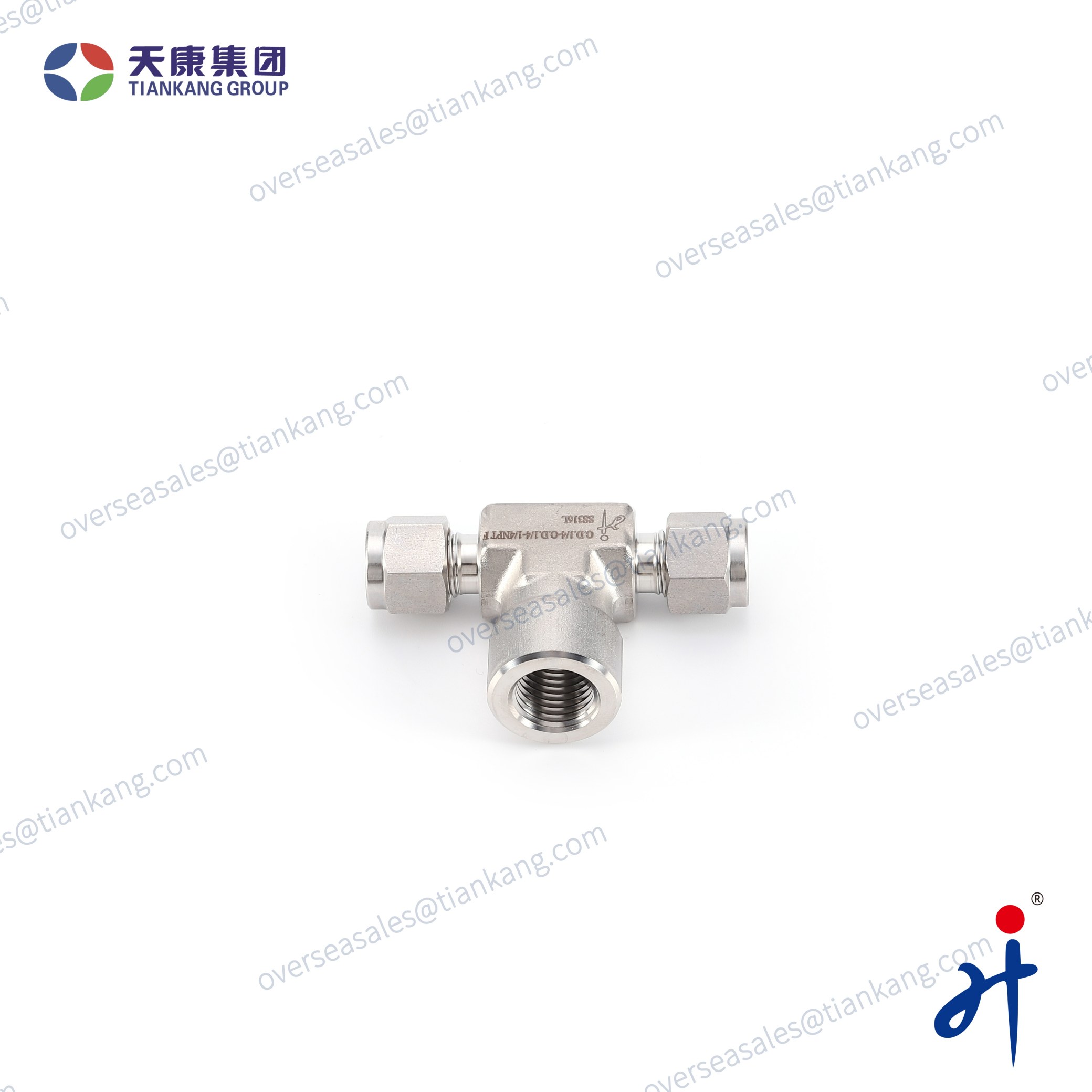

Tiankang Hongji stainless steel female branch tees tube fittings used to connect three pipes together. It features compression fittings on two ends and a possible threaded connection in the middle, often utilized in fluid, gas, or other media systems for distribution or convergence. Known for its corrosion resistance and high strength, this type of fitting is commonly applied in industries like petroleum, chemical, and gas transport, as well as in laboratory setups.
Overview:
Tiankang Hongji Stainless Steel Female Branch Tees are precision-engineered tube fittings designed for reliable and leak-free connections in industrial fluid and gas systems. Made from high-quality stainless steel, they offer excellent corrosion resistance, high pressure tolerance, and long service life. These fittings ensure consistent performance in applications such as chemical processing, instrumentation, oil and gas, and hydraulic systems, providing easy installation and compatibility with a wide range of tubing standards.
Technical Specifications:
| Type | Female Branch Tees with Ferrules And Thread Connection | Net Weight | 0.2kg |
| Body Material | Stainless steel, alloy, etc. | Manufacturing Capacity | 4000 pics/Month |
| Type of Connection | Ferrule And Thread | Warranty | 1 year |
| Connection 1 Dimensions | 1/8″ | Connection 1 Type | Ferrule |
| Connection 2 Dimensions | 1/8″ | Connection 2 Type | Ferrule |
| Connection 3 Dimensions | 1/8 NPT | Connection 3 Type | Thread |
Applications:
• Fluid and Gas Systems: Used to connect various pipe sizes and hoses in fluid and gas transport systems.
• Water Treatment: They are used to connect pipes in water distribution and filtration systems.
• Oil and Gas Industry: Female branch tees help in connecting pipelines and other equipment in oil and gas transport networks.
• HVAC Systems: Used for connecting air or water pipes in heating, ventilation, and air conditioning systems.
• Chemical Processing: Stainless steel Hex Nipples provide secure connections between pipes carrying chemicals, ensuring safe and efficient fluid transfer.

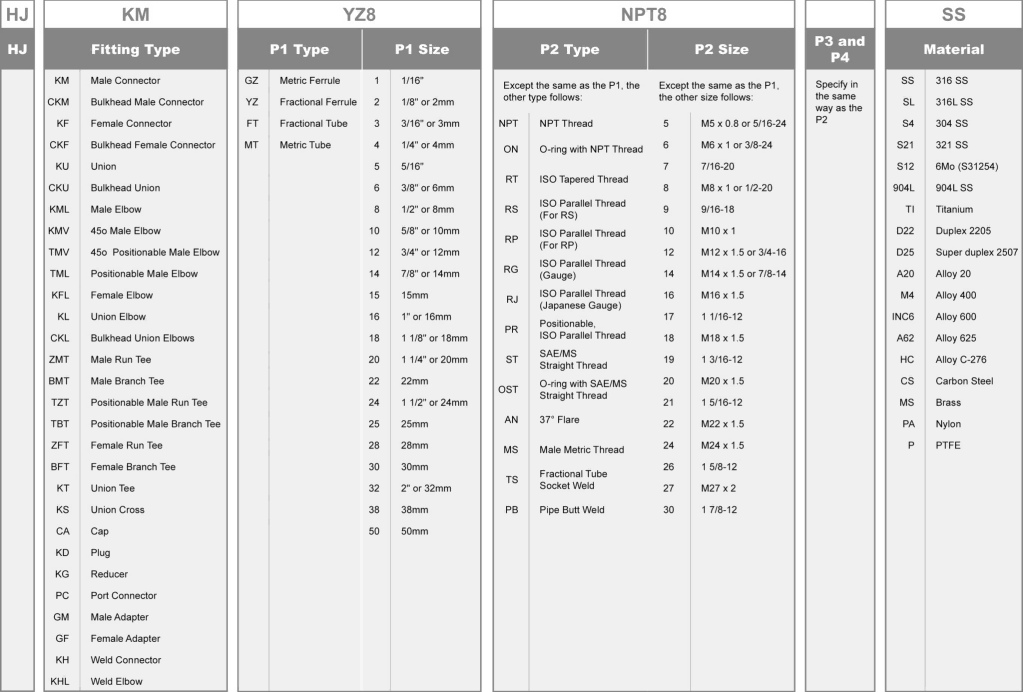

Ordering Number Description:
Note:
1. P1, P2, P3 and P4 shall be described in the following orders.
2. Ferrule – Tube – NPT Thread – ISO Tapered Thread – ISO Parallel Thread – SAE/MS Straight Thread – 37o Flare – Pipe Butt Weld – Fractional Tube Socket Weld – Others.
3. Describe in descending order as per size if the end connection types are the same.
4. Describe the end of P1 if all end connections are the same.
