Name: Tiankang Hongji Stainless Steel Caps Tube Fittings
Availability: InStock

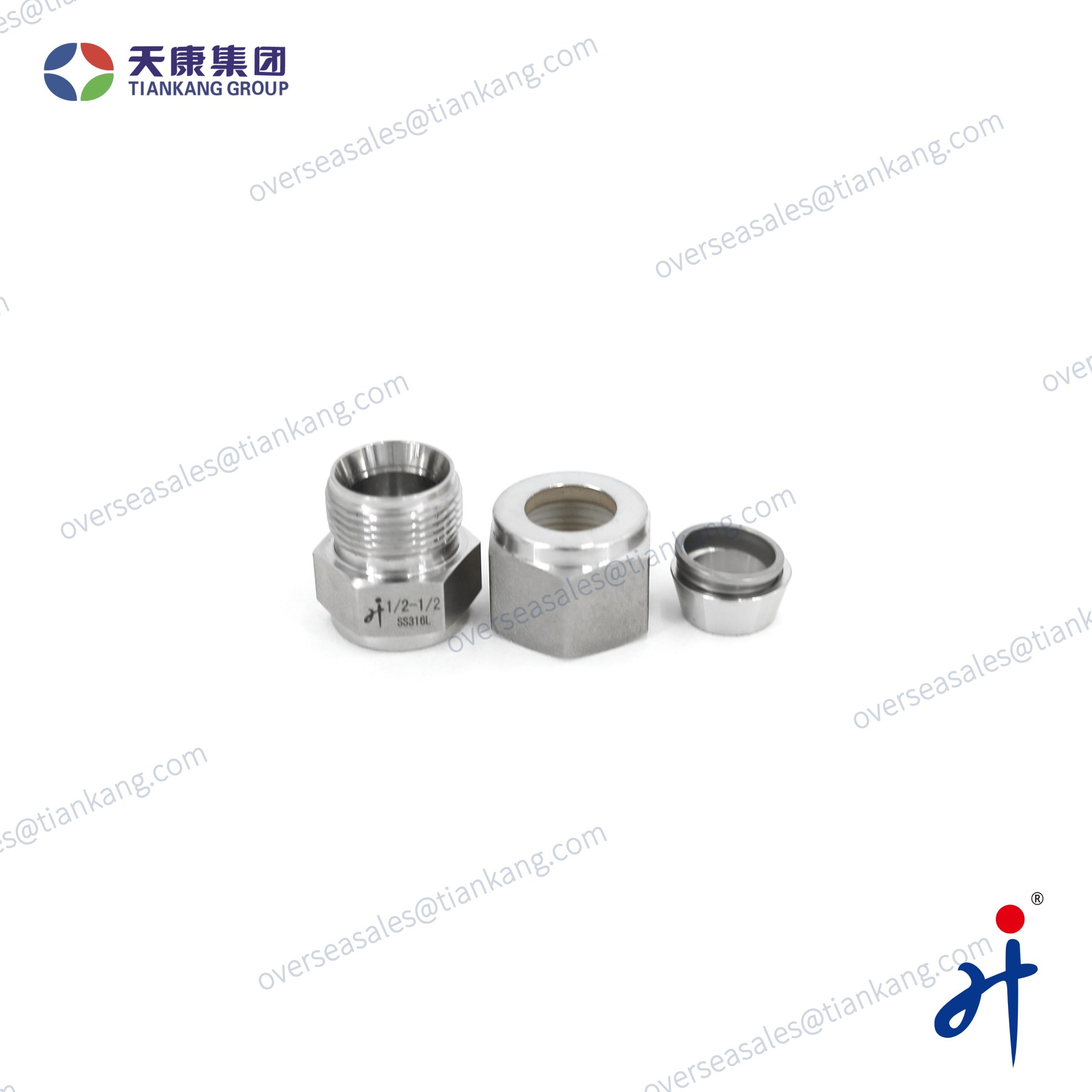

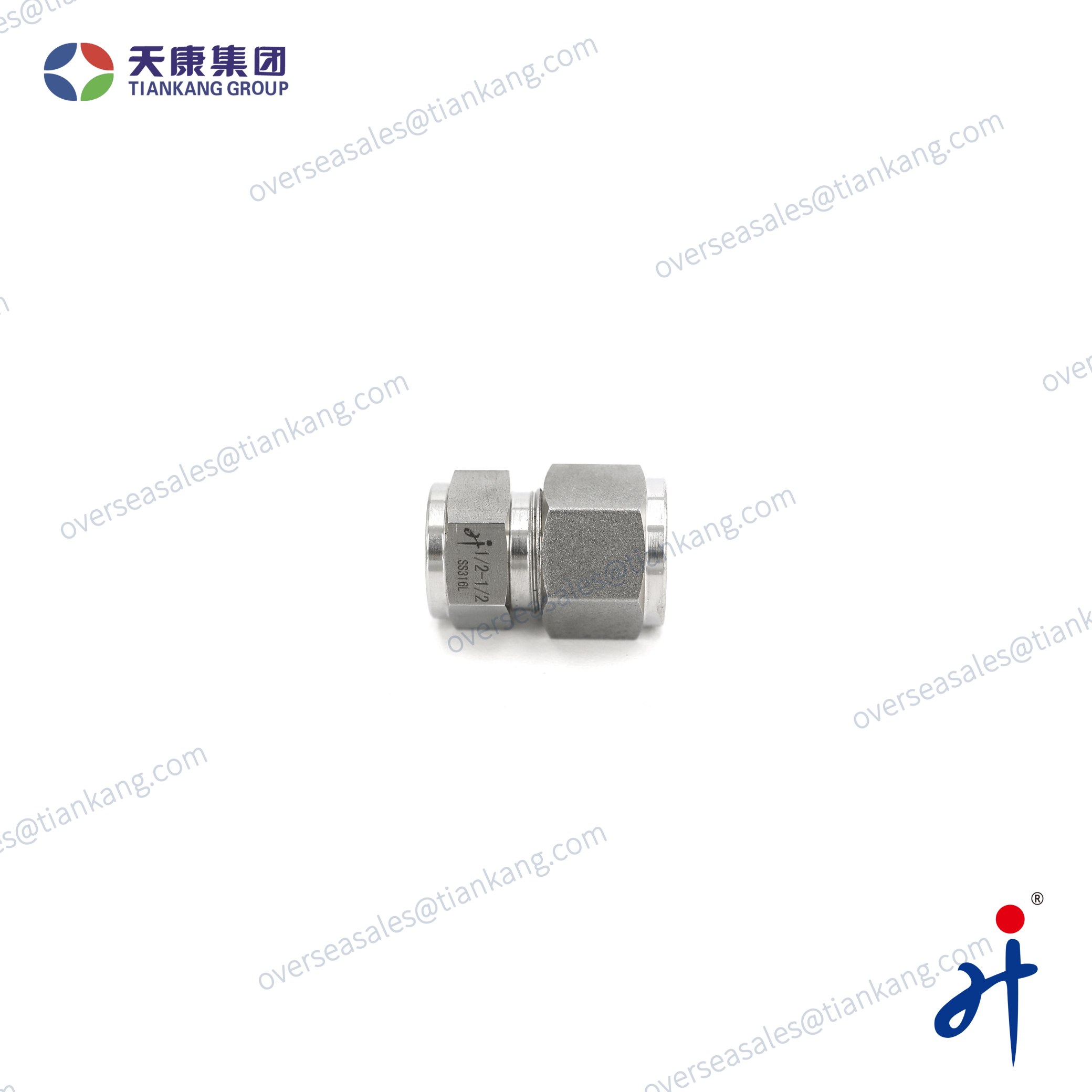

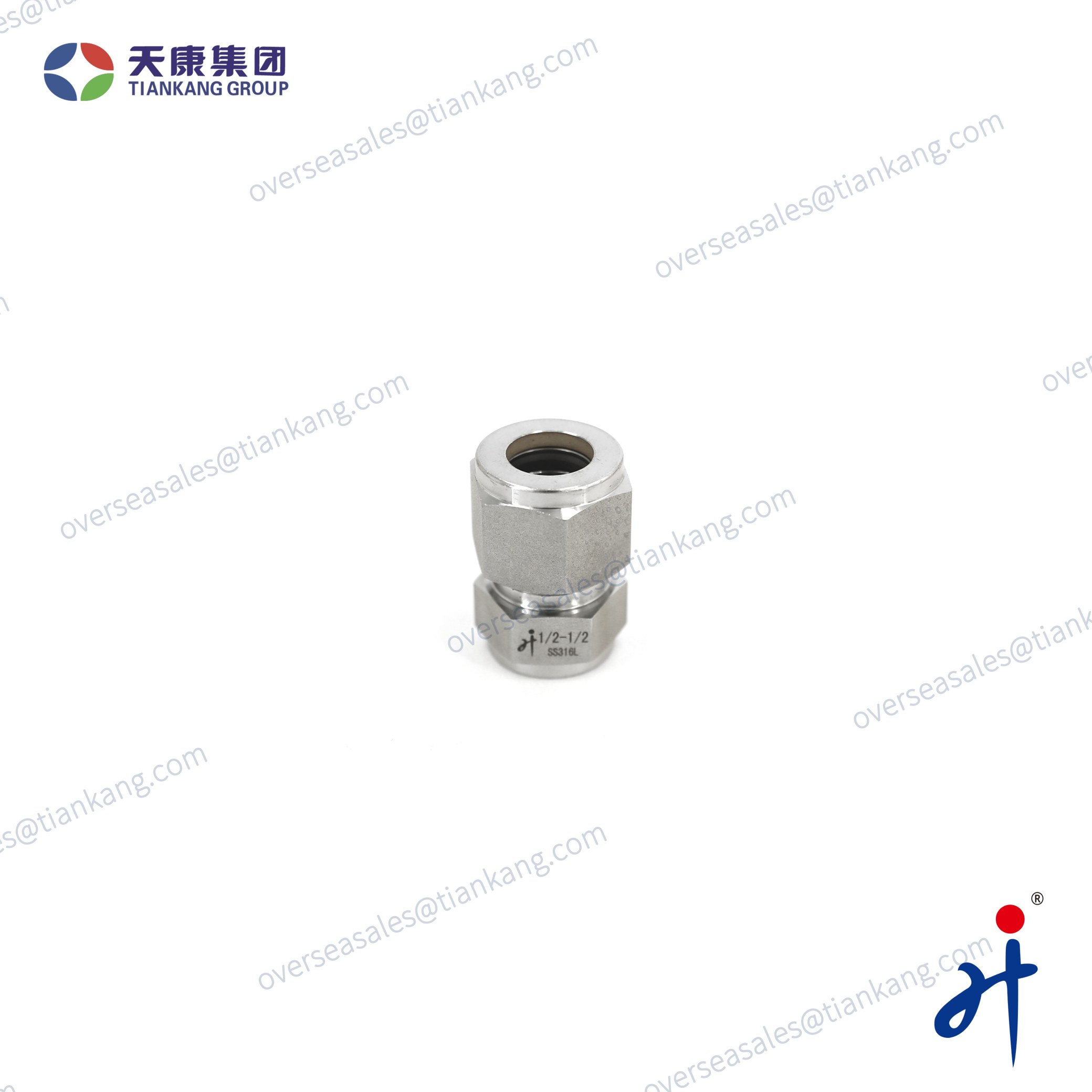

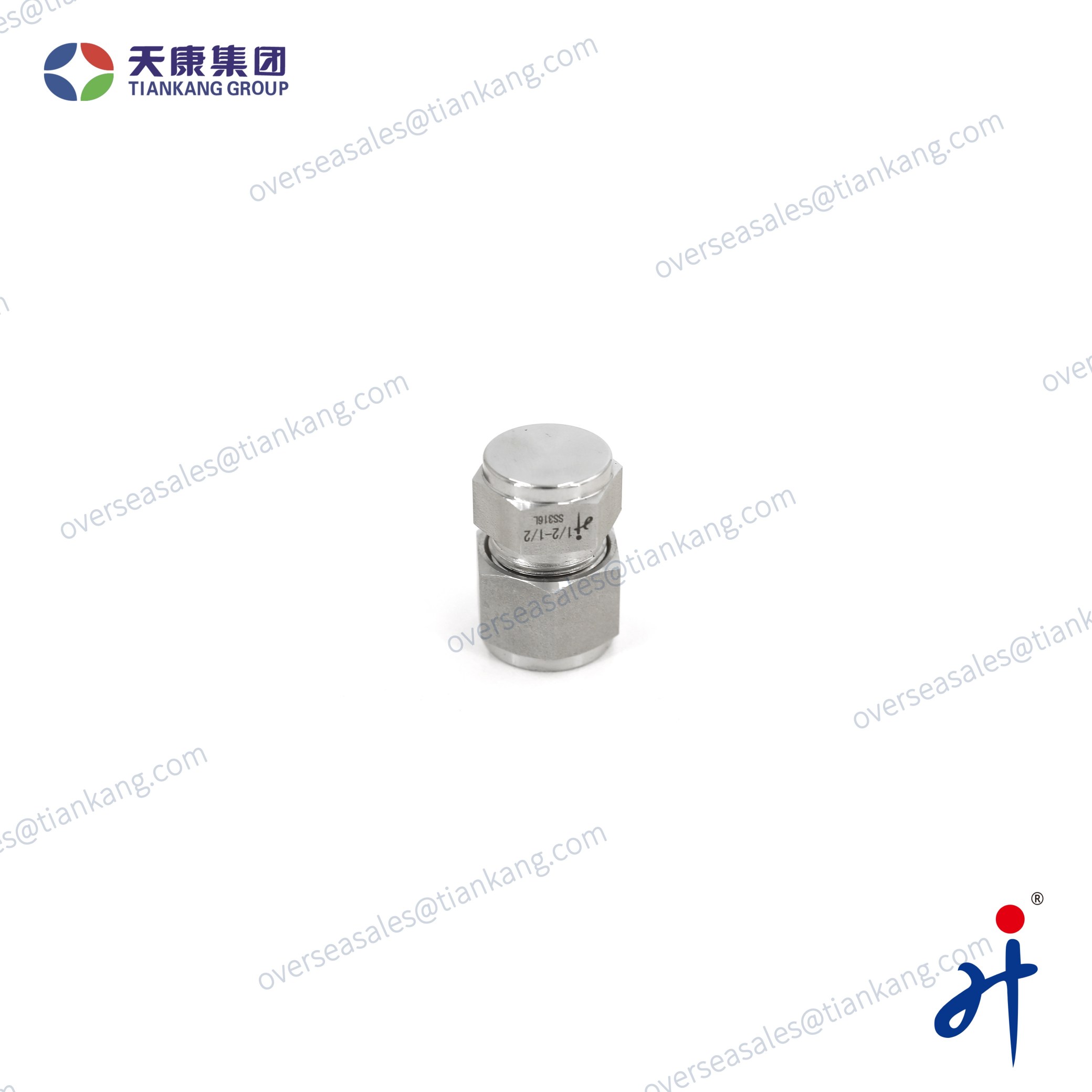

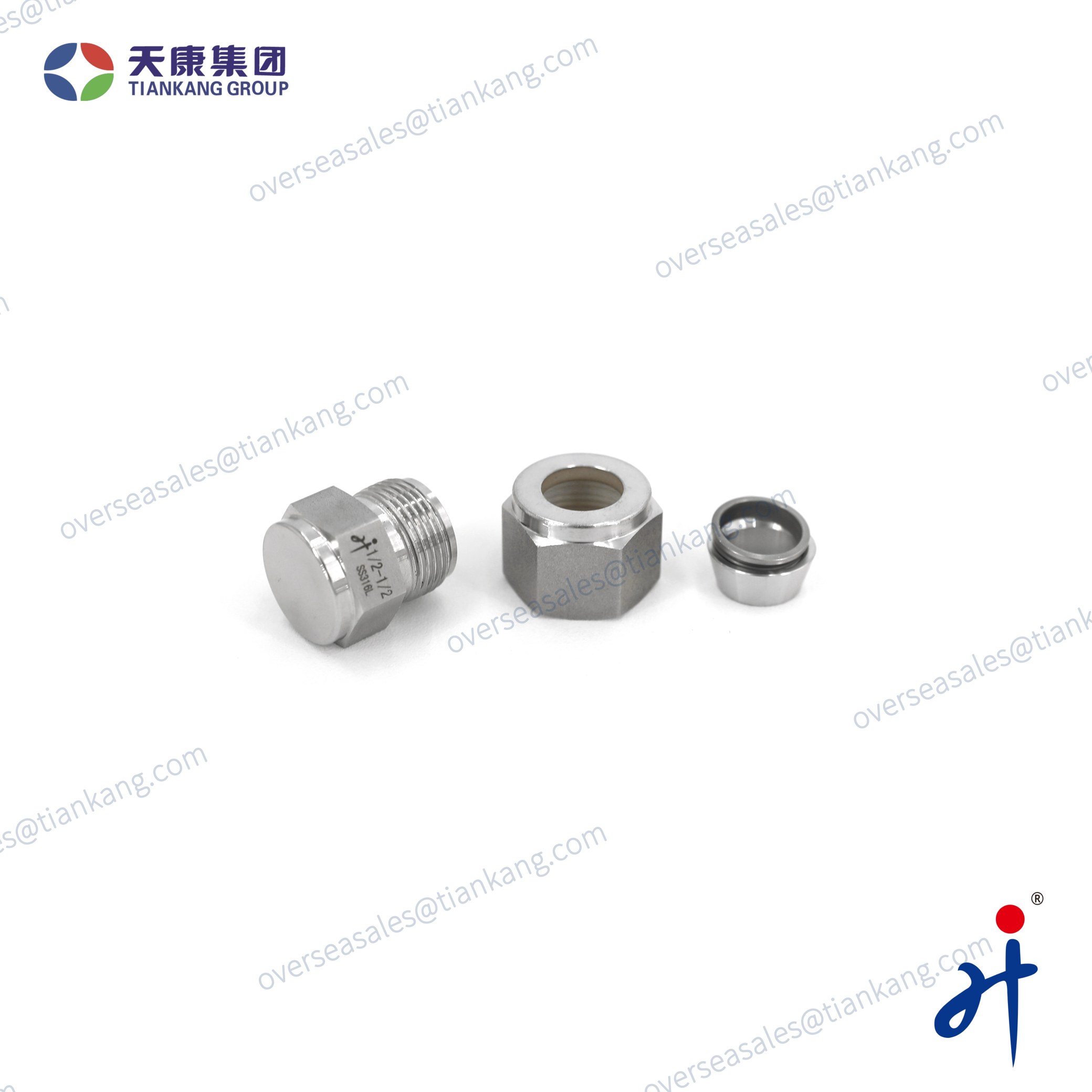

Tiankang Hongji Stainless Steel Caps Tube Fittings

Tiankang Hongji stainless steel caps tube fittings are high-quality end fittings designed for reliable sealing and protection of instrument and process tubing. Manufactured from corrosion-resistant stainless steel, they ensure durability and leak-free performance in demanding industrial environments. Suitable for use in instrumentation, chemical processing, and fluid control systems.

Product Details

Overview:

Tiankang Hongji tube fitting caps are critical in various industries because they offer a reliable way to join different components in piping systems while ensuring pressure and flow stability.Tiankang Hongji tube fitting cap is a type of fitting commonly used to connect pipes, hoses, or tubes in a system. Tiankang Hongji tube fitting caps have internal threads that allow them to be screwed into male connectors or threaded fittings, creating a secure, leak-proof connection.

Specification:

Type	Caps	Net Weight	0.08kg
Body Material	Stainless steel, alloy, etc.	Manufacturing Capacity	4000 pics/Month
Type of Connection	Ferrule	Warranty	1 year
Connection Dimensions	1/2″	Connection Type	Ferrule

Applications:

Fluid and Gas Systems: Used to connect various pipe sizes and hoses in fluid and gas transport systems.
Water Treatment: They are used to connect pipes in water distribution and filtration systems.
Oil and Gas Industry: Caps help in connecting pipelines and other equipment in oil and gas transport networks.
HVAC Systems: Caps used for connecting air or water pipes in heating, ventilation, and air conditioning systems.
Chemical Processing: They provide secure connections between pipes carrying chemicals, ensuring safe and efficient fluid transfer.

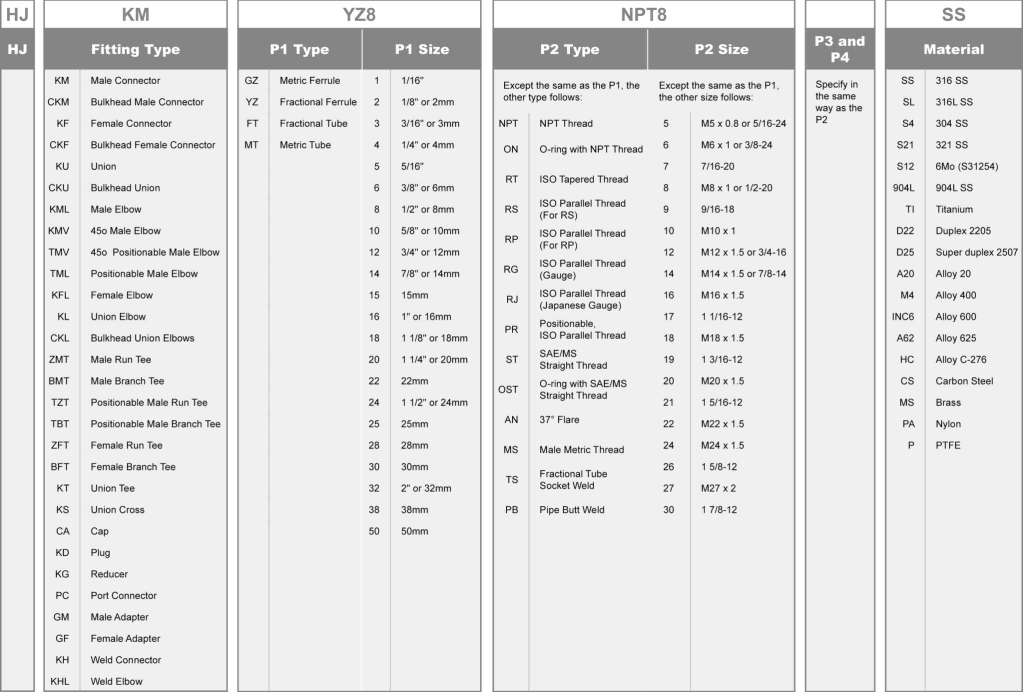

Ordering Number Description:

Note:

P1, P2, P3 and P4 shall be described in the following orders.
Ferrule – Tube – NPT Thread – ISO Tapered Thread – ISO Parallel Thread – SAE/MS Straight Thread – 37o Flare – Pipe Butt Weld – Fractional Tube Socket Weld – Others.
Describe in descending order as per size if the end connection types are the same.
Describe the end of P1 if all end connections are the same.
