Since 1974, a leading temperature instrument manufacturer and a Top 10 wire & cable brand in China.
Tiankang Explosion-proof Thermocouple is usually used in conjunction with display instruments, recording instruments, electronic computers, and so on. Tiankang Explosion-proof Thermocouple measures directly various production processes (0-1300)℃ range of liquid, steam, gas media and solid surface temperature.
Overview
Tiankang Explosion-proof Thermocouple is designed for use in hazardous environments where flammable gases and vapors are present. It incorporates a gap explosion-proof principle, ensuring that all components that could produce sparks or arcs are sealed within a robust junction box. Tiankang Explosion-proof Thermocouple is suitable for a wide range of applications, including measuring liquid and gas temperatures from 0 to 1300°C, and is characterized by its mechanical strength, resistance to vibration, and large measuring range.
Technical Specifications
| Parameters | Specifications |
| Temperature sensing element material |
Nickel-chromium-nickel-silicon Nickel-chromium-copper-chromium Nickel-chromium-silicon-nickel-silicon lron-copper-nickel Copper-copper-nickel Platinum-rhodium 10-platinum |
| Coupling wire pairs | Single branch; Double branch |
| Fixed installation | Flange; Thread |
| Terminal box type | Explosion-proof; Non-explosion proof |
| Protective tube diameter | ∅8; ∅6; ∅16; ∅20 and others |
| Protection degree | IP65; IP66; IP68 |
Applications
Chemical Industry: Monitoring temperatures in processes involving flammable and explosive chemicals, such as reactors and storage tanks.
Wastewater Treatment: Enhancing safety during treatment processes to prevent gas explosions.
Power Generation: Monitoring equipment temperatures in power plants to ensure proper operation and prevent failures.

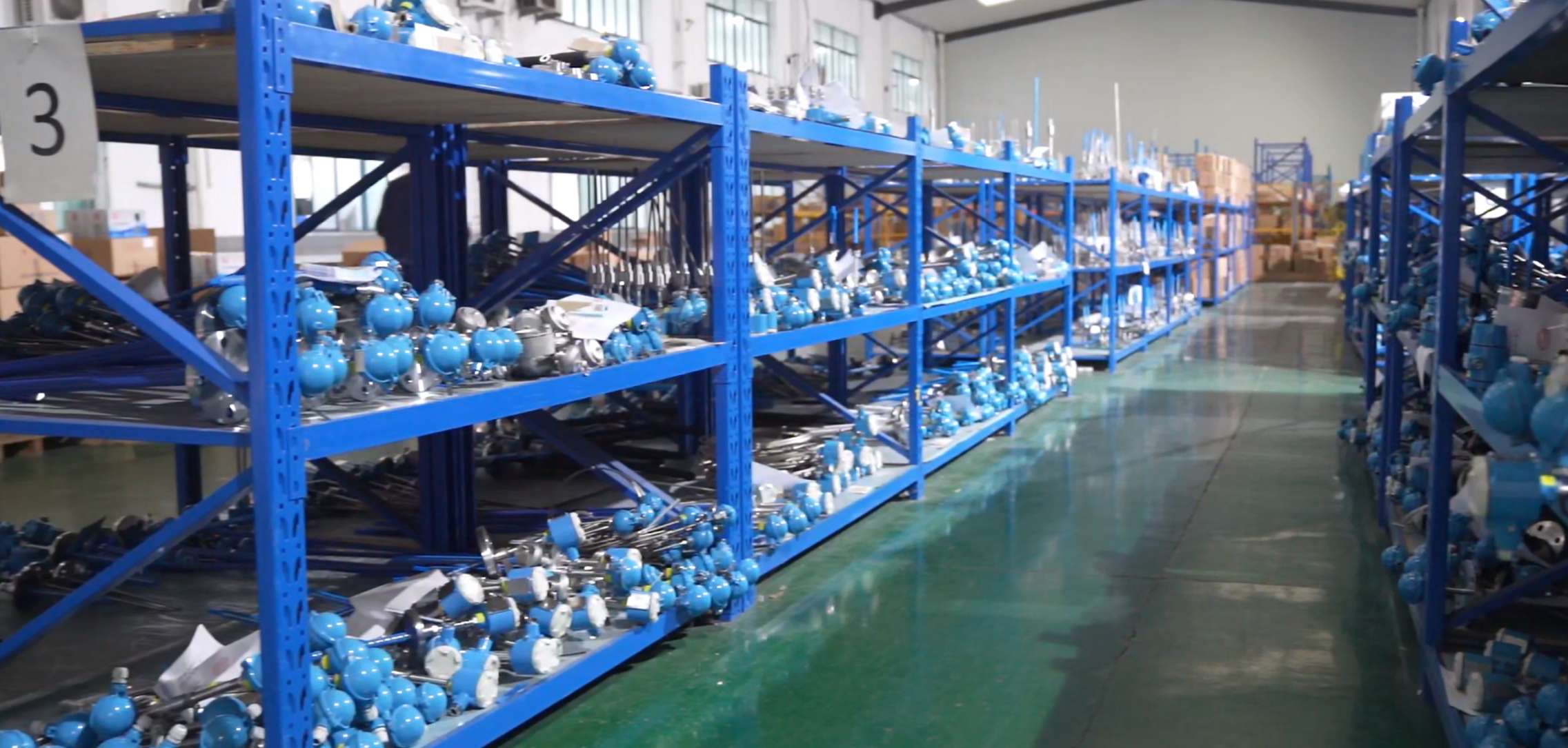

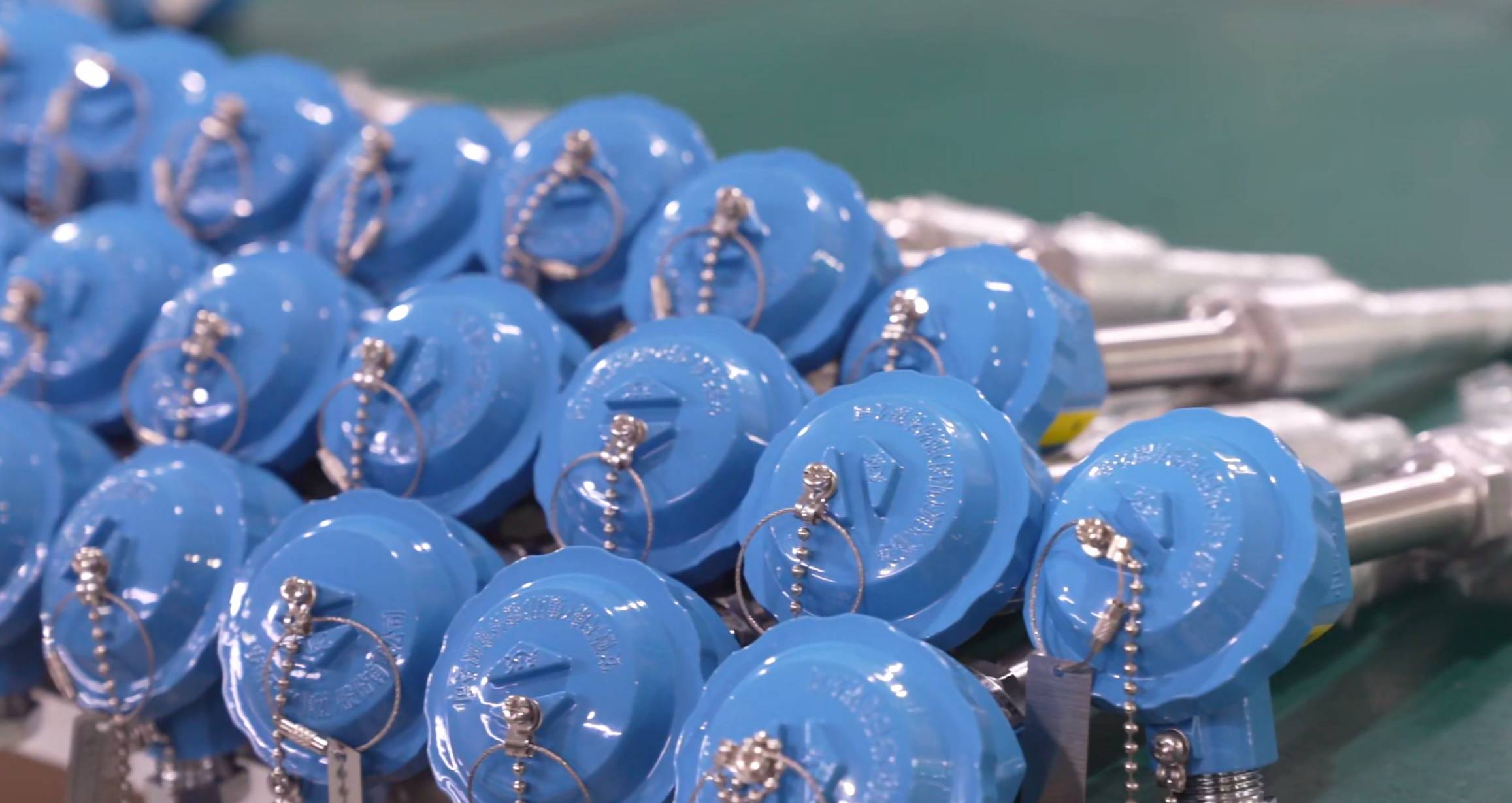

Factory photos
Customization & Technical Support
• E-Mail: overseasales@tiankang.com
Sales Support:
• E-Mail: sales04@tiankanginternational.com
Tiankang Explosion-proof Thermocouple is usually used in conjunction with display instruments, recording instruments, electronic computers, and so on. Tiankang Explosion-proof Thermocouple measures directly various production processes (0-1300)℃ range of liquid, steam, gas media and solid surface temperature.
View More
Tiankang Temperature transmitter is typically used in conjunction with display instruments, recording instruments, and electronic computers. It outputs 4-20mA and directly measures the temperature of liquids, steam, gases, and solid surfaces in the range of -200°C to 1300°C, where explosive substances such as carbon chlorides are present in the production site.
